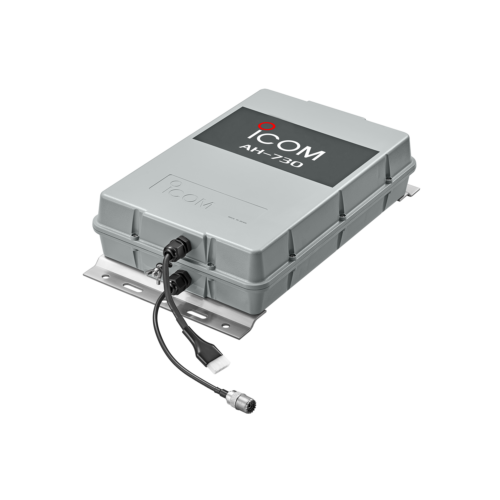

Icom AH-730 Automatic Antenna Tuner

MPN: AH-730

$695.00

Fast Tune-up from 1.8 to 50 MHz Band Remote Control with Icom Transceivers

Out of Stock (On Order)

SKU: IC-AH730 Categories: ,

Wide Frequency Coverage

With a 7 m (23 ft) or longer wire element, all band matching is possible from the 1.8 MHz (160 m) band to the 50 MHz (6 m) band. Efficient for multi-band operation.
* A ground connection is required.

High Speed Tuning

The automatic tuning operation can be made at a high speed of about 2 to 3 seconds. It has 45 memories to store the minimum SWR settings. When re-tuning the same frequency, matching can be achieved in about 1 second.

Minimum RF Output for Tuning

The AH-730 emits only 0.3 W of RF output from the antenna during tuning operation. The low power minimizes the risk of interference to other stations while matching the antenna.

IPX4 Water Resistant

The tuner case uses a high-strength resin which protects internal parts from water, weather, and salt damage. The tuner is tested to IPX4 water splash protection. In addition, the coaxial cable and control cable can be easily connected without opening the case.

NOTE: The AH-730 can be used with most of Icom HF transceiver, which covers HF through 50 MHz bands. However, the IC-706 and IC-736 can only be tuned in the 1.8 ~ 30 MHz range

Weight 6 lbs
Dimensions 14 × 10 × 4 in
Brand

ICOM
Manufacturer Part Number AH-730

Specifications

Icom AH-730 Specs

Tunable frequency range 1.8–54 MHz
（with a 7 m, 23 ft or longer antenna element）
Maximum input power 150 W (PEP)
100 W (Continuous)
Input impedance 50 Ω (SO-239)
Power requirement for tuning 5–15 W (10 W rated)
Tuning time (Approximate) Average: 2–3 seconds
Maximum: 15 seconds
Tuning accuracy VSWR 2.0:1 or less
(except λ/2 of antenna length and its multiples)
Number of tuned memories 45 memories
Power supply requirements 13.8 V DC ±15%
(supplied from transceiver)
Current drain Less than 0.7 A
Operating temperature range –10°C to +60°C; +14°F to +140°F
Dimensions (W × H × D)
(projections not included)		 230 × 80 × 340 mm,
9.1 × 3.1 × 13.4 in
Weight (approximate) 2.5 kg, 5.5 lb
Compatible antennas Long wire and vertical whip antennas

Package Includes

In the Box:

  • AH-730 Automatic Antenna Tuner
  • Control cable (10 m, 32.8 ft)
  • Mounting kit (U-bolts and plates)
  • Weatherproof cap

Compatible Radios

The ICOM AH-730 is compatible with the following radios:

NOTE: The AH-730 can be used with most of Icom HF transceiver, which covers HF through 50 MHz bands. However, the IC-706 and IC-736 can only be tuned in the 1.8 ~ 30 MHz range

Product Guides & Documentation

ICOM AH-730 Instruction Manual
