Yaesu SCU-LAN10 Network Remote Control System

Yaesu SCU-LAN10 Network Remote Control System

MPN: SCU-LAN10

$330.00

Out of Stock (On Order)

SKU: 14935 Categories: ,

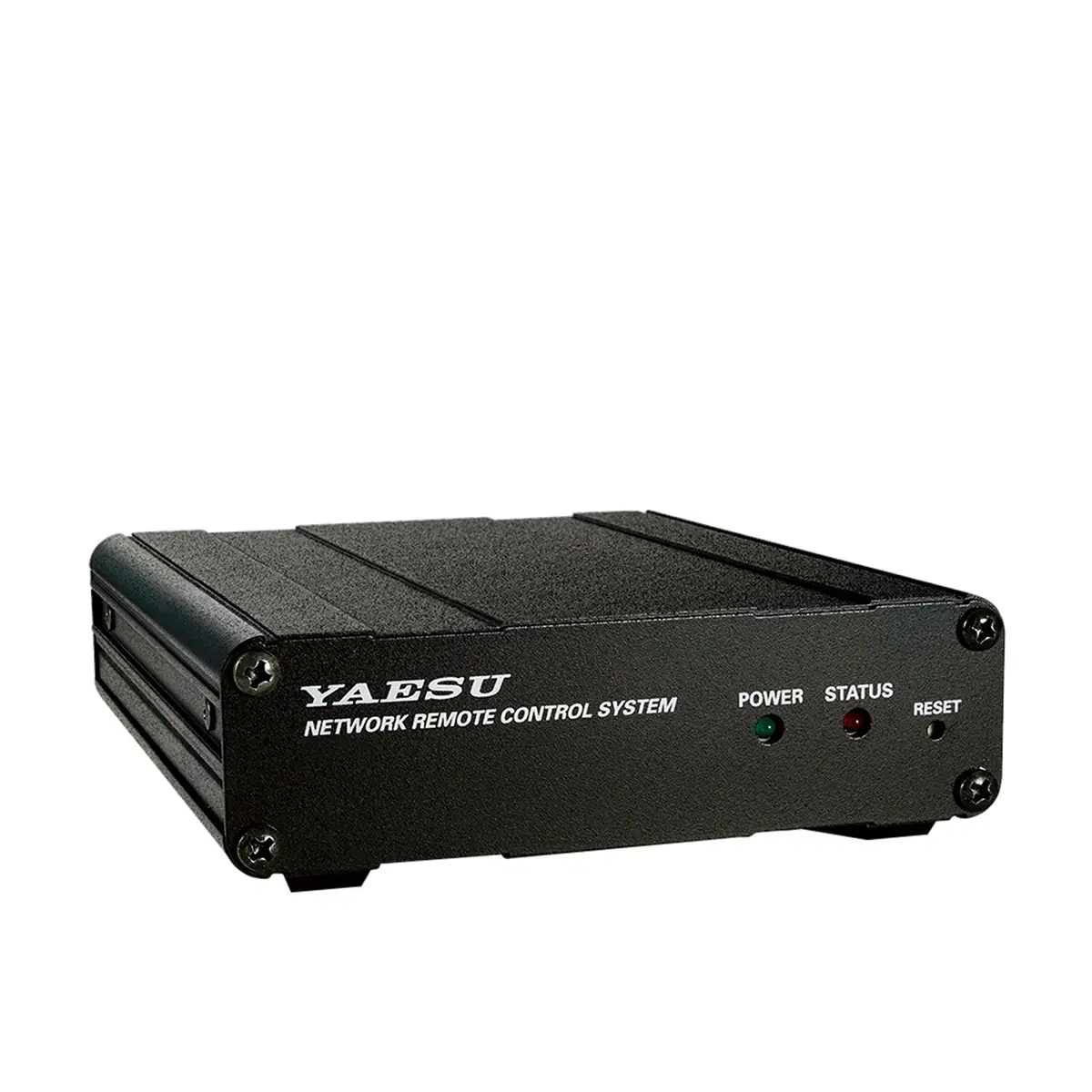

Yaesu SCU-LAN10 Network Remote Control System brings the advanced functionality of Ethernet LAN port direct remote control to the unparalleled FTDX101D, FTDX101MP and FTDX10 Transceivers. All of the excitement of these phenomenal radios is available to any PC, on your local network or via the Internet from anywhere in the world, with the SCU-LAN10 interface units connected to the transceiver and a local network or the Internet.

Each SCU-10LAN unit includes a special 13-pin DIN interface cable, a USB cable and two snap-on ferrite RFI suppressors.

NOTE: A wired LAN port Ethernet router connection is required. Wi-Fi is NOT supported.

Weight 1.2 lbs
Dimensions 6 × 2 × 7 in
Brand

Yaesu
Manufacturer Part Number SCU-LAN10

Specifications

Yaesu SCU-LAN10 Specs

  • Supply Voltage: 13.8 VDC Nominal
  • Operating Voltage: 9 VDC to 15.2 VDC
  • Current Consumption: 800 mA (max)
  • Operating Temp Range: +32F-122F (0C to 50C)
  • Dimensions: (WHD) 4.37 x 1.24 x 5.31 in. (111 x 31.5 x 135 mm)
  • Weight: 0.93 lbs. (420g)
