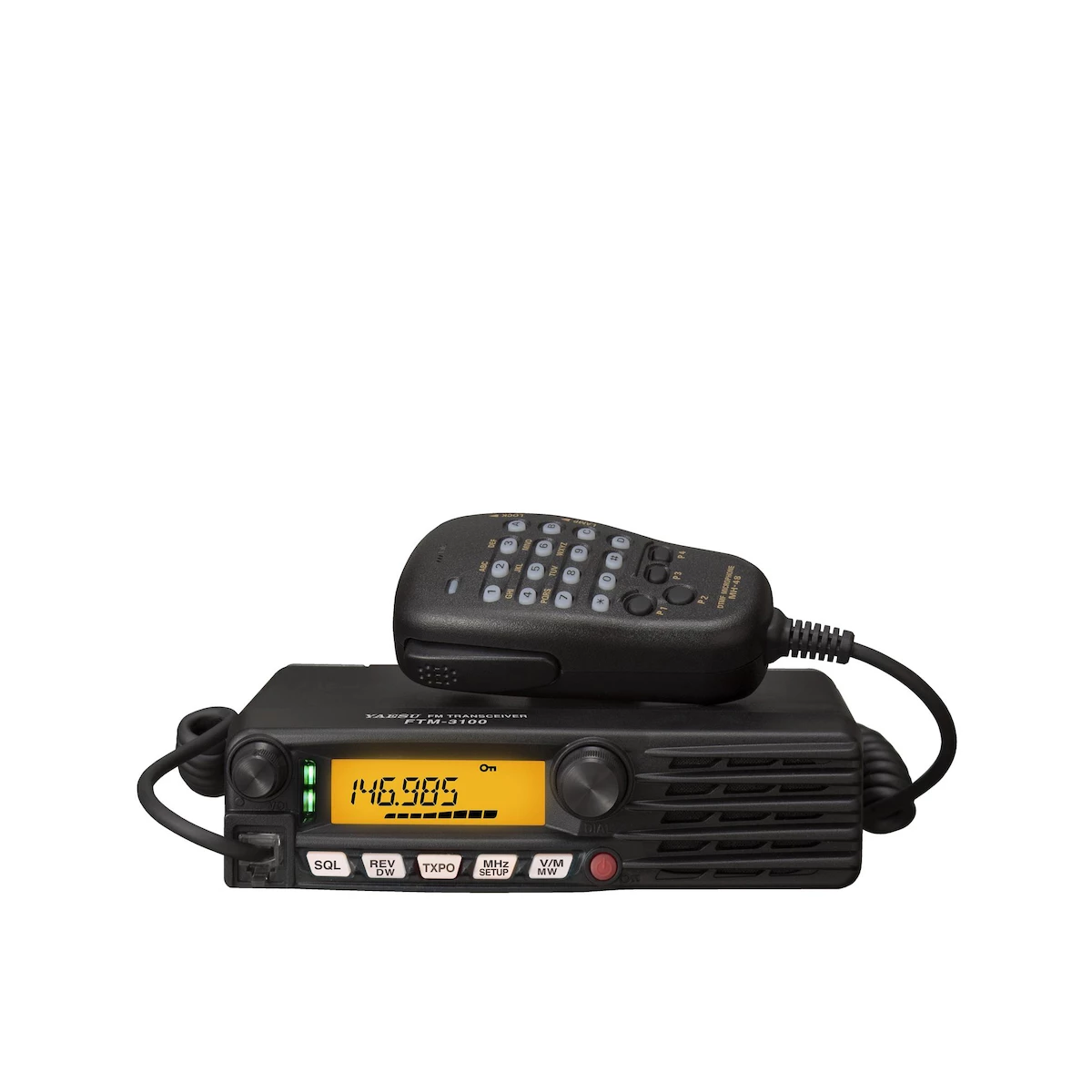

Yaesu FTM-3100R Transceiver
Original price was: $299.99.$269.99Current price is: $269.99.
On sale until August 31, 2024
Ruggedly built yet compact VHF-FM mobile transceiver, providing high output power of up to 65 Watts to ensure stable long-distance communications.
Out of Stock (On Order)
Analog FM Single Band 2-Meter Transceiver
The new FTM-3100R is a ruggedly built yet compact VHF-FM mobile transceiver, providing high output power of up to 65 Watts to ensure stable long-distance communications. One of the distinguishing features of this exciting new mobile transceiver is the Front Panel Speaker delivering 3 Watts of loud and crystal clear audio; designed for stress-free and enjoyable communications – even in noisy environments.
This new mobile is equipped with a heavy-duty heat sink that includes an extraordinary FACC; Funnel Air-Convection Conductor (Wind Tunnel). The FACC gathers cool air through a wide open front air-intake and concentrates the air flow to the critical final amplifier area drawn by a rear cooling fan.
FTM-3100R FEATURES
Powerful and Rugged 65 Watt Transmitter
Enjoy 65 Watts of 2-Meter RF Output to ensure long distance communication even in the toughest of situations. Type: F3E Variable Reactance Modulation.
3 watts of crystal clear front panel audio
In any environment enjoy loud and crystal clear audio with 3 Watts of audio from the FTM-3200R’s front mounted speaker. 8 Watt output using Optional External Speaker (MLS-200-M10)
FACC – Funnel Air-Convection Conductor (Wind Tunnel).
Cool air is drawn through a wide open front air intake and is then concentrated over critical areas of the Power Amplifier (PA) section of the FTM-3100R.
Frequency Range
Transmit: 144 – 148 MHz
Receive: 136 – 174 MHz
Dimensions
Size: 6.1″ x 1.7″ x 6.1″ (154 x 43 x 155 mm)
Weight: 2.86lb (1.3kg)
Other Useful Features
- 220 Alpha-Numeric Memory Channels
- CTCSS and DCS Encode/Decode
- Extended Receive 136-174 MHz.
- High Stability TCXO ±2.5 ppm
- Severe Weather Alert
| Weight | 5.32 lbs |
|---|---|
| Dimensions | 13.75 × 9.5 × 3.25 in |
| Brand | Yaesu |
Product Specifications
FTM-3100R Specifications
- Circuit Type: Double Conversion Superheterodyne
- IF: 1st 47.25 MHz, 2nd 450 kHz
- Sensitivity (12dB SINAD): 0.20uV (HAM Wide), 0.22uV (HAM Narrow)
- Selectivity (-6/-60dB): 12 kHz/28 kHZ
- Maximum AF Output: 3W @ 13.8V, 10% THD
- Output Power: 65/30/5 W
- Maximum Deviation: +5 kHz (Wide), +2.5 kHz (Narrow)
- Spurious Radiation: Better than -60 dB
- Microphone Impedance: 2k Ohms
- Antenna Impedance: 50 Ohms
- Operating Temperature Range: -4 Degree’s (F) to +140 Degree’s (F)
Package Includes
Package Includes:
- FTM-3100R
- DTMF microphone
- Mounting Bracket
- DC power cable with fuse
- Safety guide
- Operating Manual
- Warranty card
