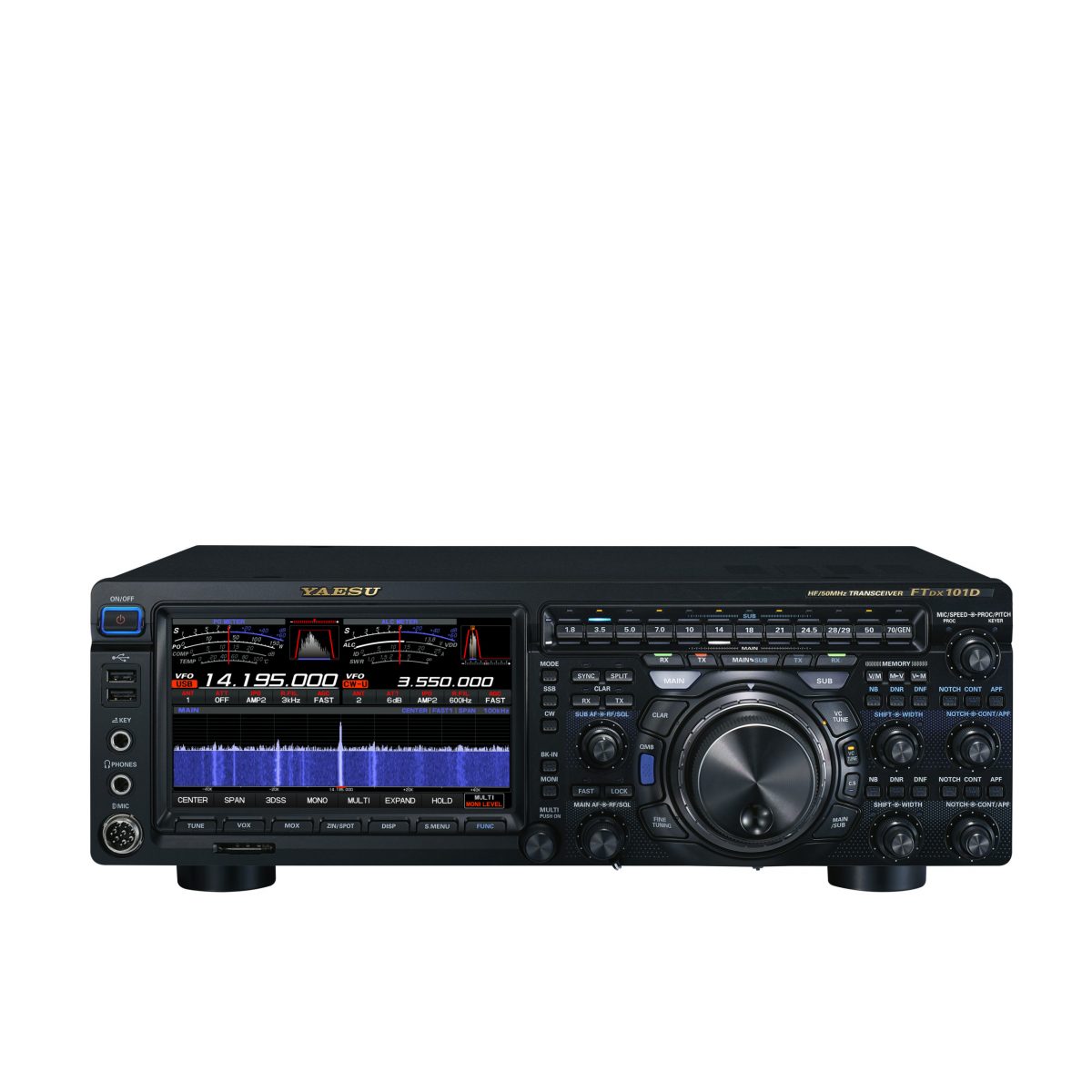

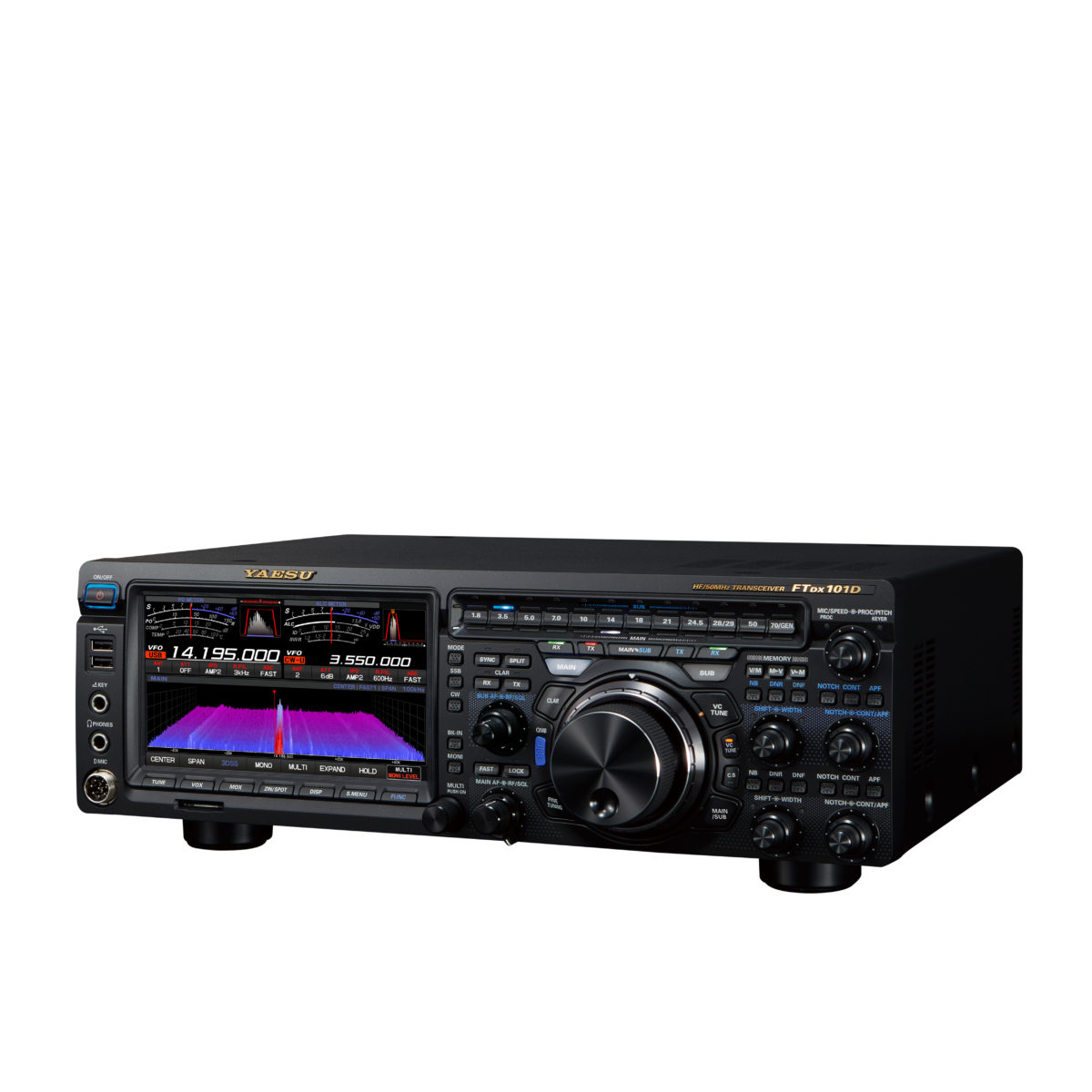

Yaesu 100W HF+6m Transceiver

We are pleased to announce the FTDX101 series HF+6m transceivers – the FTDX101MP for 200W output power (not approved by the F.C.C. for sale yet) and the FTDX101D with 100W output power.

Both transceivers share the same core features utilizing the latest SDR Technology. A few of the extraordinary features are listed below:

• Superb and Astonishing Close-in Dynamic Range Performance even in today’s crowded bands situations
• 9MHz IF Roofing Filter Producing Excellent Shape Factor
• Truly quiet and clear reception. 400MHz HRDDS (High Resolution Direct Digital Synthesizer)
• Hybrid SDR: Direct Sampling & NBW (Narrow Bandwidth) SDR
• Completely Independent Dual Receivers
• High-Q VC Tuning Front-End
• YAESU Renowned Interference Reduction System
• Large Touch-Panel Precision Color Display
• 3DSS (Three Dimension Spectrum Stream) Waterfall Display
• Active Band Indicator with LED illumination of the operating band, enables rapid band changes
• MPVD (Multi-Purpose VFO Outer Dial) provides Sub VFO dial, Clarifier operation, VC-TUNE adjustment, VFO fine tuning or a CS (custom selection) function
• Remote operation connected to LAN or internet
• Find more info in the FT DX 101 Series Catalogue

True Performance

• Hybrid SDRs (Narrow Band SDR & Direct Sampling SDR)
• 2kHz RMDR 123dB+
• 2kHz BDR    150dB+
• 2kHz 3rd IMDR 110dB+
• 400MHz HRDDS (High Resolution Direct Digital Synthesizer)
• 2kHz Phase Noise -150dBc/Hz
• VC-TUNE (Variable Capacitor Tune) signal peaking
• 3DSS (3-Dimensional Spectrum Stream) visual display
• Narrow band SDR & Direct Sampling SDR
• Emphasizes Basic Performance and Hybrid SDR Functionality
• Includes Digital Processing Generated Real-Time Spectrum Scope

Sherwood Engineering places this as the top receiver available today.
