Yaesu FC-30 Automatic Antenna Tuner

MPN: FC-30

$340.00

Yaesu FC-30 Automatic Antenna Tuner, FT-897 which bolts on the side

Out of Stock (On Order)

SKU: 7524 Category:

Designed specifically to mount to the FT-897 HF/VHF/UHF transceiver, FC-30 antenna tuners include a cooling fan to ensure thermal stability of the critical matching elements within its compact case.

The FC-30 Tuner covers 1.8 – 30 and 50-54 MHz, handling up to 100 watts with a VSWR of 1.5:1 or less. Tuneup power is 4 to 60 watts and tuning takes 5 seconds or less. There are 100 impedance matching memories. This tuner pulls the required 13.7 VDC directly from the transceiver. The impedance matching is 16.5 to 150 ohms.

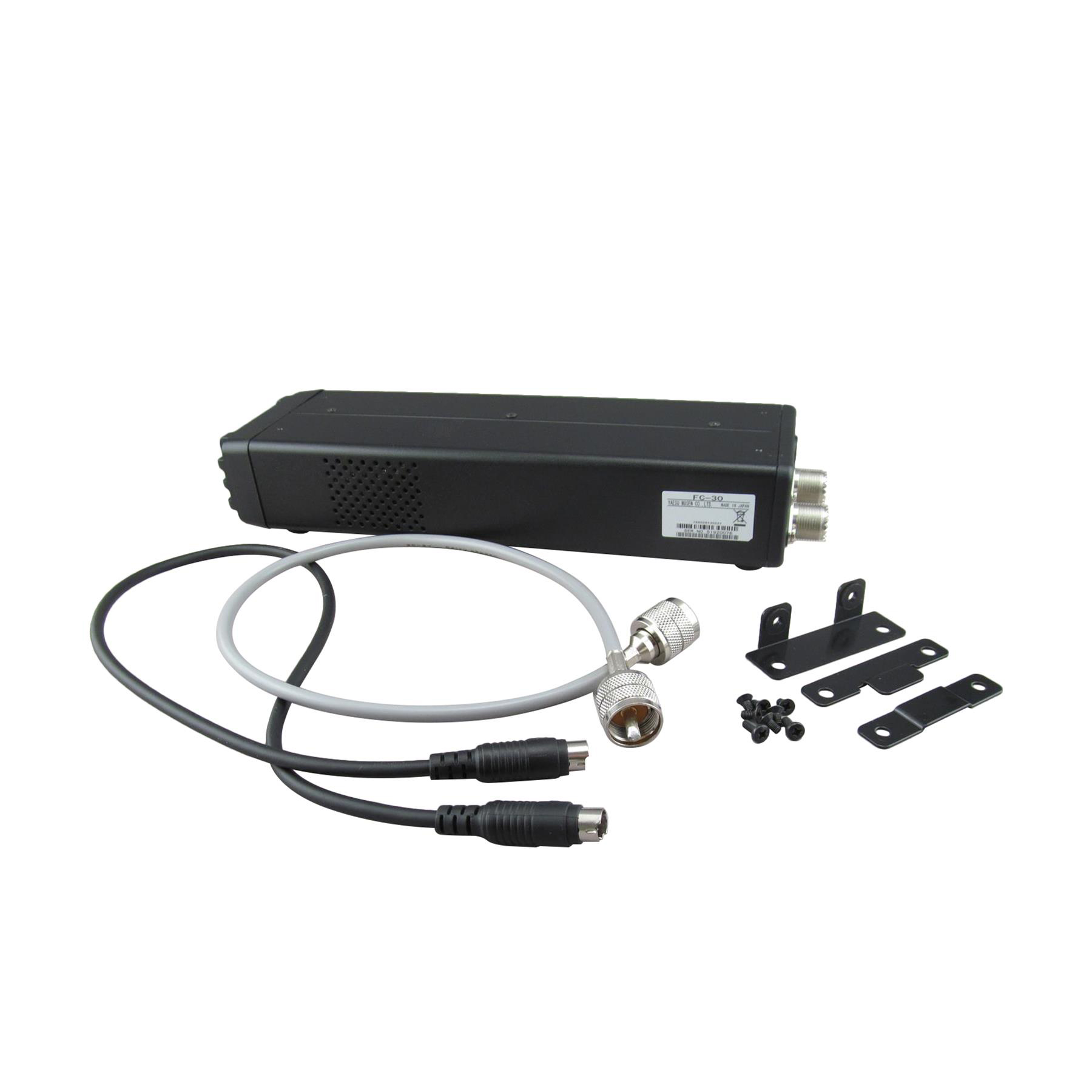

The FC-30 comes with a 2 foot (0.45m) coaxial cable, 2 foot (0.45m) control cable and mounting screws. Size: 3.1 x 1.8 x 10.2 inches (80x45x260mm) 2.2 Lbs (1 kg).

Weight 3.12 lbs
Dimensions 12.75 × 4 × 6 in
Brand

Yaesu
Manufacturer Part Number FC-30
