In the Box:

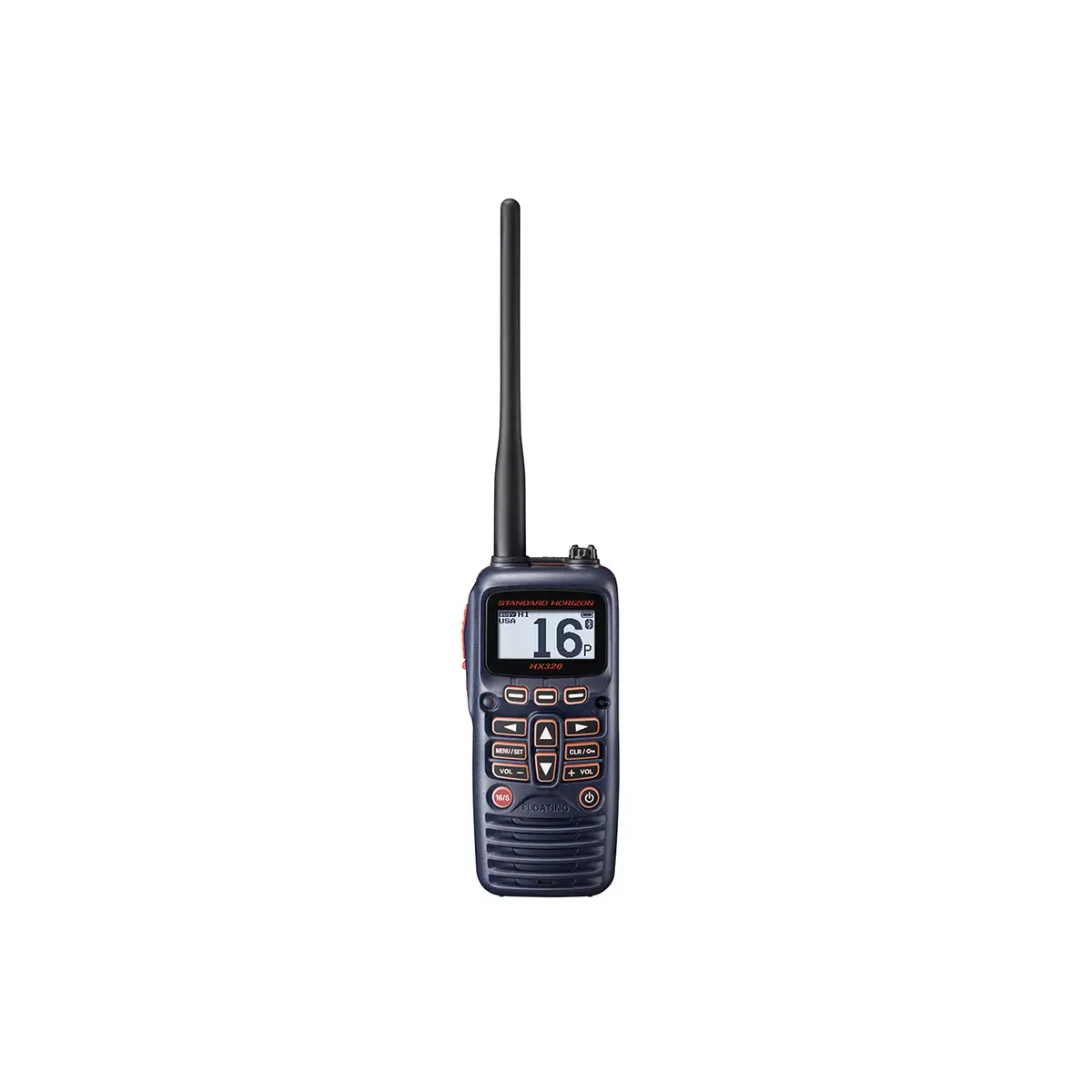

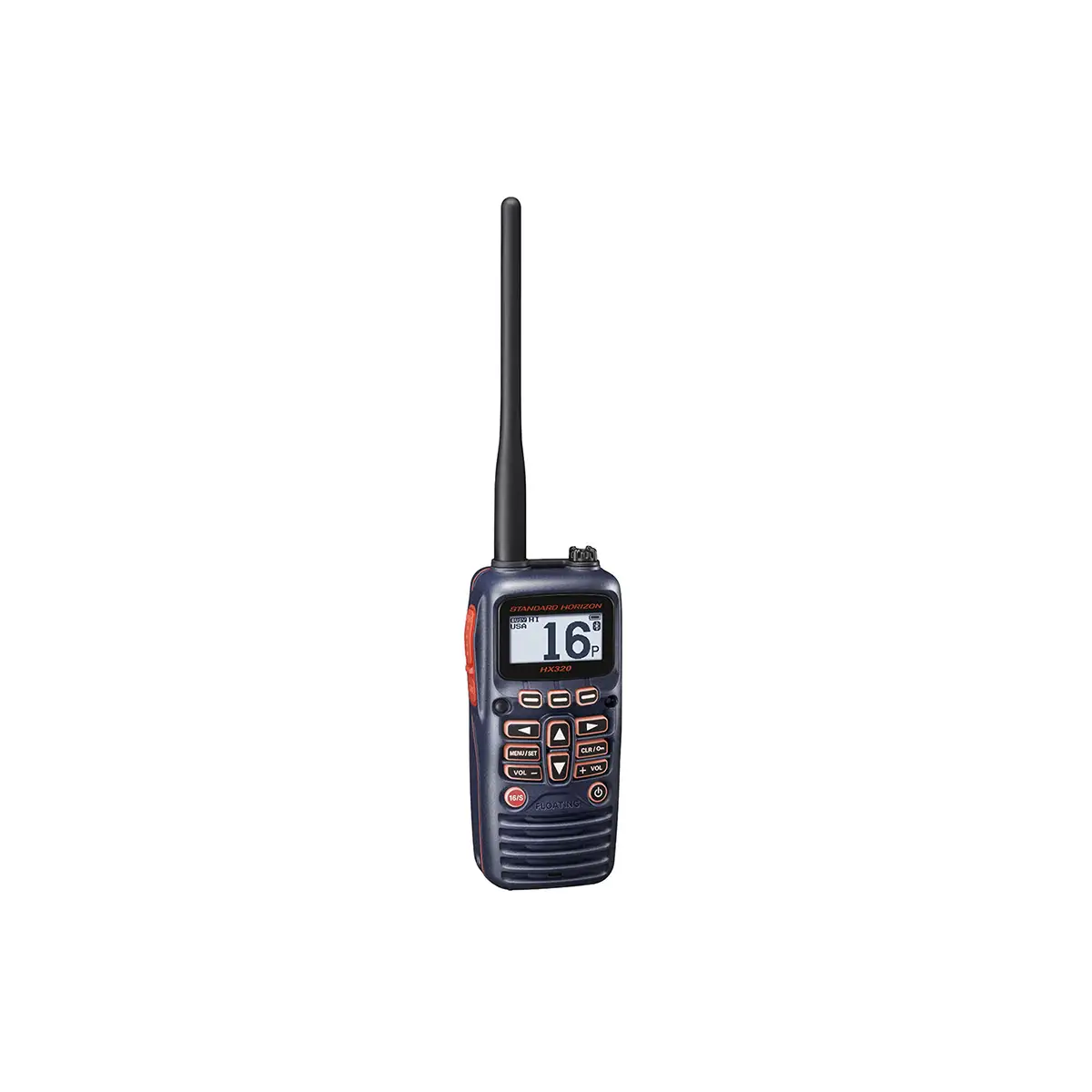

- HX320 Marine Radio
- VHF Marine Antenna
- USB AC Adapter
- Charger Cradle
- USB Cable (USB type-A to USB type-C Charging cable)
- Belt Clip
- Hand Strap
GPSC PN
Availability
Notify Me
Standard Horizon HX320 Specs
General |
|
| Channels | All USA Marine, Canadian Marine and International (Depends on the version) |
|---|---|
| Channel Spacing | 25kHz |
| Frequency Stability | ±3ppm –4°F to +140°F (–20°C to +60°C) |
| Emission Type | 16K0G3E |
| Antenna Impedance | 50 Ω |
| Supply Voltage | 7.4VDC Negative Ground |
| Current Consumption | 330mA (Receive), 100mA (Standby) TX: 1.6A / 1.0A / 0.7A (TX: 6W* / 2.5W / 1W) |
| Operating Temperature | –4°F to +140°F (–20°C to +60°C) |

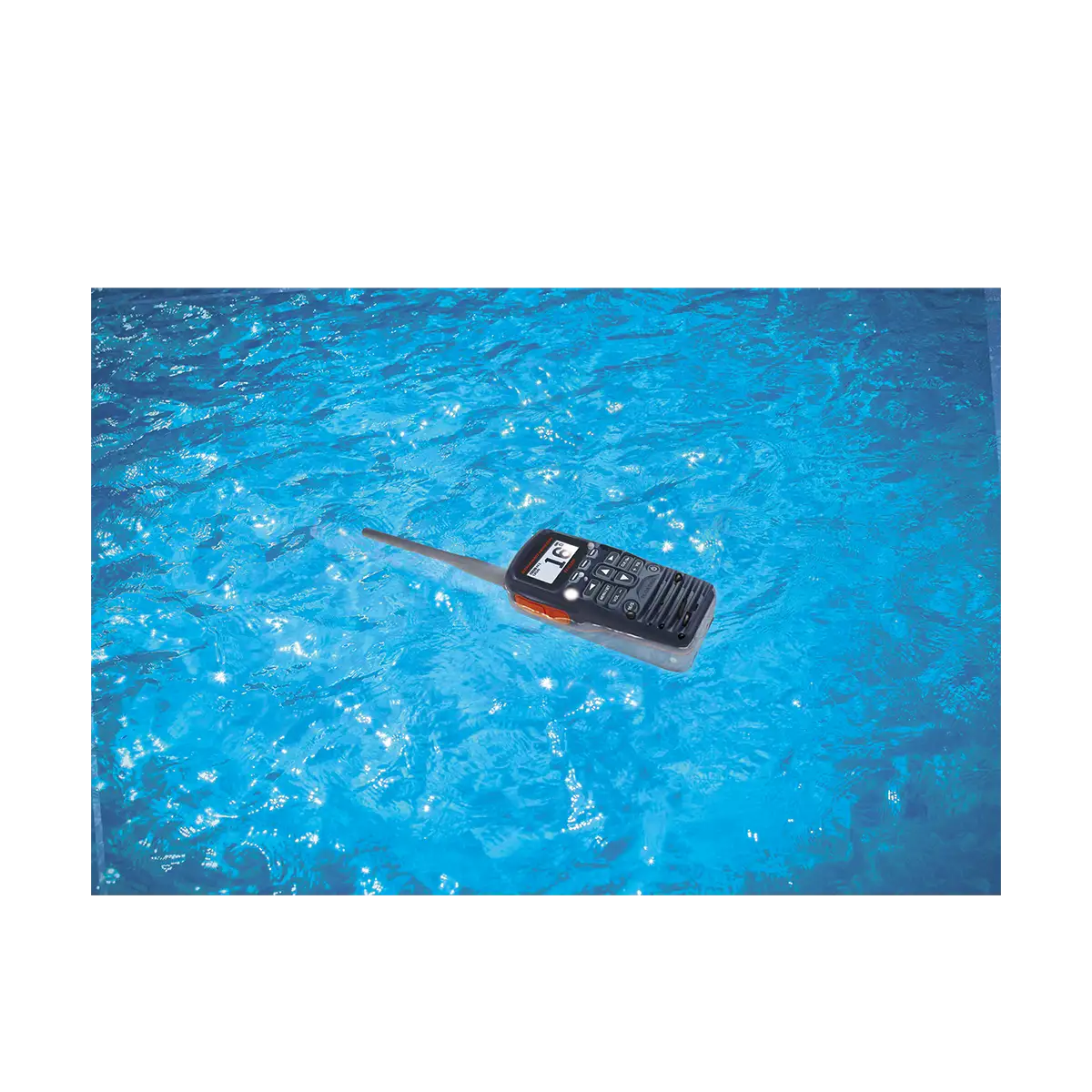

| Waterproof rating | IPX7 : 3.3ft (1m) for 30 minutes |
| Case Size (W × H × D) | 2.36″ × 5.24″ × 1.65″ (60 × 133 × 42mm) (w/o knob & antenna) |
| Weight (Approx.) | 10.23oz (290g) (With hand strap, belt clip & antenna) |
Transmitter |
|
| Frequency Range (MHz) | Marine Band 156.025MHz – 161.600MHz |
| RF Output Power | 6W* / 2.5W / 1W (@7.4V) |
| Maximum Deviation | ±5kHz |
| Spurious Emission | Less than 0.25μW |
| Microphone Impedance | 2kΩ |
Receiver |
|
| Frequency Range (MHz) | Marine Band 156.050MHz – 163.275MHz |
| Circuit Type | Single-Conversion Superheterodyne |
| Sensitivity | 0.25μV for 12dB SINAD(US) –5dBμ for 20dB SINAD(EXP) |
| Selectivity | 12kHz / 25kHz (–6dB / –60dB) |
| Intermodulation | 70dB typ.(US), 68dB typ.(EXP) |
| AF Output (Internal SP) | 700mW @ 16Ω for 10% THD (@ 7.4V) |
FM Broadcast Receiver |
|
| Frequency Range | 65MHz – 108MHz |
| Frequency Step | 100kHz |
| Sensitivity | 1.0μV for 12dB SINAD |
*5W TX power required in some countries
