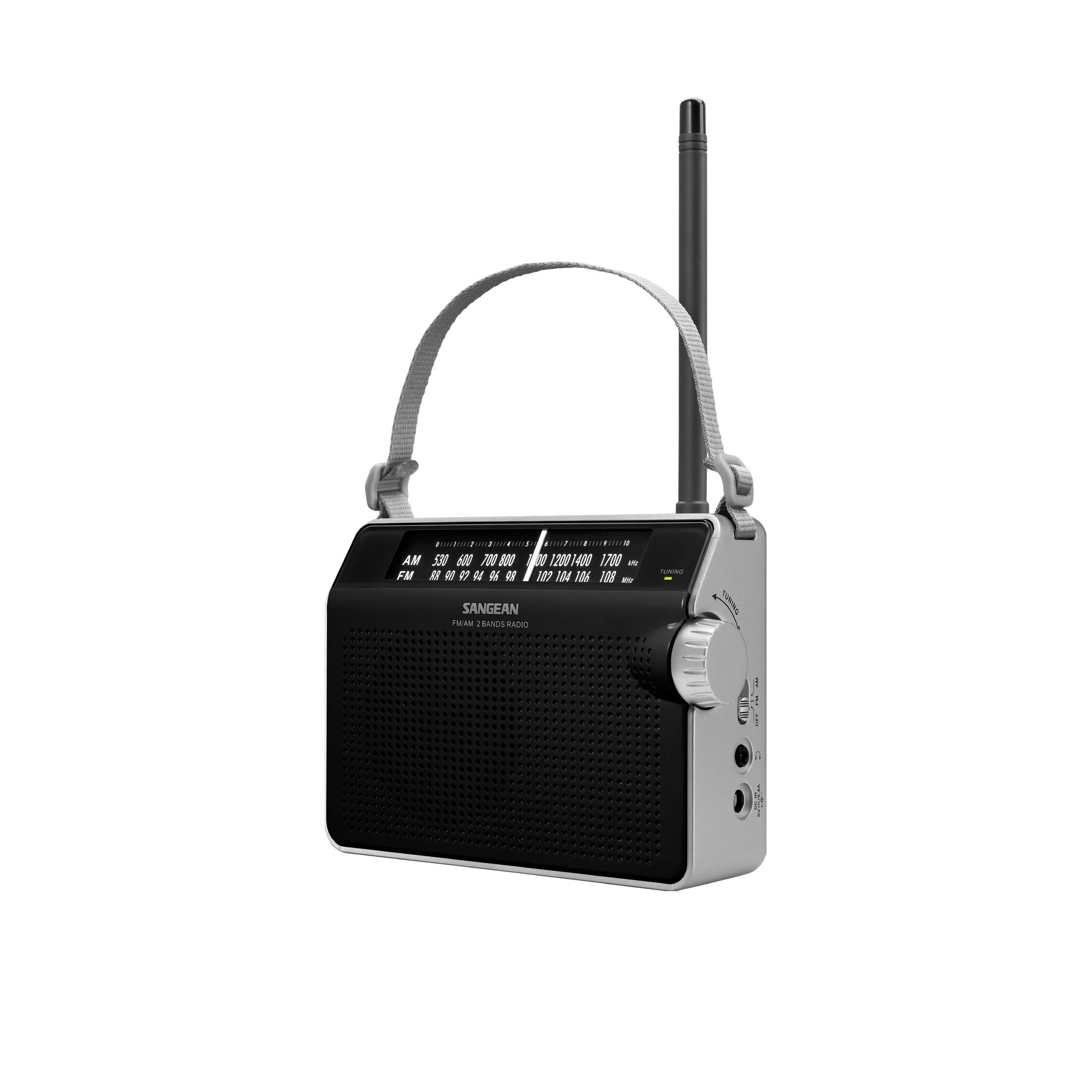

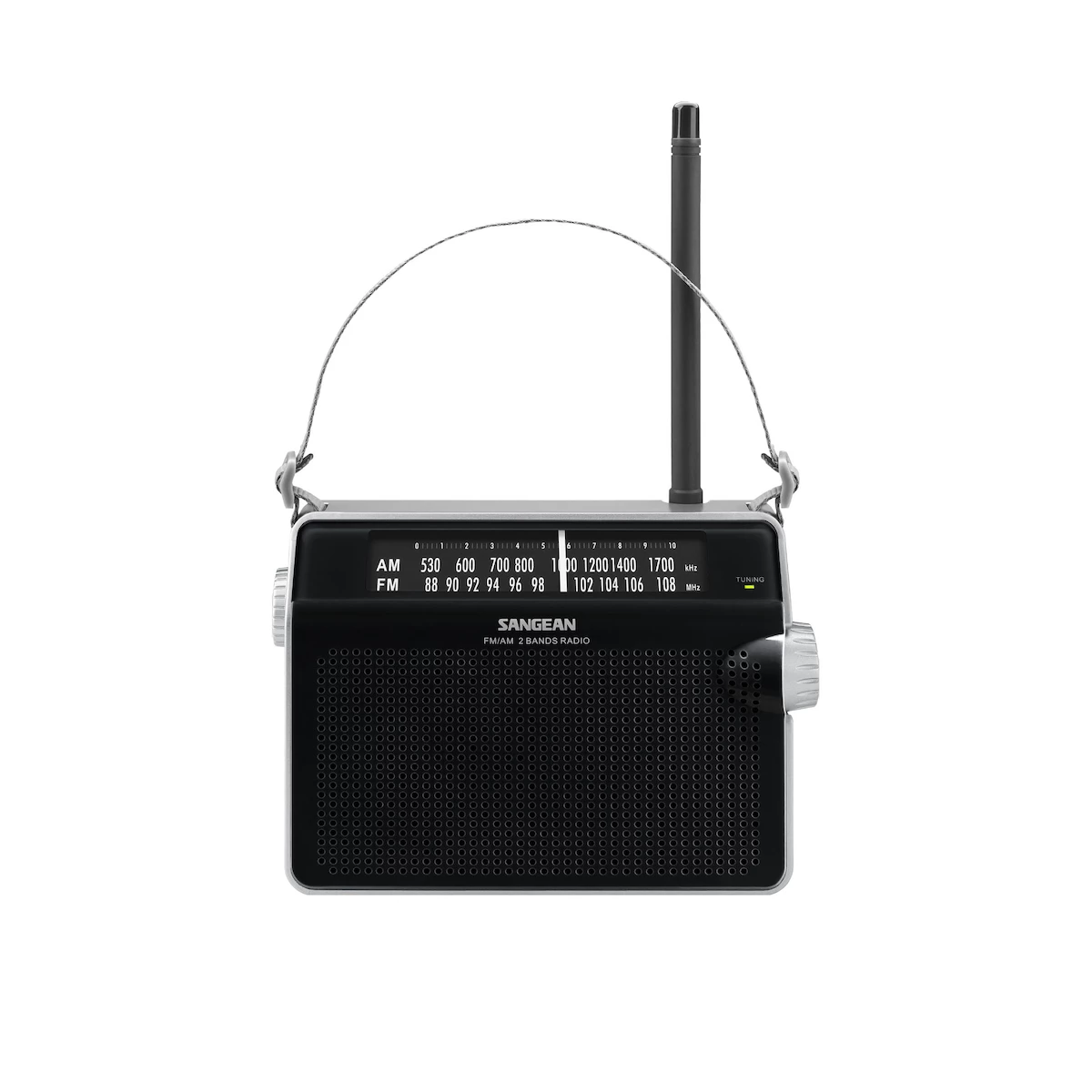

FM/AM Compact Analogue Tuning Portable Receiver
Features include:
- AM / FM Analog Tuning Portable Receiver
- Excellent Audio and Reception
- Rotary Bass and Treble Control
- Dial Scale Display
The Sangean PR-D6 Compact Analog Tuning Portable Radio is an attractively styled portable radio with simplicity and function in mind and it offers a combination of features for enjoyable FM / AM listening. In true Sangean tradition FM / AM reception is excellent providing clear and static free listening, the dial precisely tunes your station selection displayed in a softly lighted analog display.
| Weight | 1.02 lbs |
|---|---|
| Dimensions | 6.77 × 2.17 × 4.84 in |
| Manufacturer Part Number | PR-D6 |
Product Specifications
Specifications:
| TUNING | Type | Analogue | |
| Â | Rotary Tuning | V | |
| DISPLAY | LCD / VFD / Dial Scale | Dial Scale | |
| TUNER | FM | Frequency (MHz) | 87.5 – 108 |
| Â | AM / MW | Frequency (kHz) | 520 – 1710 |
| AUDIO | EQ | Treble / Bass Control | V (Rotary) |
| OUTPUT DEVICES | Speaker | Size ( mm / inch ) | 3 inches |
| Â | Impedance | 4 ohms | |
| OUTPUT POWER (TYPICAL) | AC / DC / AC to AC in (Speaker) | 1W (DC – IN) | |
| Â | Batteries (Speaker) | 1W | |
| Â | Earphones | 3 + 3 mW | |
| POWER SUPPLY | DC in | 6V DC 400mA | |
| Â | Batteries (Main Power) | 4x 1.5V (UM – 3) | |
| I/O SOCKET | DC in | V | |
| Â | Earphones | V | |
| DIMENSIONS | Width (mm/inch) | 172 / 6.77 | |
| Â | Height (mm/inch) | 123 / 4.84 | |
| Â | Depth (mm/inch) | 55 / 2.17 | |
| Â | Weight (g & lb. oz) | 460 / 1lb. 0.2oz | |
| PARTICULAR PERFORMANCE | 1 | Rubber Antenna |
