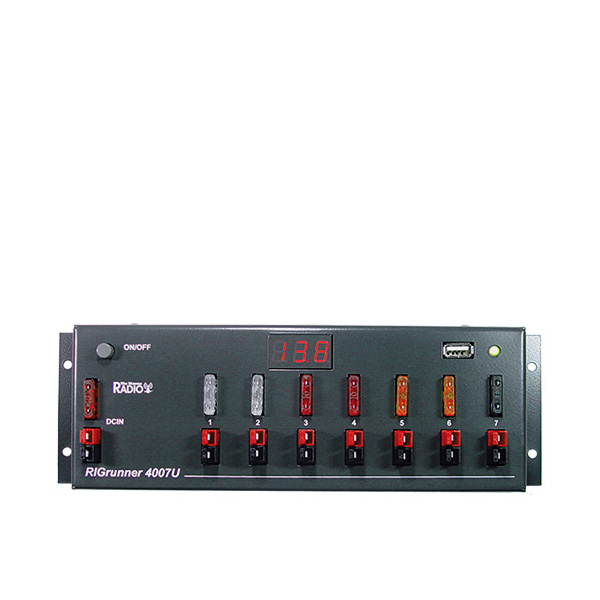

RIGrunner 4007U

RIGrunner 4007U Features

RIGrunner is the most convenient and safest way to connect all of your 12 volt equipment to a power source. It uses the excellent Anderson Powerpole connectors, standardizing all of your 12 VDC connections.

• 40 amp 12 VDC continuous duty with 7 fused outlets.
• Automatic supply voltage and load current measurement shown on a 3 x 7 segment display.
• Pushbutton solid state on/off control.
• Built in PWRguard with automatic shut off on high (HVD) or low voltage condition (LVD) with audible alarm.
• Intelligent 2A USB port for charging iPhone, Android and other USB devices.
• Remote (wired) on/off and lockout capability included.
• Adjustable 7 segment display brightness.
• External input for use with electrical/mechanical interlocks.
• Internal RF bypass capacitors on all inputs and outputs.

RIGrunner Construction

• Built in USA to IPC-610 commercial manufacturing standards by an ISO9002 facility.
• Printed circuit board .062 FR4 material, extra heavy 3oz. copper, with greater than 1″ wide high current traces.
• Double sided, plated through holes, solder mask over bare copper, silk screened commercial grade printed circuit board.
• Enclosure: .062 aluminum, with attractive and extremely durable powder coat painting and clear silk screen labels.
• Power connectors: exclusively Anderson Power Products® Powerpole®.
• Connectors are arranged according to the ARES/RACES standard (see our links).
• Fuses installed are standard ATC/ATO automotive fuses available in 10 values from 1 to 40 Amps.
• Stainless steel hardware with PEM™ threaded mounting standoffs.
