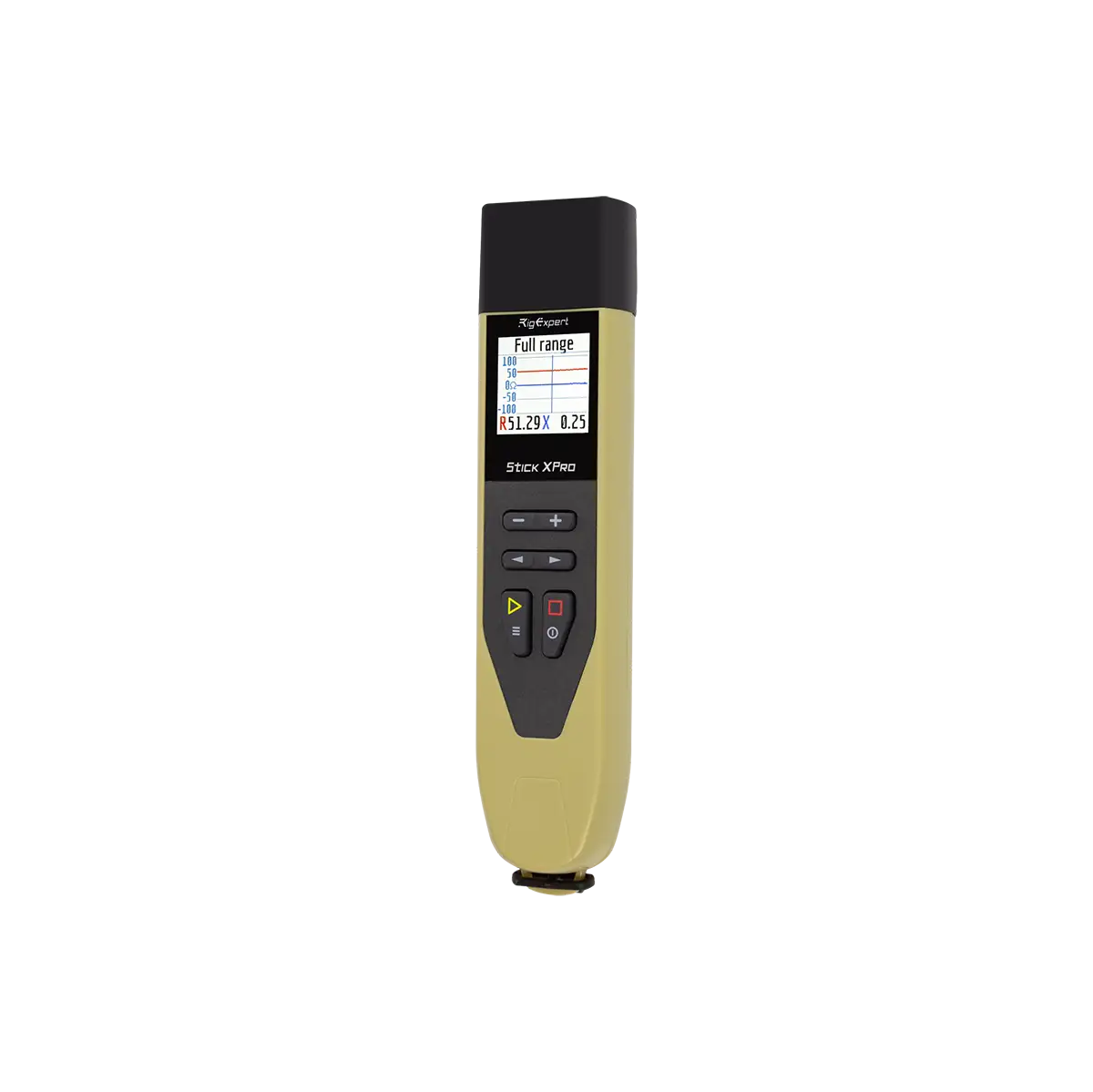

RigExpert Stick XPro Vector Analyzer
MPN: STICKXPRO
$930.00
Stick XPro is a vector analyzer that simply and accurately measures all the main parameters of various RF devices and systems in the frequency range from 0.1 MHz to 1000 MHz.
In stock
Stick XPro is a vector analyzer that simply and accurately measures all the main parameters of various RF devices and systems in the frequency range from 0.1 MHz to 1000 MHz.
Industries Used In:
- Amateur radio
- Commercial radio
- Telecom
- Field Communication
- Marine
Use cases:
- Checking and adjusting antennas
- Measurement of various parameters of cables feedlines, filters, and other
- 1/4-λ, 1/2-λ coaxial stubs setup
- Â Finding cable fault
Main features:
- 1000 MHz measures
- Factory calibration
- Сolor TFT display
- Pocket-size
- Splash and dustproof case
- User-friendly interface
- 16-hour runtime one charge
- Operation temperature from -20° to 55°C
| Weight | 0.74 lbs |
|---|---|
| Dimensions | 9.75 × 2.75 × 2 in |
| Brand | RigExpert |
Specifications
RigExpert Stick XPro Specs
- Frequency range: 0.1 – 1000 MHz
- Frequency input step: 1 kHz
- Measurements for 12.5, 25, 28, 37, 50, 75, 100, 150, 200, 300, 450 and 600Ω systems
- SWR measurement range: from 1 to 100 in digital mode, from 1 to 10 in graph modes
- Range R and X: 0… 2000, -2000… 2000
- Operating modes: Multé (a quick check of multiband antennas), HAM (a quick check of single band antenna), Single (measure SWR, |Z|, R, X, C, L, RL, Mag&Phase), TDR (distance to fault), SWR chart, Return Loss chart, RX Chart, OSL calibration mode, Сable tools (StubTuner, Cable Length, Impedance, Loss measurements)
- HF output:Â Connector type: N-type. Output signal shape: square, from 0.1 to 1000 MHz. Output power: -10 dBm (at a load of 50 Ohms).
- Power: One Lithium-ion 18650 (included). Сharge time: 3 hours when using a charger. When the analyzer is connected to a PC or DC adapter with a USB connector, it receives power from these sources
- Interface: TFT display, 220Ń…220 pixels resolution. 2 Ă— 3 keys on the waterproof keyboard. English (by default) and Japan menu and help screens. USB connection to a personal computer
- Bluetooth: ver. 4.2 BLE Single-mode, Class B, via USB 2.0 Type-C
- Dimensions: 185 x 40 x 33 mm (7.3 x 1.6 x 1.3 inches)
- Operating temperature: -20°- 55°C (-4°-131°F)
- Weight: 185 grams (6.5 Oz) with battery
- Warranty:Â 2 years
The main parameters of the Stick XPro analyzer:
- Operating frequency: 100 kHz – 1000 MHz
- Size: 185 * 40 * 33 mm (7,3 in x 1,6 in x 1,3 in)
- Weight: 185 grams (6.5 Oz) (unpacked, with battery installed)
- Type of antenna connector: N-type
- Number of Enter Keys: 6
- Display: color TFT, 220 * 220 pixels.
- Type of battery used: Li-ion 18650 (included)
- PC Connector Type: USB 2.0 Type-C
- Charging Port Type: USB Type-C
- Bluetooth Availability: Yes, Bluetooth ver. 4.2 BLE Single-mode, Class B
- Battery Charge Time: 3 hours.
- RF Power: -10 dBm (at 50 Ohm load)
- Minimum frequency step: 1 kHz
- Operating temperature: -20…40 °C (-4…104 °F)
RigExpert Stick XPro is made in Ukraine.
* All specifications are subject to change without notice or obligation.
Package Includes
In the Box:
- RigExpert Stick XPro antenna analyzer
(with a Li-ion battery type 18650) - Quick-start guide
- Neck strap
- USB cable
- N-type to UHF adapter
