RAP-356

Adapt-To-RAM™ Mounting Plate

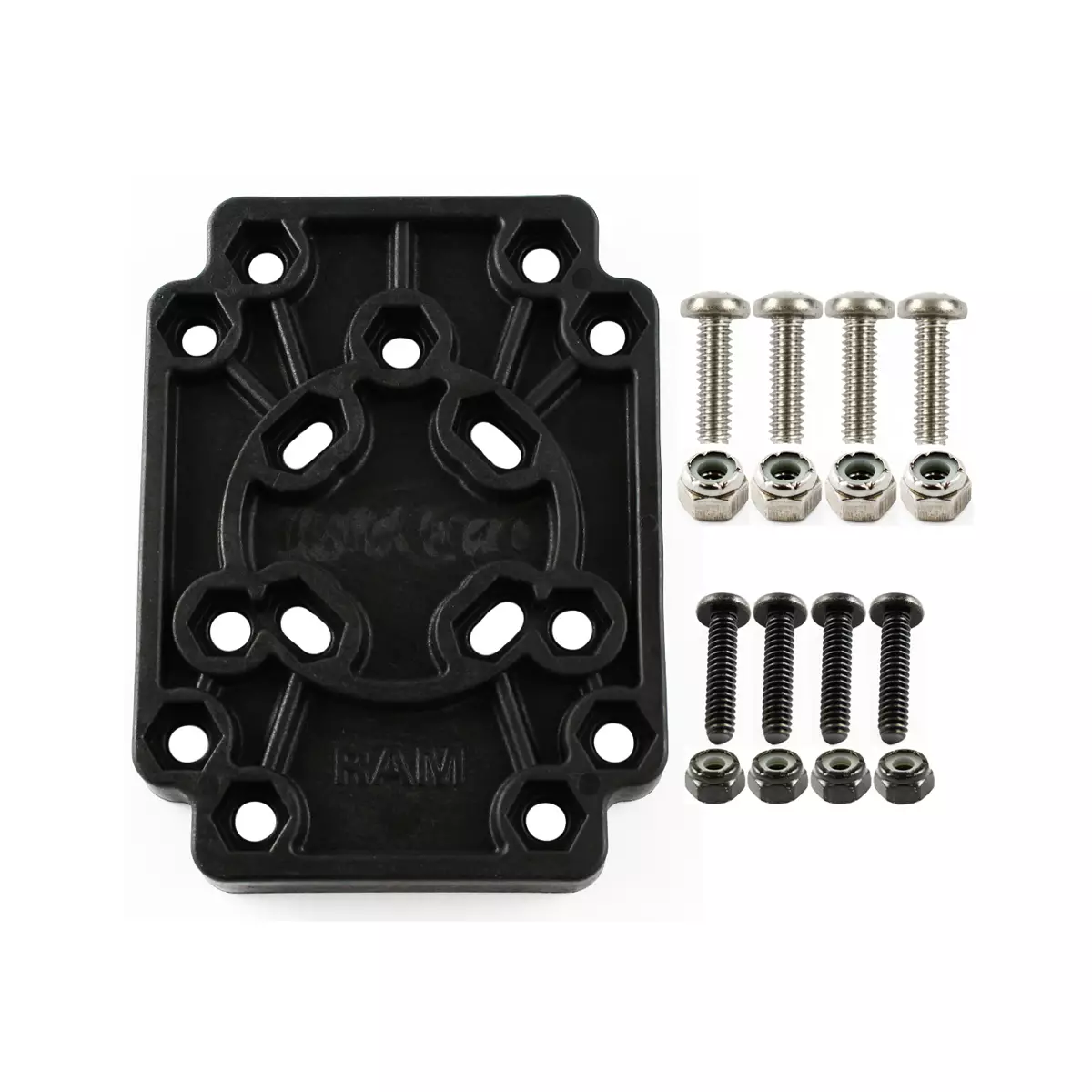

Have something that you want to connect to a RAM Mount? Worried about hole patterns and compatibility? Well, here’s your ticket to worry free mounting of almost anything. The Adapt-To-RAM™ mounting plate is a slim and simple adaptor plate with multiple hole patterns that will quickly and easily mate non-RAM products to RAM’s patented Mounting Systems.

Weight:
0.5 lbs.

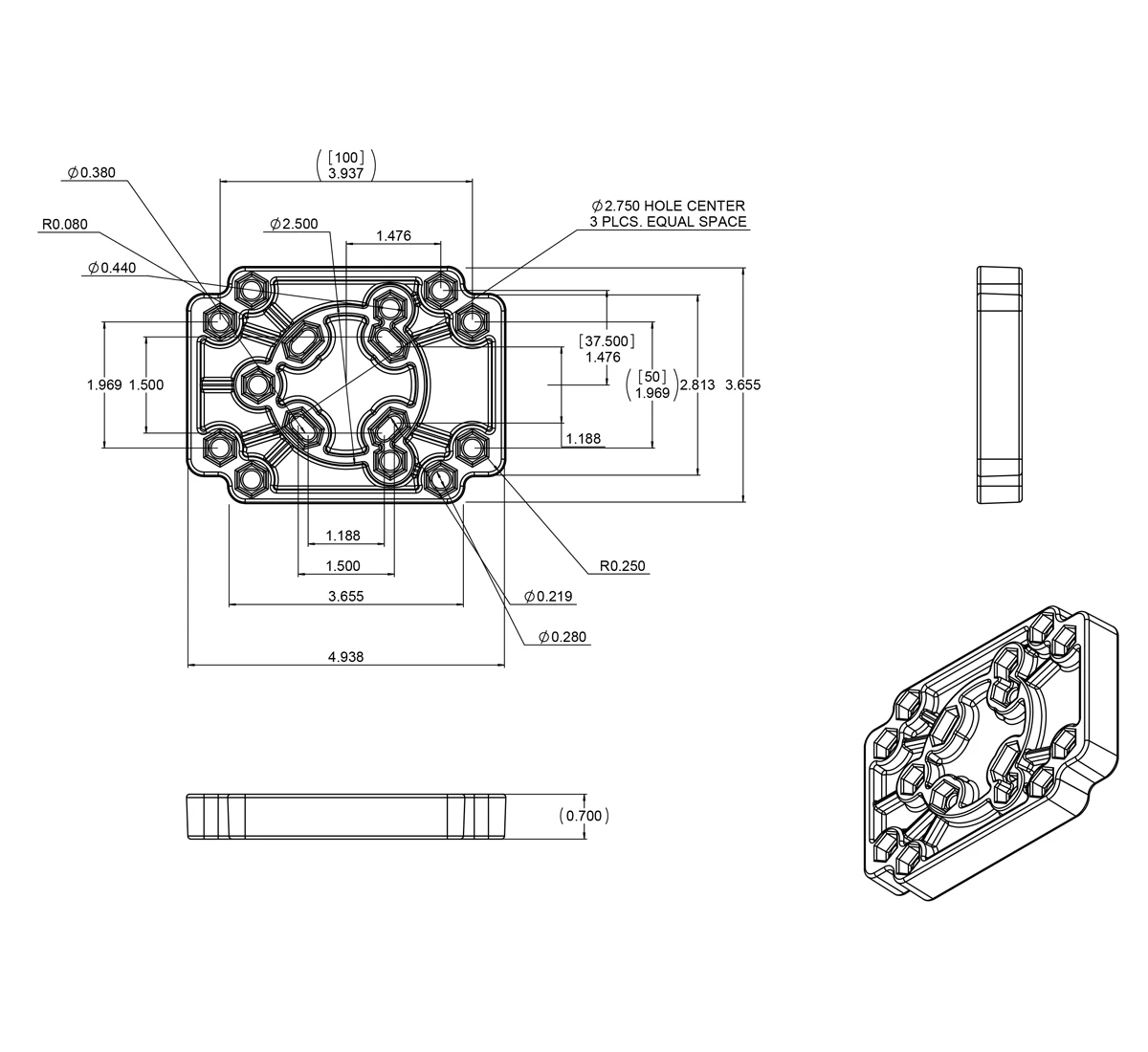

Hole Patterns:

1. AMPS Hole Pattern 1.5″ x 1.1875″
2. 75mm x 75mm VESA Hole Pattern
3. 2.75″ Diameter Bolt Hole Center Pattern 120 Degrees
4. 100mm X 50mm VESA Hole Pattern

Material:
High Strength Composite

Note:
The “U” in the part number reflects product packaged in poly bag.
