RAM-HOL-UN14WB Waterproof Wireless Charging Holder

$180.95 – $217.95

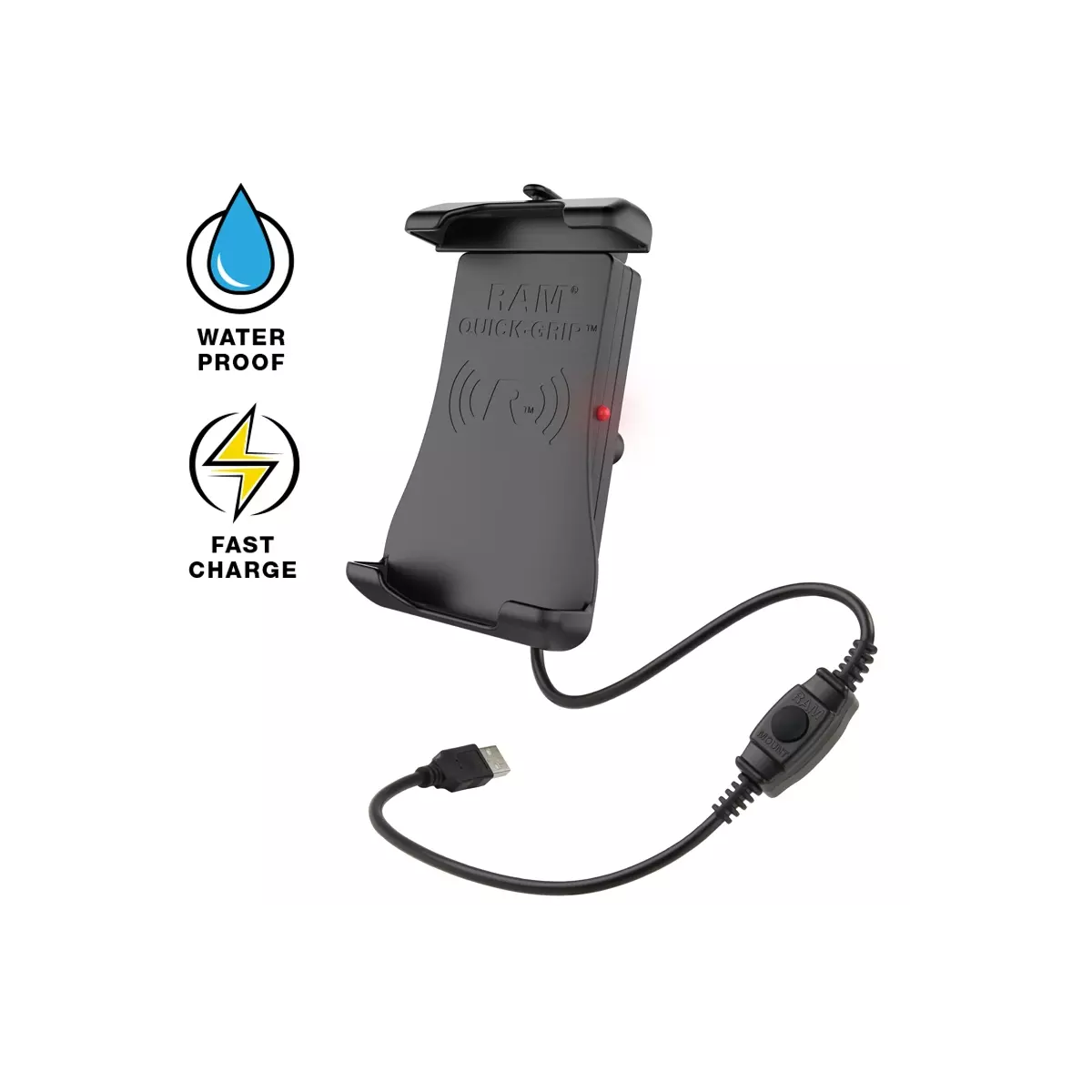

RAM® Quick-Grip™ Waterproof Wireless Charging Holder with Charger

SKU: N/A Categories: , , ,

RAM QUICK-GRIP WATERPROOF WIRELESS CHARGING HOLDER

The RAM Quick-Grip Wireless is a patented, universal water resistant wireless charging cradle for phones. As part of the spring-loaded RAM Quick-Grip family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi compatible wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi compatible wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. This RAM Quick-Grip Wireless kit for vehicles includes a B size diamond base featuring a 1″ rubber ball – perfect for attaching to your choice of B size RAM double socket arm.

The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.

RAM-HOL-UN14WB FEATURES

  • Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM Quick-Grip design and 10W maximum output
  • RAM Mounts Compatible with B size double socket arms and ball bases for mounting in your preferred location
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • RAM Mounts backed by lifetime warranty, RAM electronics backed by 1-year warranty with proof of purchase required

Holder Dimensions:

  • Height Range: 5.625″ – 6.625″
  • Max Width: 3.125″
  • Max Depth: .7″

WEIGHT CAPACITY:

  • 2lb

MATERIALS:

  • High strength composite, Stainless steel

POWER SPECIFICATIONS

  • Input Power: 5V-2A; 9V-1.67A
  • Output: 5W / 7.5W / 10W
  • Conversion Efficiency: 85% Max
  • Maximum Case Thickness: 6mm
  • Working Frequency: 110-205KHZ
  • Product Standard: WPC v.1.2.4
  • Qi Compatible
  • Compatible with QC2.0/QC3.0 power supplies

COMPLIANCE:

  • Over Voltage Protection
  • Short Circuit Protection
  • Reverse Polarity Protection
  • RoHS Compliance
  • WEEE Compliance
  • SAE J-1113-5 Load Dump (Transient Voltage)
  • Moisture Resistant

CERTIFICATIONS:

  • FCC, IC, CE, e-Mark, WEEE, RCM, and RoHS Compliant

Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.

iPhone 12 and iPhone 13 products support a new and proprietary wireless charging standard not supported in this product.

Weight N/A
Dimensions N/A
Brand

RAM Mounts
Model

RAM-HOL-UN14WB, RAM-HOL-UN14WB-V7M
Manufacturer Part Number

Product Video

Package Includes

RAM-HOL-UN14WB Package Includes:

  • (1) Safety Tether
  • (1) Silicon sleeve for USB waterproof connection
  • (1) 1.2 Meter USB Extension Cable
  • (1) RAM-B-238 attached
  • (4) Small zip ties
  • (2) Large zip ties

RAM-HOL-UN14WB-V7M Package Includes:

  • (1) Safety Tether
  • (1) Silicon sleeve for USB waterproof connection
  • (1) Hardwire Charger with Cable
  • (1) RAM-B-238 attached
  • (4) Small zip ties
  • (2) Large zip ties
