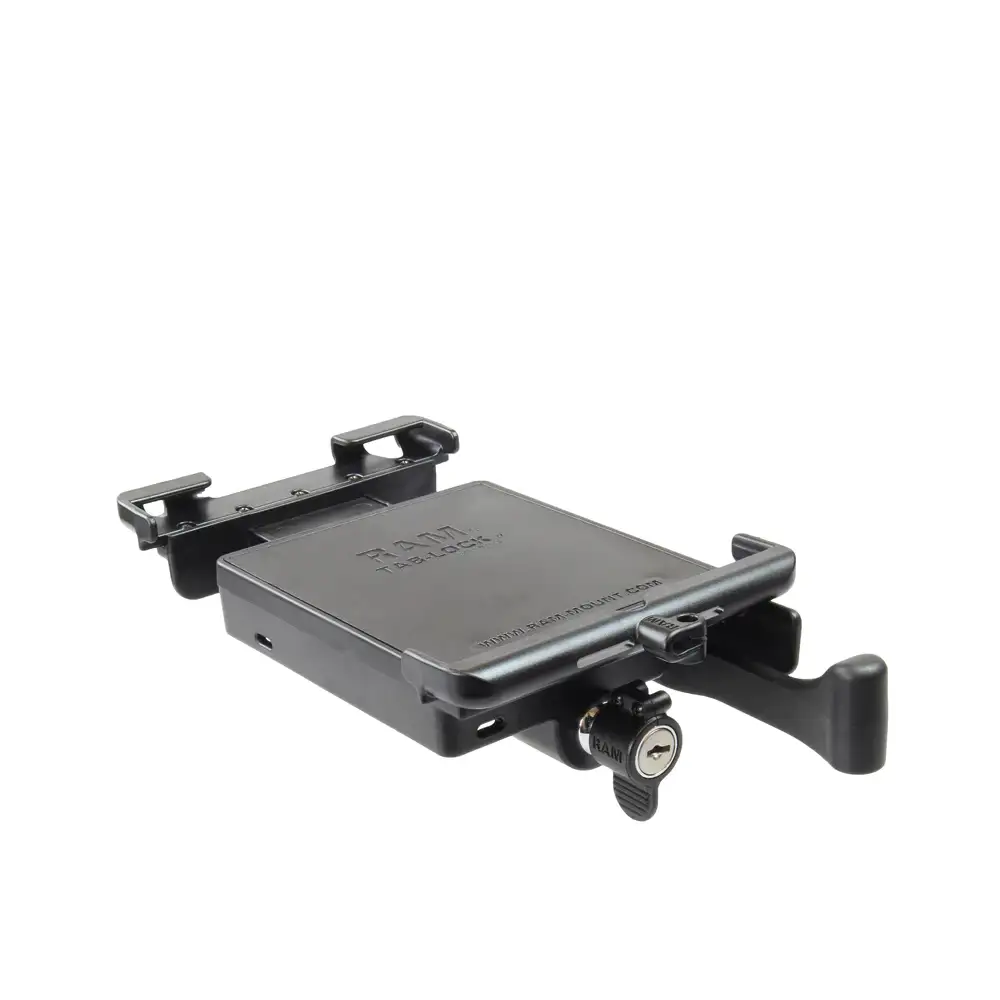

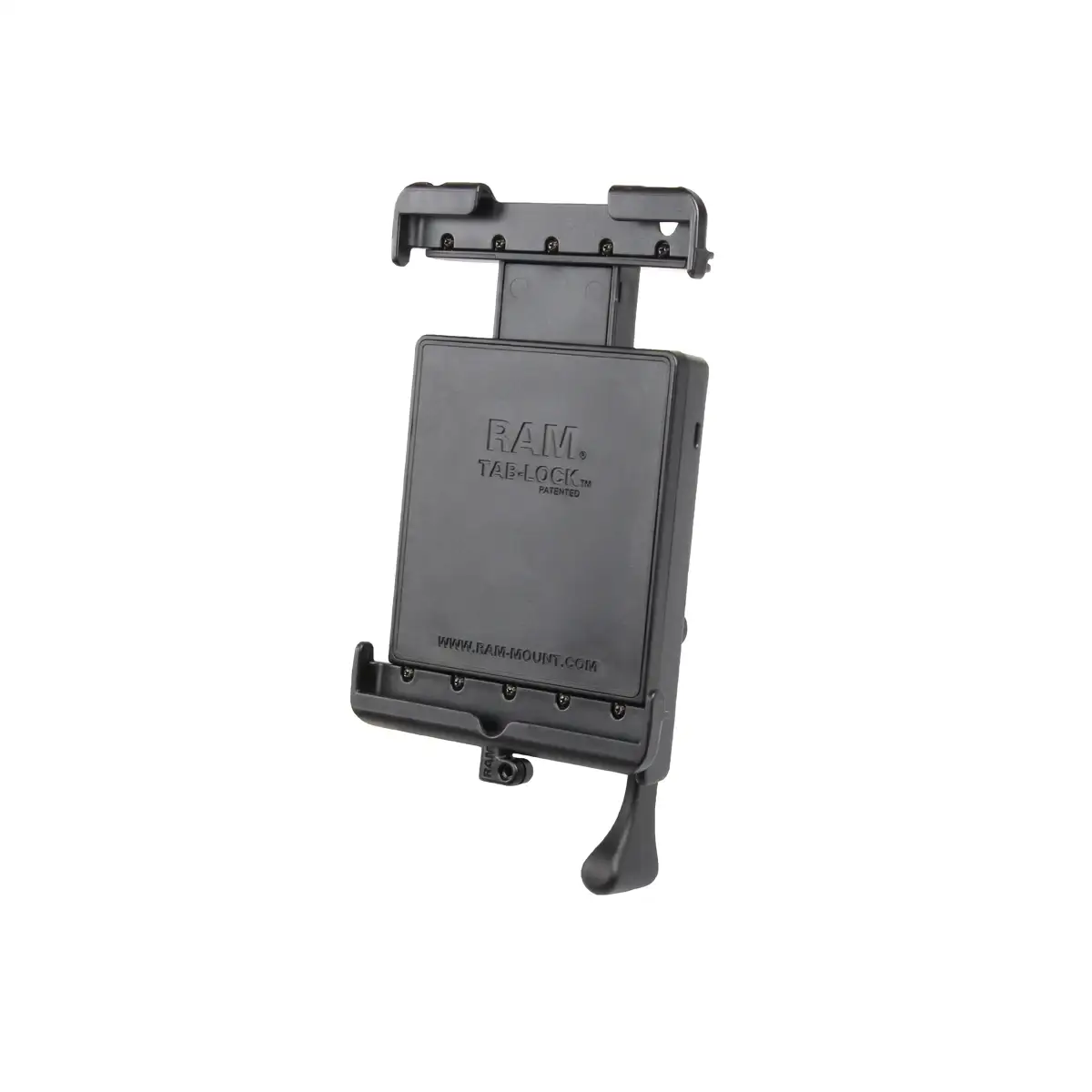

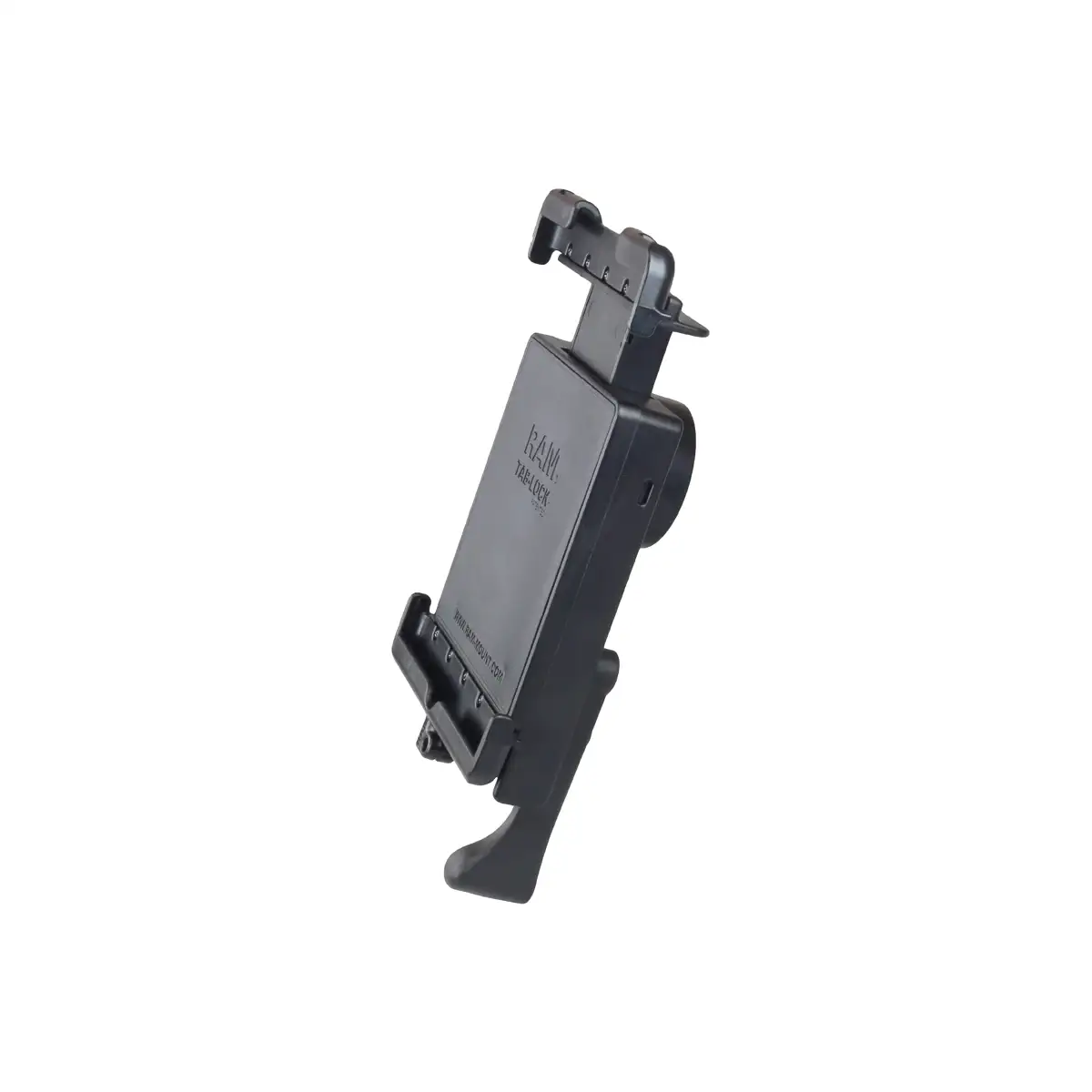

RAM-HOL-TABL11U: RAM Tab-Lock Tablet Holder for iPad mini 1-3

The RAM-HOL-TABL11U consists of a spring loaded backplate, custom support cups and locking mechanism for the iPad mini WITHOUT skin, sleeve or case. This spring loaded design makes it easy to load and unload your iPad mini, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, USB, power, and other ports, your iPad mini can be used just as it was intended. Quickly lock the cradle, keeping your iPad mini secure and safe from theft. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPS hole pattern. The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet.

RAM-HOL-TABL11U FEATURES

• Locking mechanism for theft deterrence
• Support cups contain open slots to accommodate for tablets of various sizes
• Back plate can support various size support cups
• Spring loaded tension provides secure support and quick release for your tablet

HARDWARE INCLUDED

• Assembly Hardware
• (2) #8 x 5/8″ Sheet Metal Screws
• (2) M4 x 32mm Machine Screws
• (2) M4 Nylock Nuts
• (2) Keys
• (1) #4-40 x 3/8″ Machine Screw
• (1) #4-40 Nylock Nut

HOLDER DIMENSIONS

• Height Range: 6.8″ – 10.55″
• Width Range: 5.06″ – 5.31″
• Depth Range: .13″ – .56″

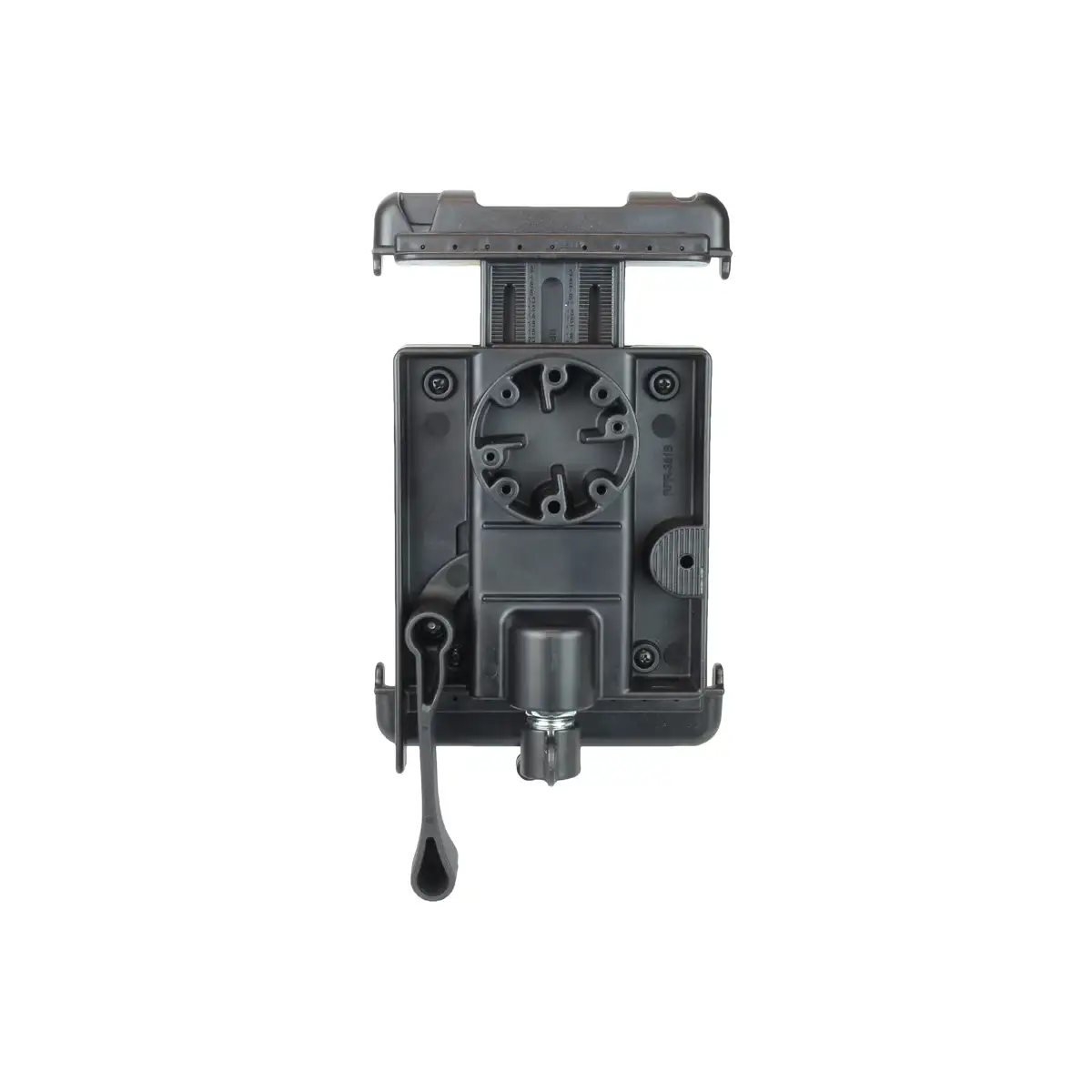

HOLE PATTERN

• 4-Hole AMPS: 1.181″ x 1.496″

MATERIALS

• High strength composite
