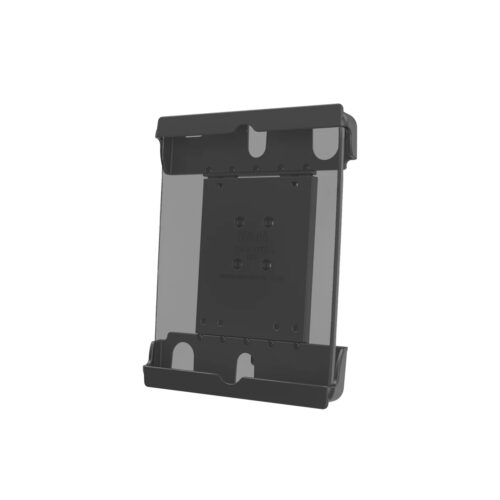

RAM-HOL-TAB20U: RAM Tab-Tite Holder for 9″-10.5″ Tablets with Heavy Duty Cases

The RAM® Tab-Tite™ spring-loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The spring-loaded design makes it easy to insert and remove your tablet, while keeping it secure in a variety of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern. For off road environments and use in open cockpit applications, we recommended the use of a tether to assist in securing your device. The RAM® Tab-Tite™ holder is compatible with any tablet within the listed dimensions.

RAM-HOL-TAB20U FEATURES

• Spring-loaded holder secures most 9″ tablets with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
• Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of high-strength composites for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

HARDWARE INCLUDED

• Assembly Hardware
• (4) #8-32 x 5/8″ Machine Screws
• (4) #8-32 x 1/2″ Machine Screws
• (4) #8-32 Nylock Nuts

HOLDER DIMENSIONS

• Height Range: 9.5″ – 12.125″
• Width Range: 6.55″ – 7.43″
• Depth Range: .3″ – .875″

HOLE PATTERN

• 4-Hole AMPS: 1.181″ x 1.496″

MATERIALS

• High strength composite
