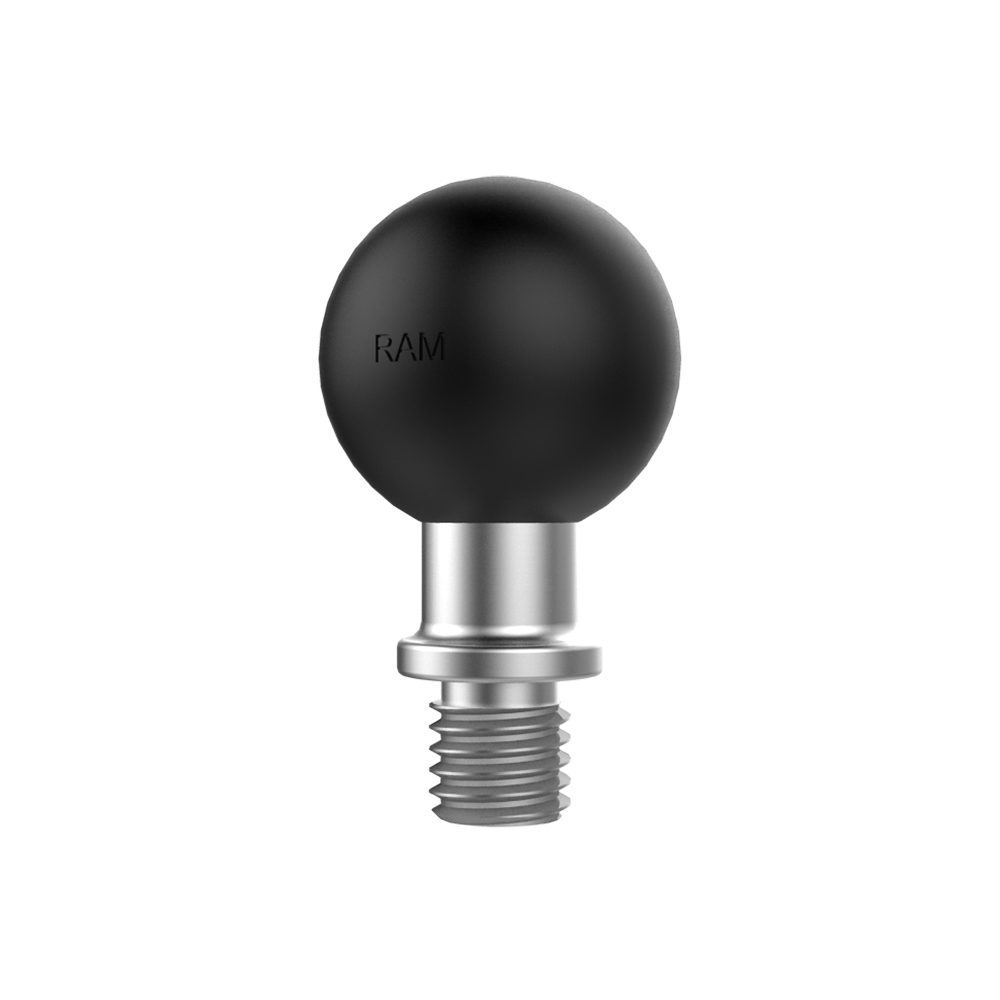

RAM-B-349U: RAM Ball Adapter with M10 X 1.25 Threaded Post

RAM M10 x 1.25 Pitch Male Thread on 1″ Ball

The RAM-B-349U includes a M10 x 1.25 pitch male thread connected to a 1″ rubber ball. The threaded hole must contain the following dimensions for this base to fit: M10 1.25 pitch with a 14.5mm flange diameter with a 10.15mm thread length.

THREAD PITCH

M10-1.25 x 7/16″

BALL SIZE

B Size (1″)

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
