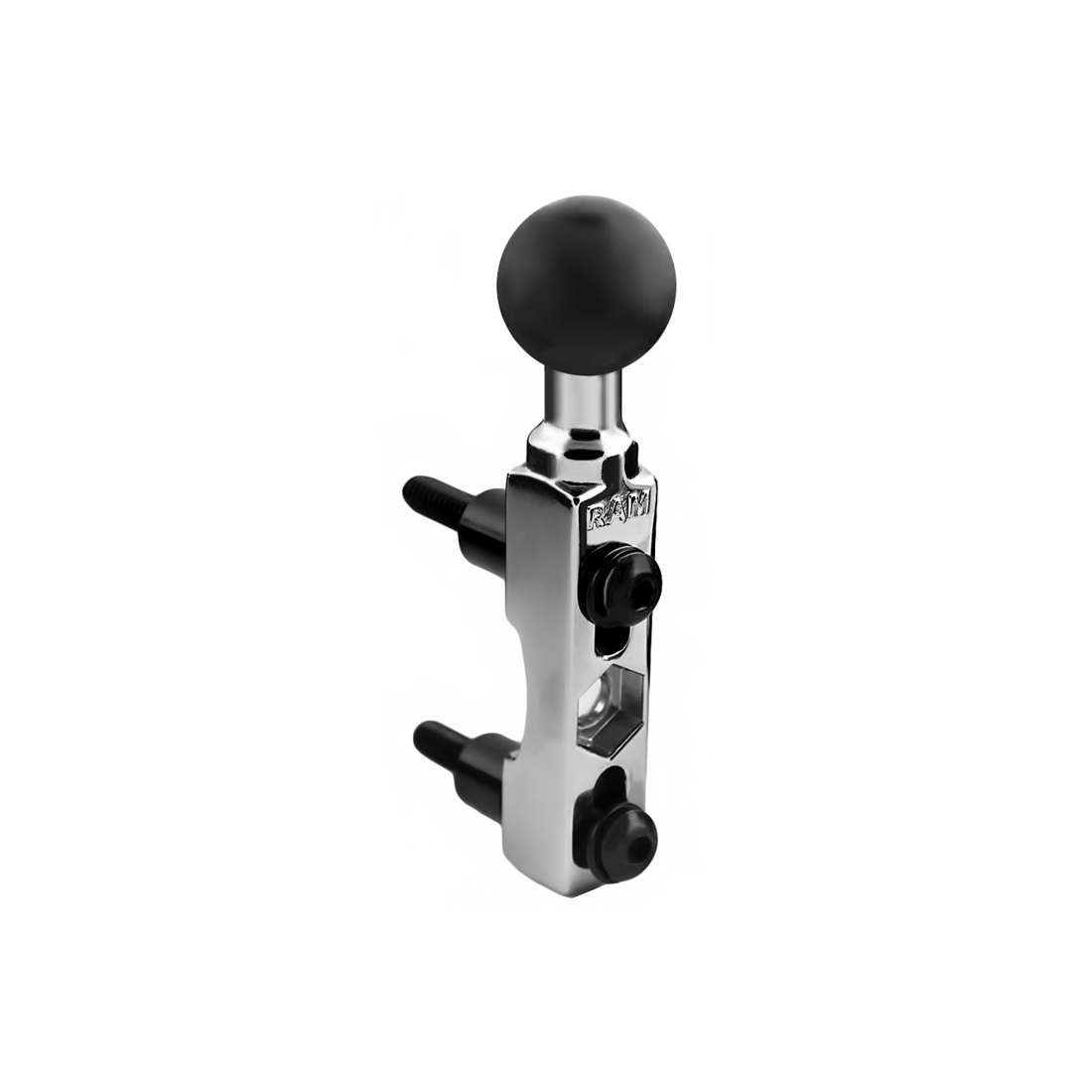

RAM-B-309-1CHU: RAM Chrome Motorcycle Brake/Clutch Reservoir Ball Base
MPN: RAM-B-309-1CHU
$54.95
Out of Stock (On Order)

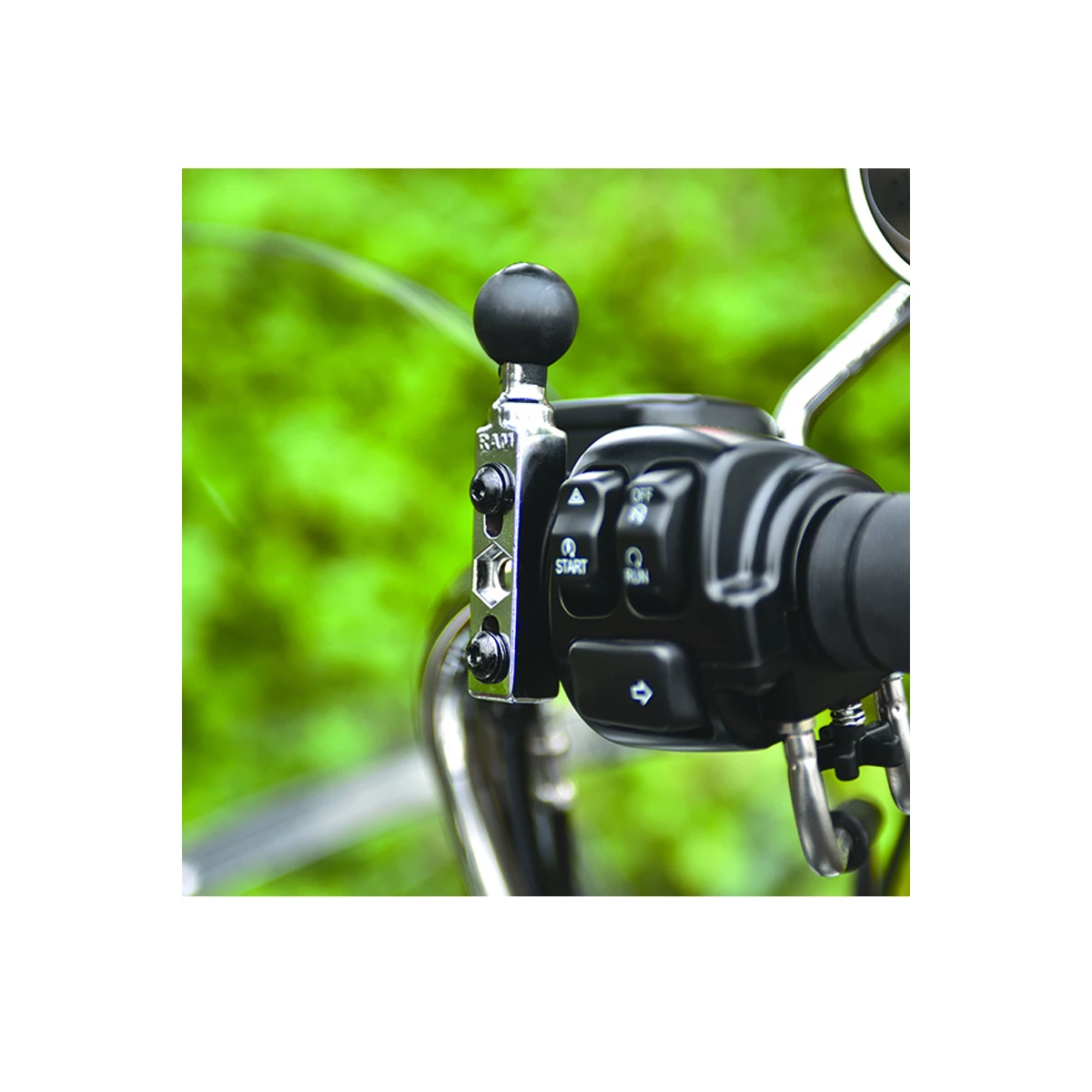

The RAM-B-309-1CHU connects to your handlebar clutch/brake clamp, left or right side, and holds one 1″ diameter mounting ball. The chrome base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware, provided in the kit. To see if the RAM-B-309-1CHU base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94″ and a maximum of 1.58″. This base allows for an additional mount using the RAM Motorcycle 1″ Ball Adapter.
HARDWARE INCLUDED
- (2) M6 x 55mm Hex Bolts
- (2) #1/4-20 x 2″ Hex Bolts
- (2) 1/4″-20 x 2.5″ Hex Bolts
- (2) 1/2″ Spacers
- (2) 1/4″ Split Lock Washers
WEIGHT CAPACITY
- Standard Use: 2 lbs
- Heavy-Duty Use: 1 lb
| Weight | 0.32 lbs |
|---|---|
| Dimensions | 4 × 1 × 1 in |
| Brand | RAM Mounts |
