RAM-B-238U-INT1: RAM Diamond Ball Base with Mounting Hardware

RAM Diamond Plate 2.43″ x 1.31″ with B Size 1″ Ball and Hardware Pack

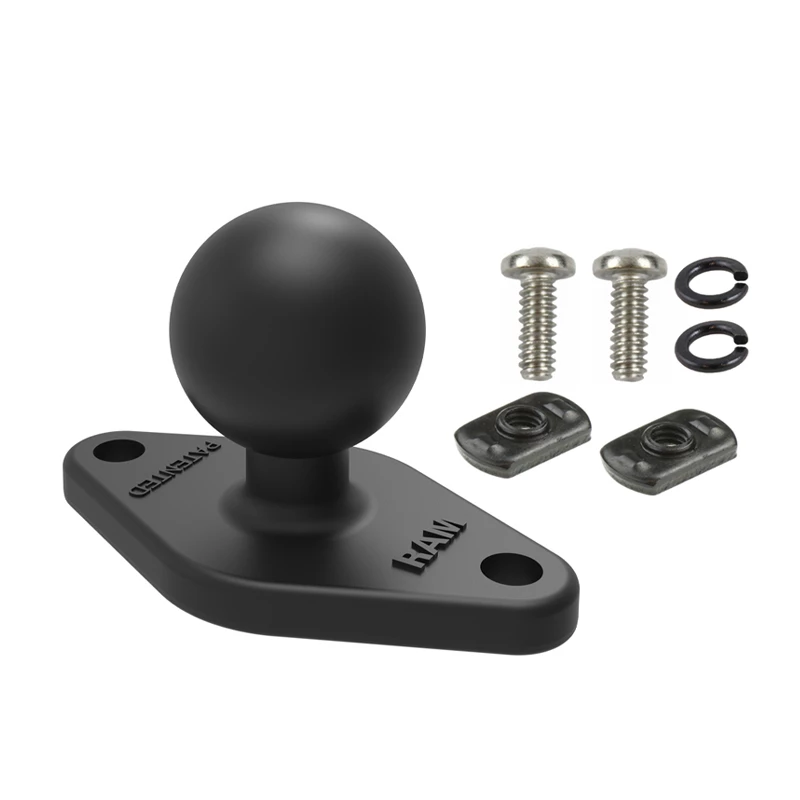

The RAM-B-238U-INT1 consists of a 1″ diameter rubber ball connected at right angles to a 2.43″ x 1.31″ diamond base. The base has two holes 1.912″ from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles.

HARDWARE INCLUDED

• (2) #10-32 x 7/16″ Machine Screws
• (2) #10 Stainless Steel Lock Washers
• (2) #10-32 Flat Weld Nuts

HOLE PATTERN

• 2-Hole AMPS: 1.912″

BALL SIZE

• B Size (1″)

WEIGHT CAPACITY

• Standard Use: 2 lbs
• Heavy-Duty Use: 1 lb

MATERIALS

• Marine-grade aluminum
