RAM-B-231ZU: RAM Handlebar U-Bolt Base for Rails 0.5″ to 1.25″ in Diameter

RAM Rail Base with B Size 1″ Ball. Zinc Coated U-Bolt for Rails from 0.5″ to 1.25″ in Diameter

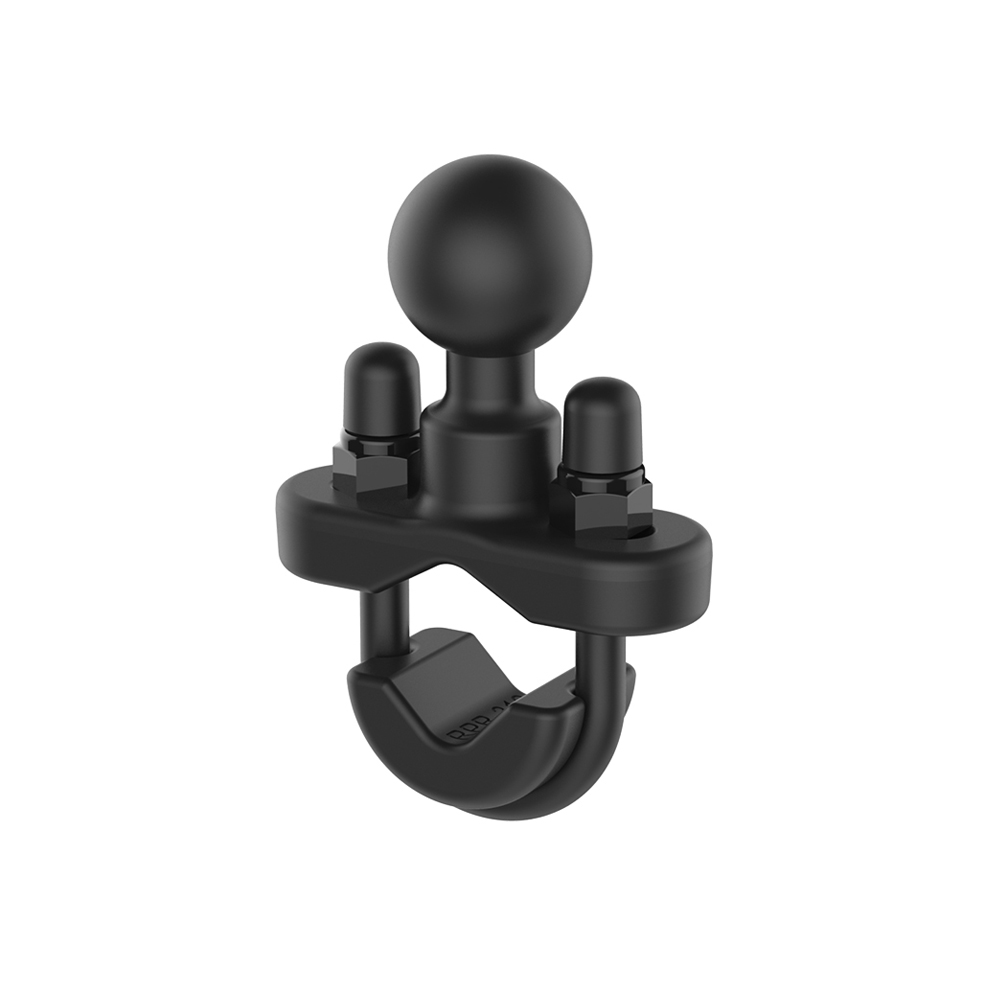

The RAM-B-231ZU consists of a B size 1″ rubber ball designed to sit at right angles to the mounting rail. The zinc coated metal u-bolt accommodates rails in diameter from 0.5″ to 1.25″ in diameter. Included are black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 0.5″.

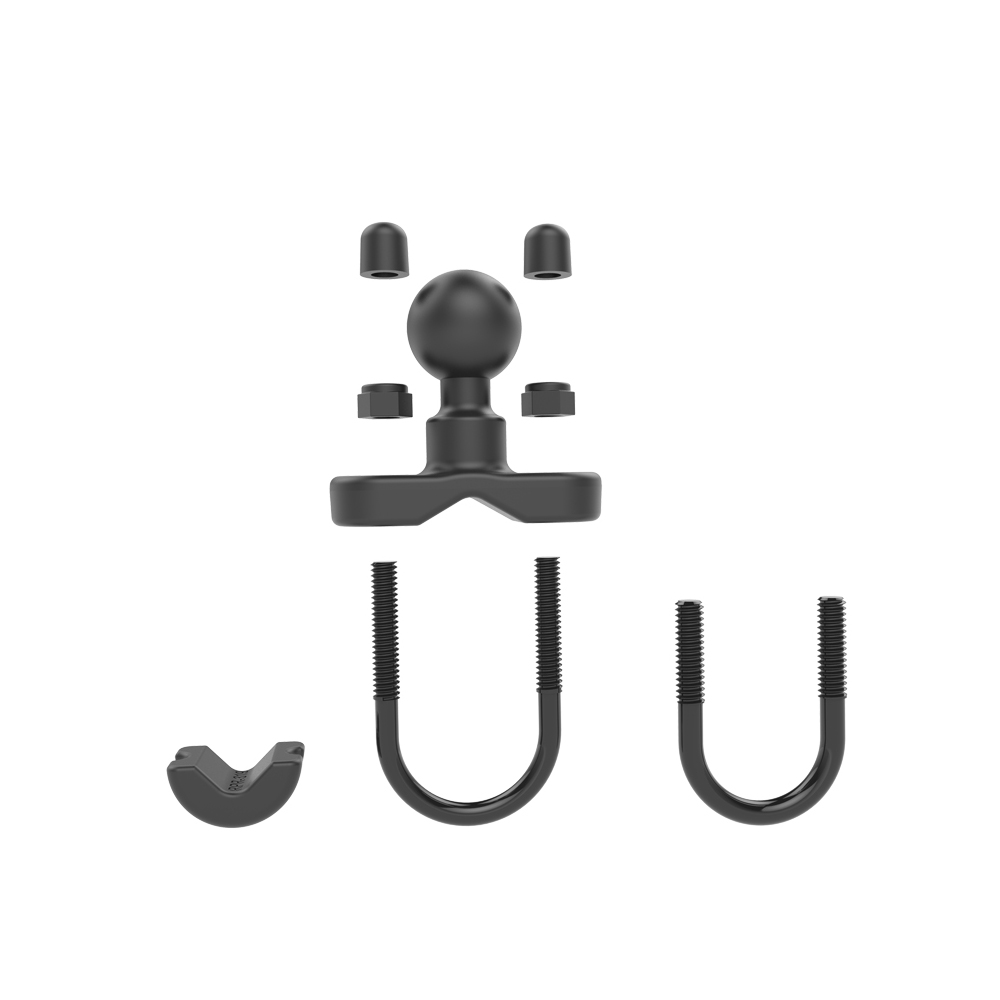

Hardware Included:

• (1) 1/4″-20 U-Bolt for .5″ – 1″ Rails
• (1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails
• (2) 1/4″-20 Nylock Nuts
• (2) Rubber Caps
• (1) U-Bolt Spacer

Weight:

• 0.28 lbs.

U-Bolt Dimensions:

• Accommodates rails from 0.5″ to 1.25″ in diameter.

Ball Size:

• 1″ Rubber Ball “B” Size

Material:

• Powder Coated Marine Grade Aluminum
