RAM-B-231Z-2U: RAM ATV/UTV Ball Base for Rails up to 3.15″ in Diameter
MPN: RAM-B-231Z-2U
$32.95
Designed for a clean installation, RAM-B-231Z-2 base accommodates most common tubing sizes on UTV’s and ATV’s, allowing for the placement of the RAM rubber ball base.
In stock

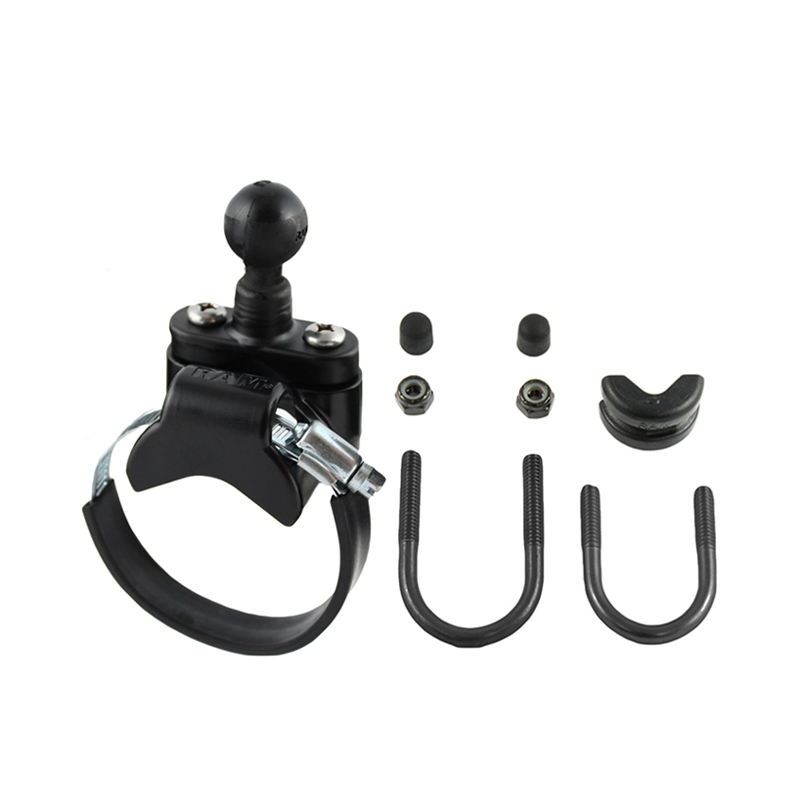

RAM Rail Base with Zinc Coated U-Bolt, ATV/UTV Strap & 1″ Ball for Rails to 3.15″ in Diameter
Designed for a clean installation, RAM-B-231Z-2 base accommodates most common tubing sizes on UTV’s and ATV’s, allowing for the placement of the RAM rubber ball base. Safely concealing a strap clamp in a compact housing, you won’t have to worry about exposed sharp edges or unwanted loosening. Included in the kit is a zinc coated metal u-bolt, this allowing you to modify the mount to accommodate mounting location. The base also includes black cover caps to be placed over the exposed ends of the u-bolt.
HARDWARE INCLUDED
- (1) Strap Clamp Adapter
- (2) 1/4″-20 x 1″ Machine Screws
- (2) 1/4″-20 Nylock Nuts
- (1) Zinc Worm Drive Strap Clamp
- (1) 6″ Rubber Strip
- (1) 1/4″-20 U-Bolt for .5″ – 1″ Rails
- (1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails
- (2) Rubber Caps
- (1) U-Bolt Spacer
CLAMP RANGE
- U-Bolt: .5″ – 1.25″ diameter
- Strap Clamp: 1.57″ – 3.15″ diameter
BALL SIZE
- B Size (1″)
WEIGHT CAPACITY
- Standard Use: 2 lbs
- Heavy-Duty Use: 1 lb
MATERIALS
- Marine-grade aluminum
- High strength composite
WEIGHT
- 0.45 lbs.
| Weight | 0.49 lbs |
|---|---|
| Dimensions | 6 × 4 × 1.25 in |
| Brand | RAM Mounts |
