RAM-B-231U: RAM Handlebar U-Bolt Base for Rails 0.5″ to 1″ in Diameter
MPN: RAM-B-231U
$23.95

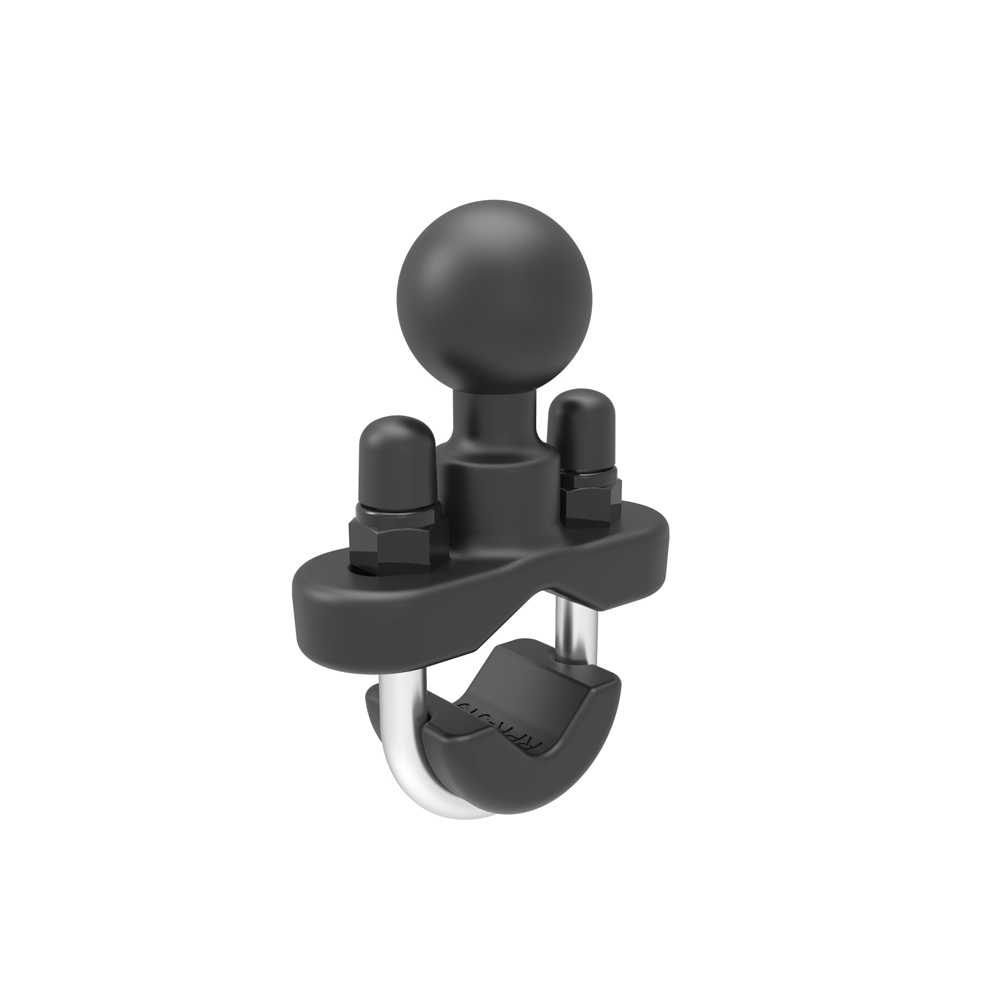

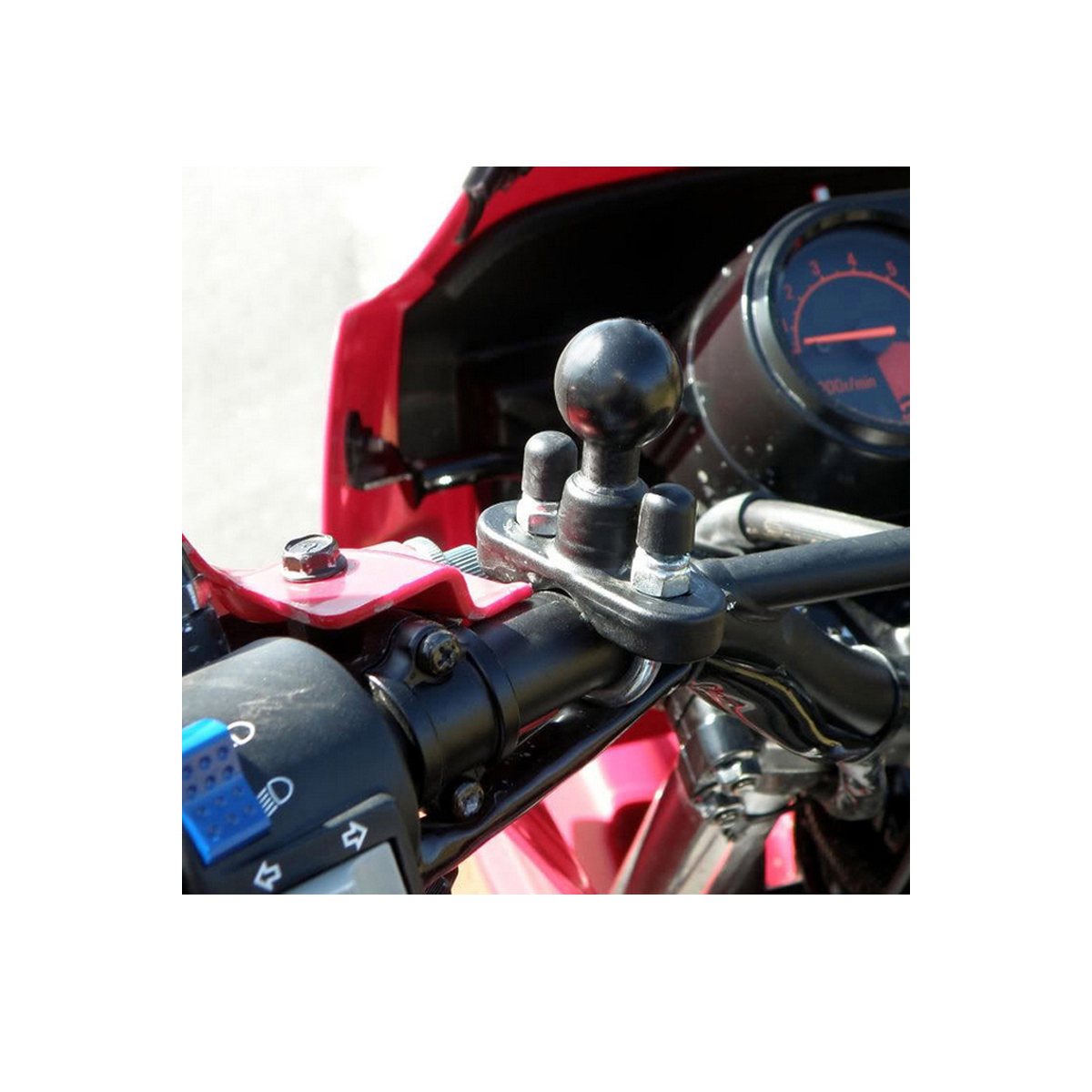

The RAM-B-231U consists of a 1″ rubber ball designed to sit at right angles to the mounting rail. The rust proof metal u-bolt accommodates rails in diameter from 0.5″ to 1″ in diameter.
In stock
RAM Rail Base with Stainless Steel U-Bolt & 1″ Ball for Rails from 0.5″ to 1″ in Diameter
The RAM-B-231U consists of a 1″ rubber ball designed to sit at right angles to the mounting rail. The rust proof metal u-bolt accommodates rails in diameter from 0.5″ to 1″ in diameter. Included are black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 0.5″.
HARDWARE INCLUDED
- (1) 1/4″-20 U-Bolt for .5″ – 1″ Rails
- (2) 1/4″-20 Nylock Nuts
- (2) Rubber Caps
- (1) U-Bolt Spacer
CLAMP RANGE
- 0.5″ – 1″ diameter
BALL SIZE
- B Size (1″)
WEIGHT CAPACITY
- Standard Use: 2 lbs
- Heavy-Duty Use: 1 lb
MATERIALS
- Marine-grade aluminum
WEIGHT
- 0.21 lbs.
| Weight | 0.19 lbs |
|---|---|
| Dimensions | 3 × 3 × 1 in |
| Brand | RAM Mounts |
