RAM-B-231-2: RAM ATV/UTV Ball Base for Rails up to 3.15″ in Diameter
MPN: RAM-B-231-2
$32.95
The RAM-B-231-2 consists of a 1″ diameter rubber ball connected at right angles to a base that contains a flexible metal strap.
In stock
RAM Rail Base with Stainless Steel U-Bolt, ATV/UTV Strap & 1″ Ball for Rails to 3.15″ in Diameter
The RAM-B-231-2 consists of a 1″ diameter rubber ball connected at right angles to a base that contains a flexible metal strap. The strap base tightening screw is encased in a compact housing for a clean, safe finish. The strap is long enough to wrap around handle bar posts found on most ATV, UTV, Snowmobiles, Motorcycles and any other applications you can think of.

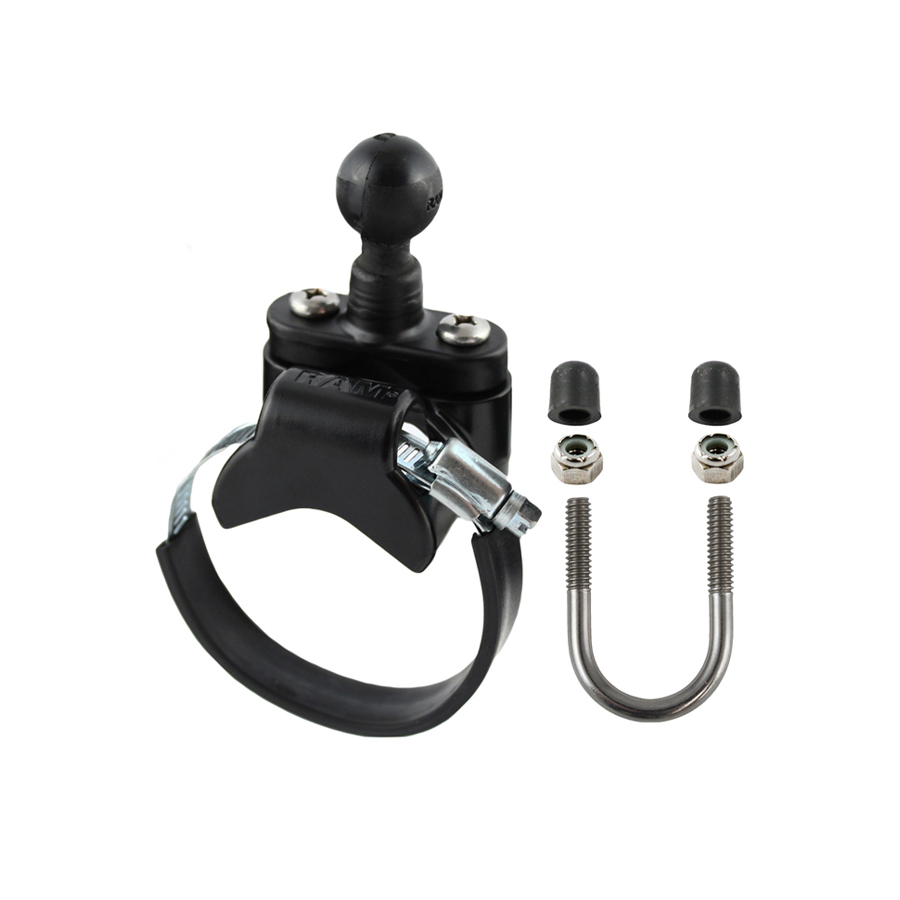

HARDWARE INCLUDED
- (1) Strap Clamp Adapter
- (2) 1/4″-20 x 1″ Machine Screws
- (2) 1/4″-20 Nylock Nuts
- (1) Zinc Worm Drive Strap Clamp
- (1) 6″ Rubber Strip
- (1) 1/4″-20 U-Bolt for .5″ – 1″ Rails
- (2) Rubber Caps
- (1) U-Bolt Spacer

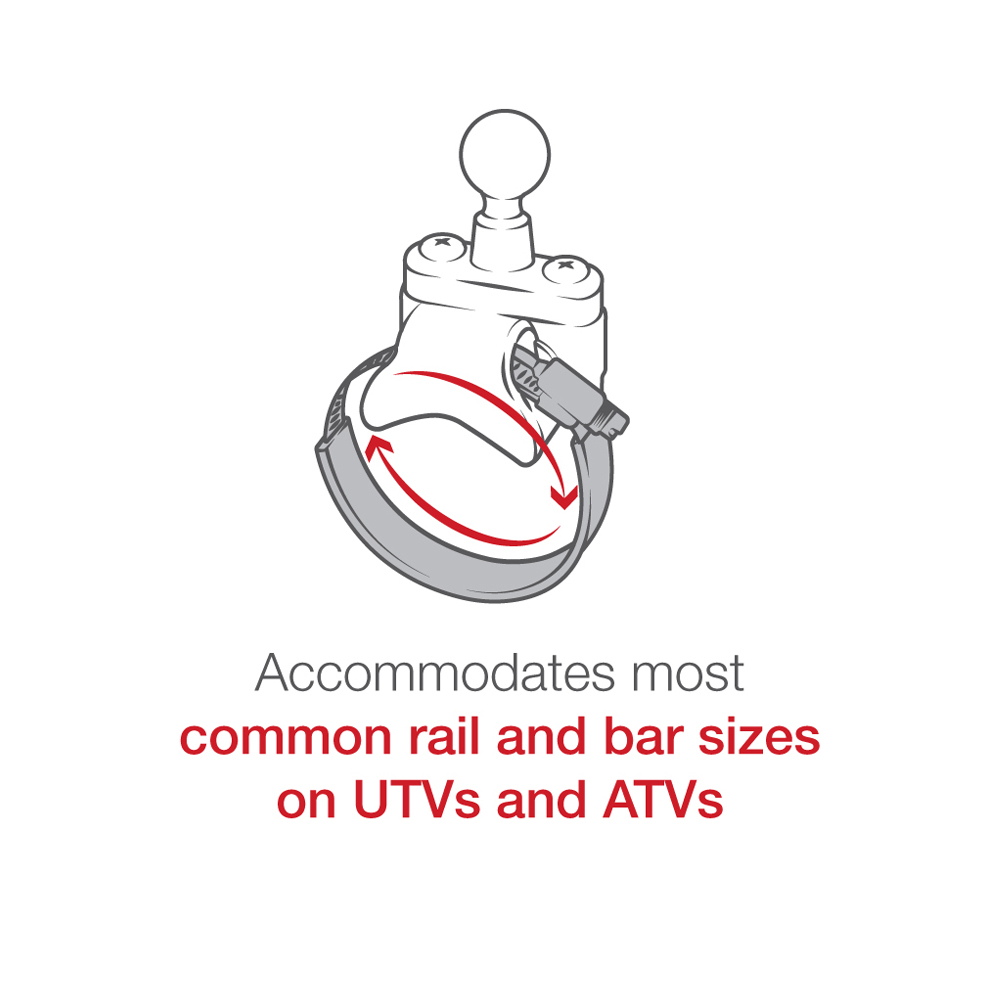

CLAMP RANGE
- U-Bolt: .5″ – 1″ diameter
- Strap Clamp: 1.57″ – 3.15″ diameter
BALL SIZE
- B Size (1″)
WEIGHT CAPACITY
- Standard Use: 2 lbs
- Heavy-Duty Use: 1 lb
MATERIALS
- Marine-grade aluminum
- High strength composite
WEIGHT
- 0.5 lbs.
| Weight | 0.45 lbs |
|---|---|
| Dimensions | 5 × 4 × 1.5 in |
| Brand | RAM Mounts |
