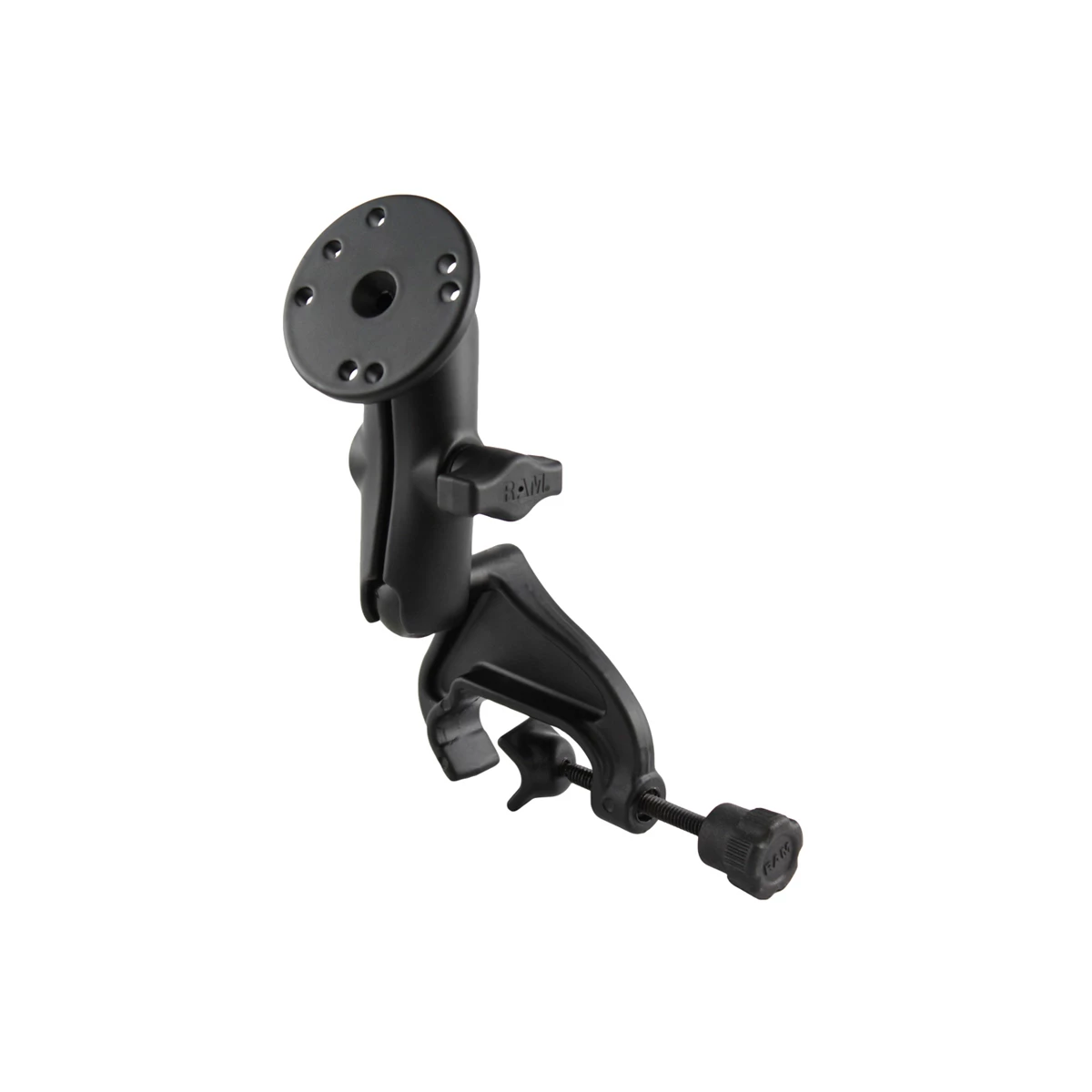

RAM-B-121-202U: Double Ball Yoke Clamp Mount with Round Plate

The RAM-B-121-202U consists of a yoke clamp base (RAM-B-121BU), standard length double socket arm (RAM-B-201U) and round 2.5″ base (RAM-B-202U) that contains the universal AMPs hole pattern. The yoke clamp base will fit rails in diameter from 0.625″ to a maximum of 1.25″. The 1″ rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.

FEATURES

• Yoke clamp base fits rails from .625″ to 1.25″ in diameter
• Round plate features industry-standard AMPS hole pattern; connects to a variety of RAM® device holders
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

CLAMP RANGE
.625″ – 1.25″

SOCKET-TO-SOCKET LENGTH
3″

HOLE PATTERN

• 4-Hole AMPS: 1.181″ x 1.496″
• 3-Hole 120-Degree: 1.812″ Diameter

BALL/SOCKET SIZE
B Size (1″)

WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.74 lbs.
