RAM V-Shape Base with 1″ Ball for Rails and Yokes

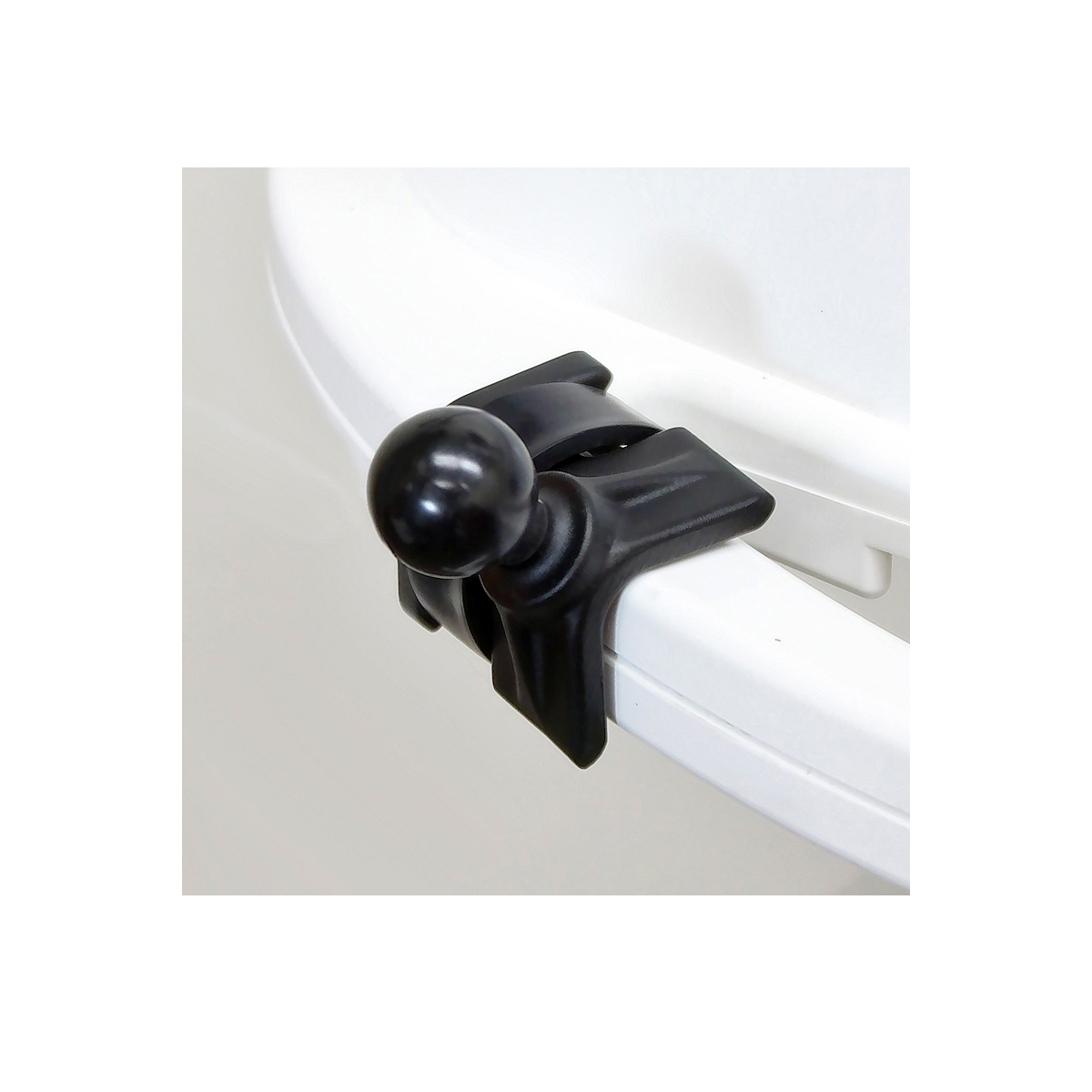

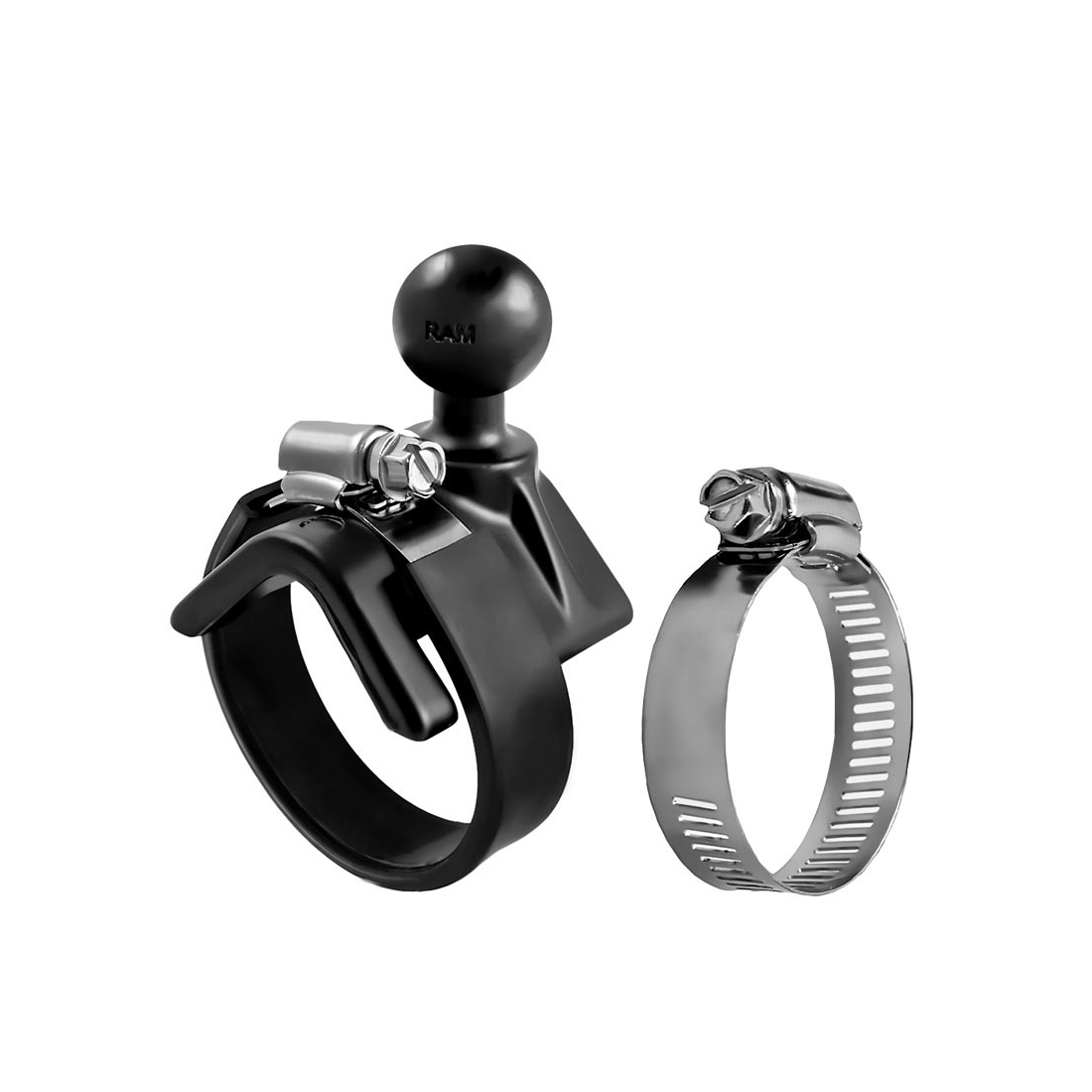

The RAM-B-108BU consists of a 1″ diameter rubber ball connected at a right angle to a v-shaped base. The RAM-B-108BU accommodates rails from 1.0″ to a maximum of 2.1″ in diameter. To mount the RAM-B-108BU base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the strap has a firm hold on the rail. The RAM-B-108BU is an alternative mounting base for Beechcraft airplanes with a “throw over yoke”.
Weight:
0.28 lbs.
Clamp Dimensions:
1″ to 2.1″
Ball Size:
1″ Rubber “B” Ball Size
Material:
Powder Coated Marine Grade Aluminum
Note:
The “U” in the part number reflects product packaged in poly bag.
