RAM-2461U: RAM 75x75mm VESA Plate with 1.5″ Ball

MPN: RAM-2461

$26.95

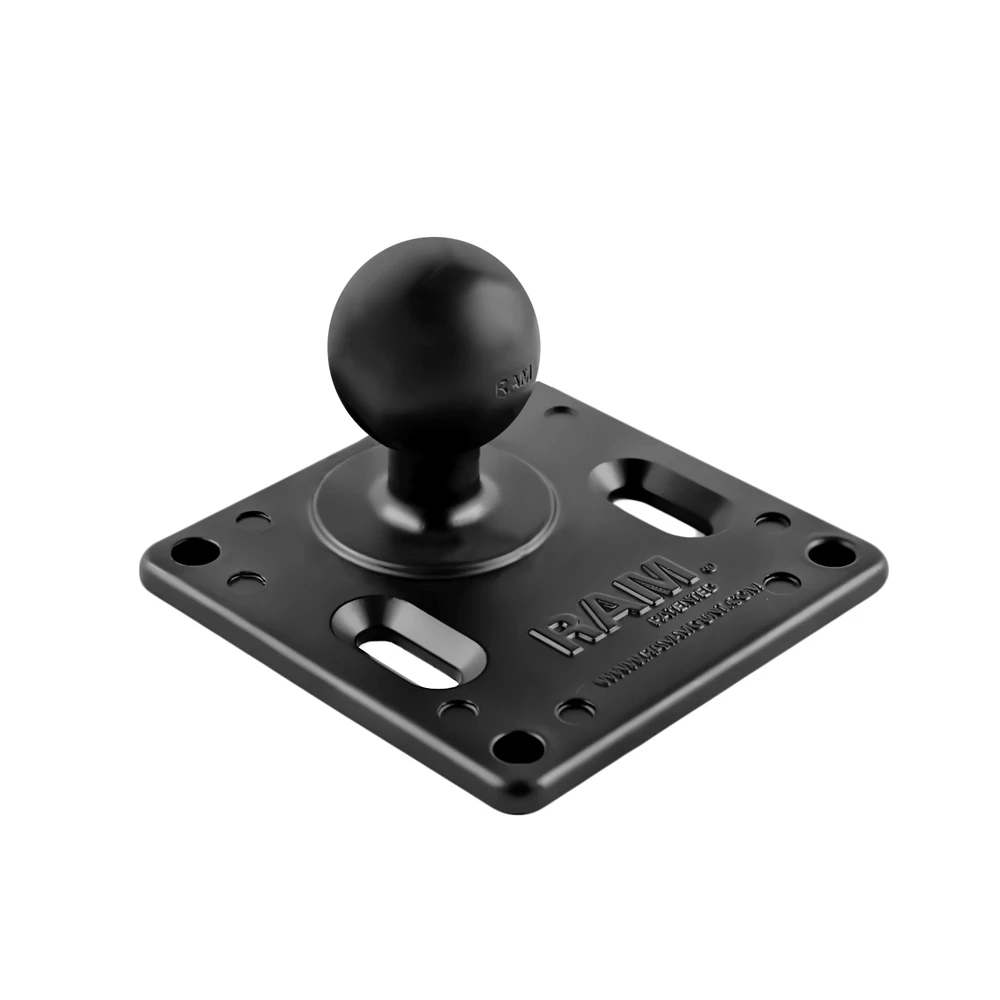

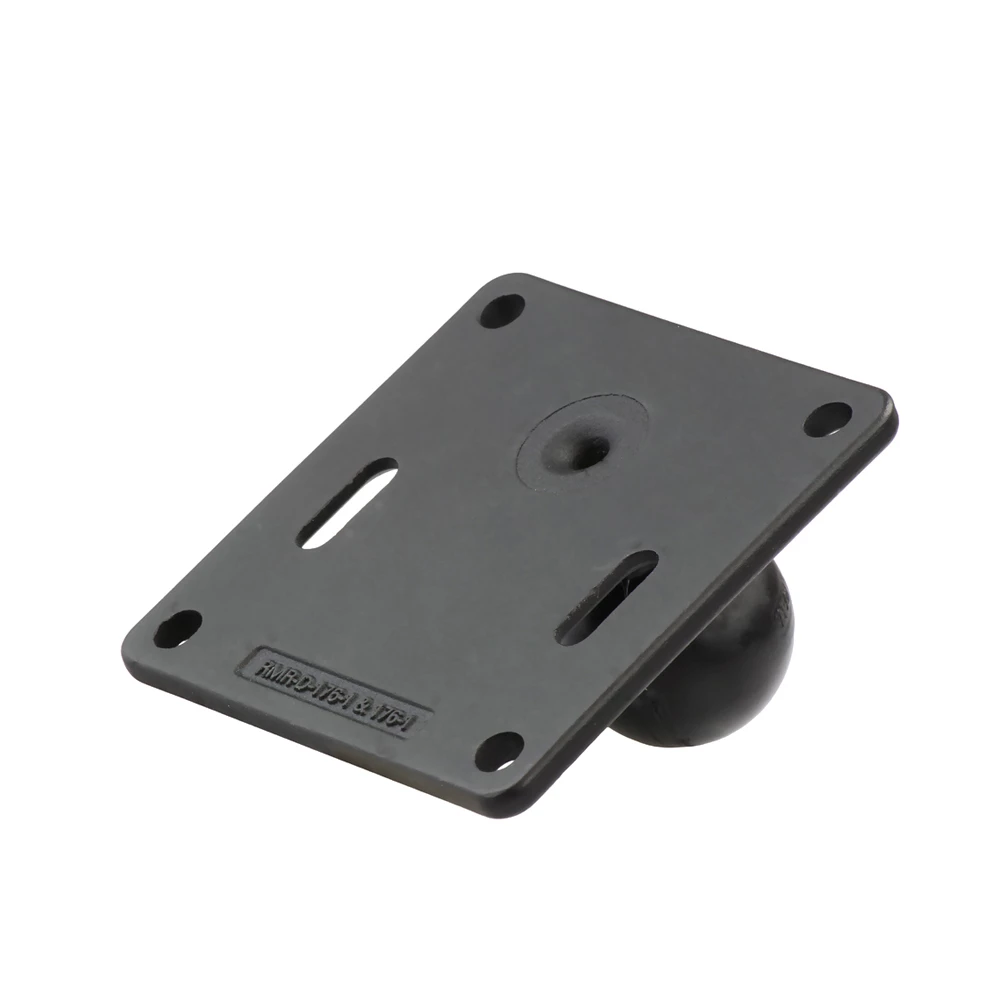

This RAM-2461U consists of a 1.5″ rubber ball, connected to a 3.625″ square plate with a 75mm X 75mm VESA hole pattern. The rubber ball is positioned 0.88″ from the center of one edge.

In stock

SKU: 1344 Categories: , , ,

RAM 75mm X 75mm VESA 3.625″ Plate with 1.5″ Ball

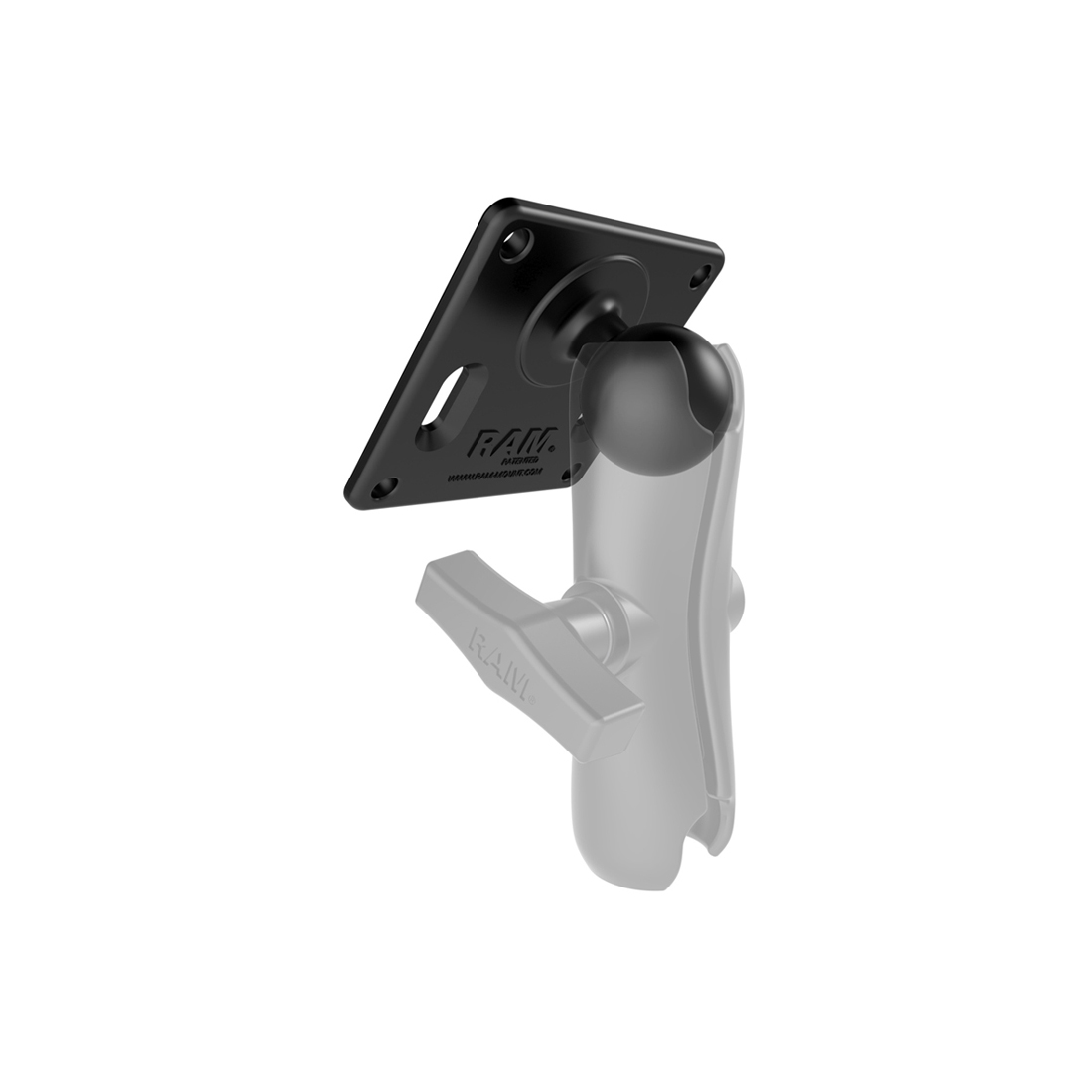

This RAM-2461U consists of a 1.5″ rubber ball, connected to a 3.625″ square plate with a 75mm X 75mm VESA hole pattern. The rubber ball is positioned 0.88″ from the center of one edge. The RAM-2461U will attach to all RAM 1.5″ dia. ball double socket arms.

Weight:
0.40 lbs.

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1.5″ Rubber Ball Size

Note:
The “U” in the part number reflects product packaged in poly bag.

Weight 0.58 lbs
Dimensions 4.75 × 4.75 × 2.25 in
Manufacturer Part Number RAM-2461

Documentation

RAM-2461U Plate Hole Patterns
