RAM-202-153-202U

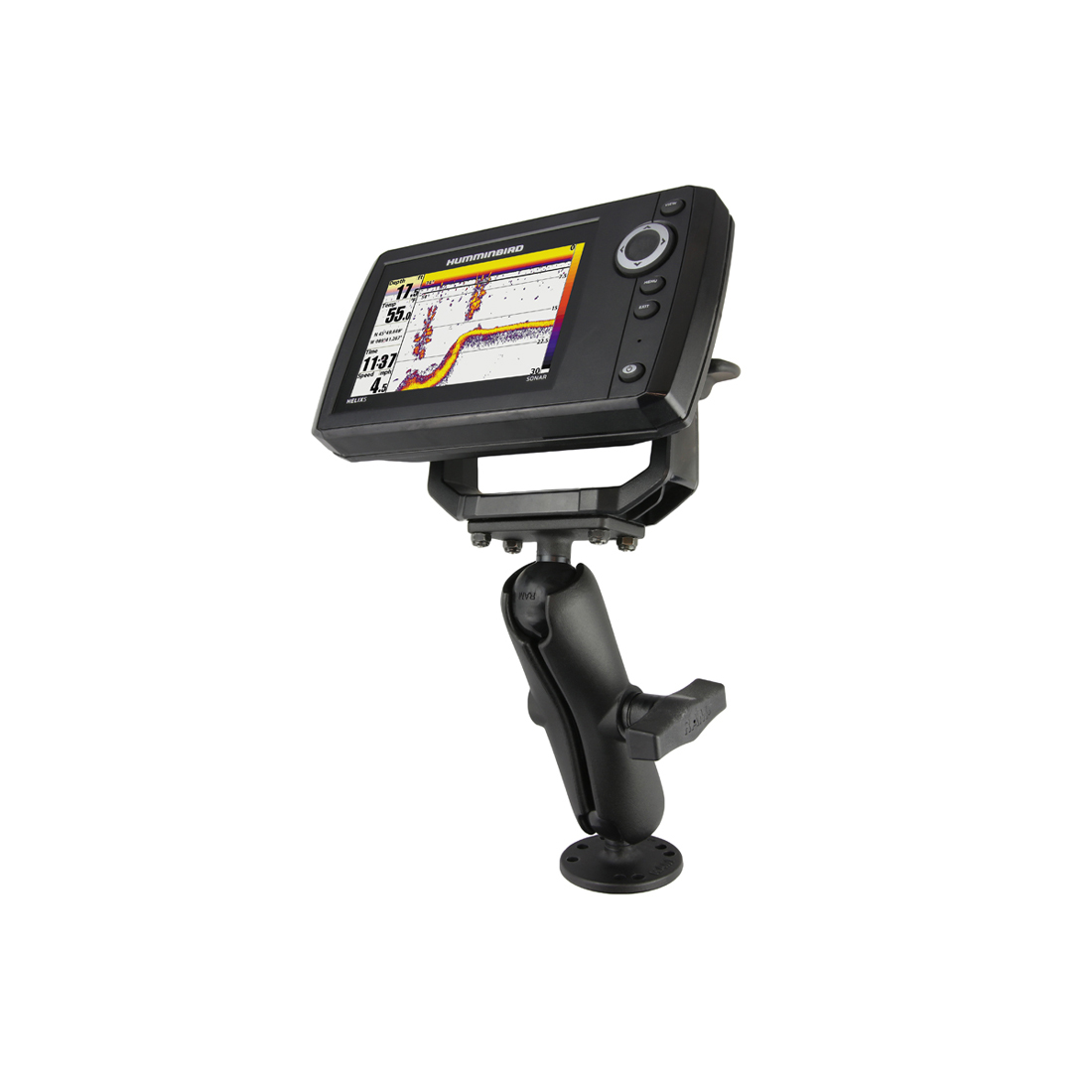

RAM 1.5″ Ball Mount with 2.5″ Round Base & 1.5″ x 3″ Plate for the Humminbird Helix 5 ONLY

Compatible Unit:
• Humminbird Helix 5 Sonar GPS with Nav
• Humminbird Helix 5 SI GPS Combo
• Humminbird Helix 5 SI GPS KVD Combo
• Humminbird Helix 5 DI GPS Combo
• Humminbird Helix 5 Sonar

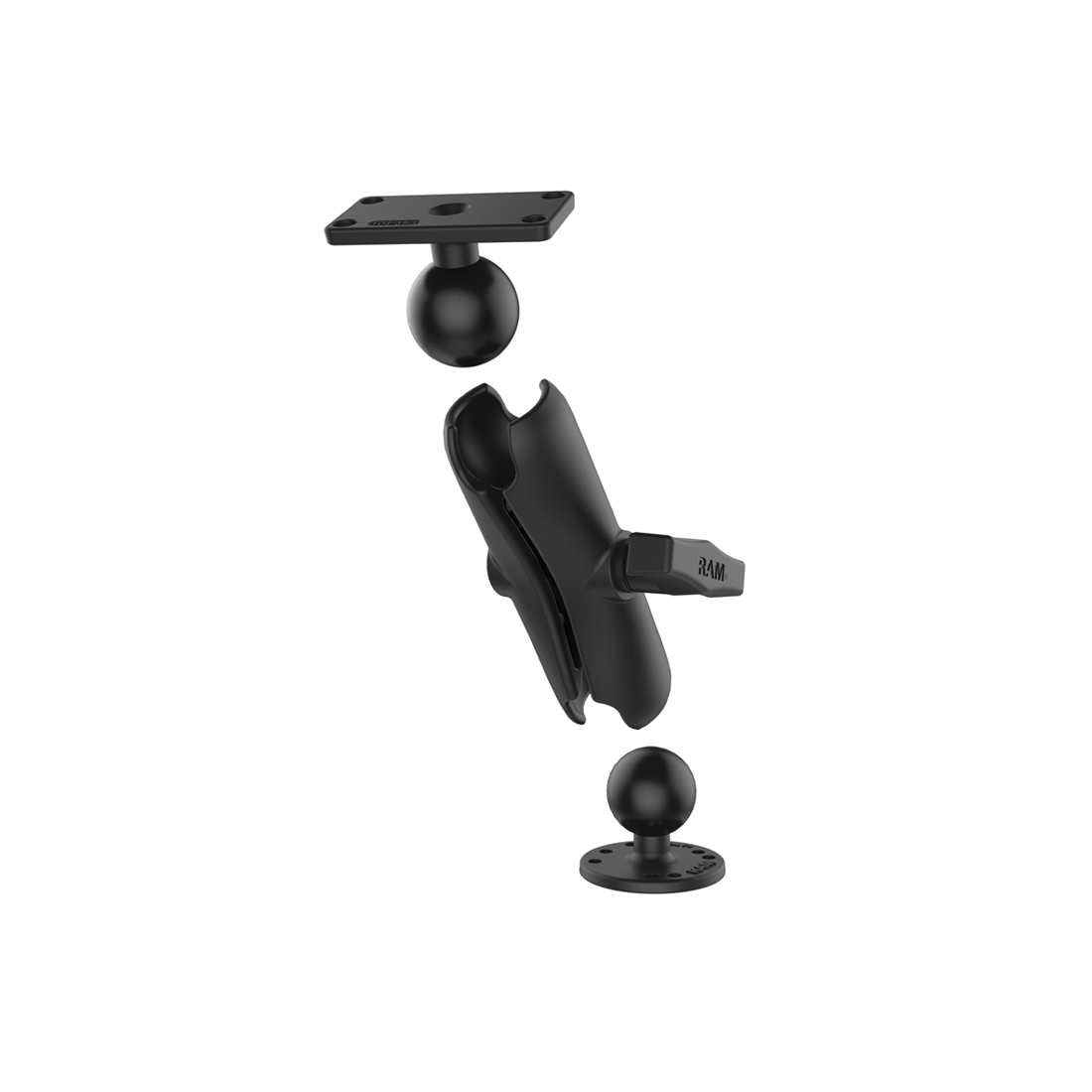

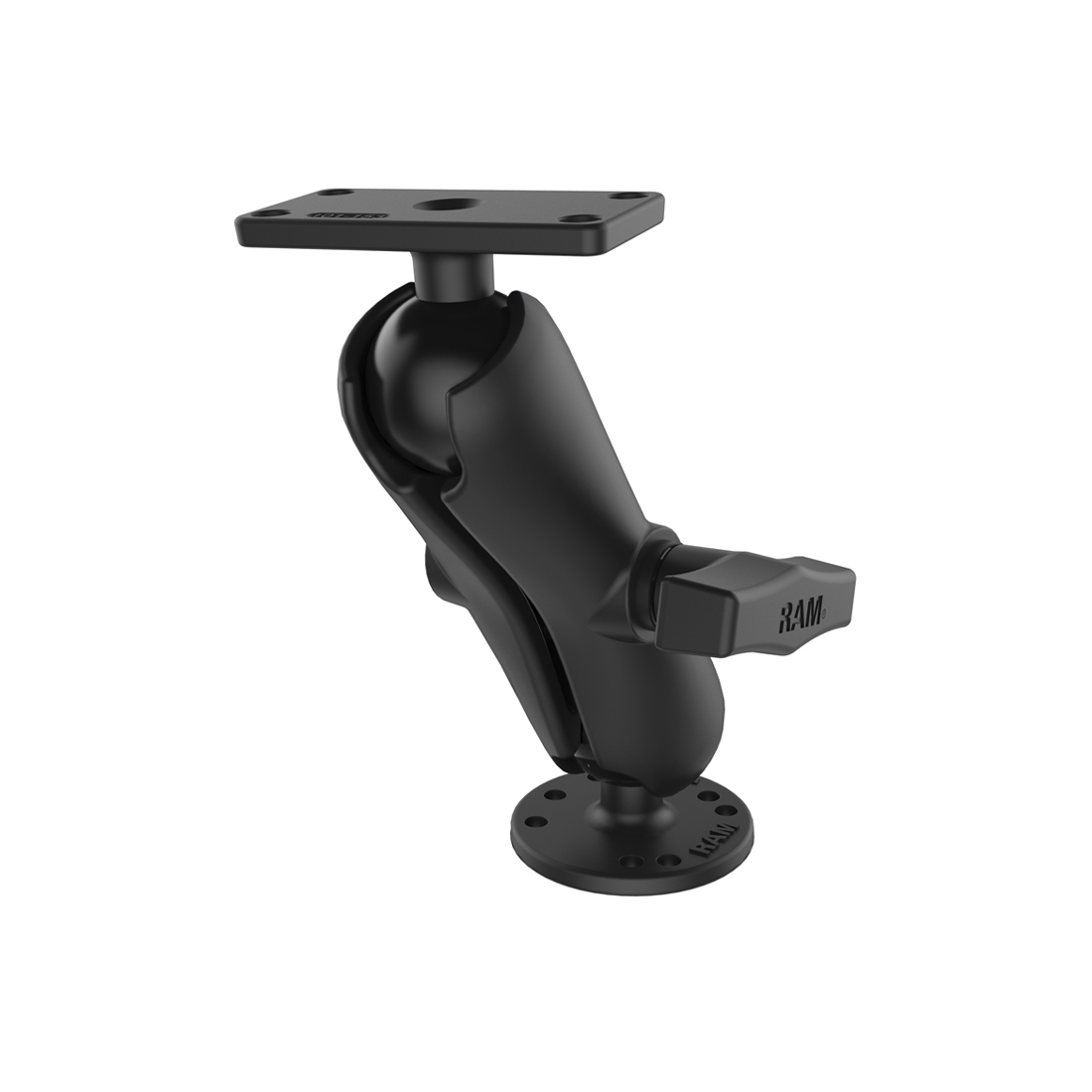

The RAM-202-153-202 consists of a round 2.5″ diameter round base (Universal AMPs Hole Pattern), double socket arm and 1.5″ x 3″ rectangular base. The rectangular base contains four holes with a center to center pattern of 1″ x 2.5″. For most applications, mount will support up to ten pounds.

Center to Center Hole Pattern:
1″ x 2.5″

Weight Capacity:
10 lbs.

Overall Height:
7.35″

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1.5″ Rubber Ball Size

Note:
The “U” in the part number reflects product packaged in poly bag. Hardware for mounting to device not included with purchase.

Weight:
1.15 lbs.
