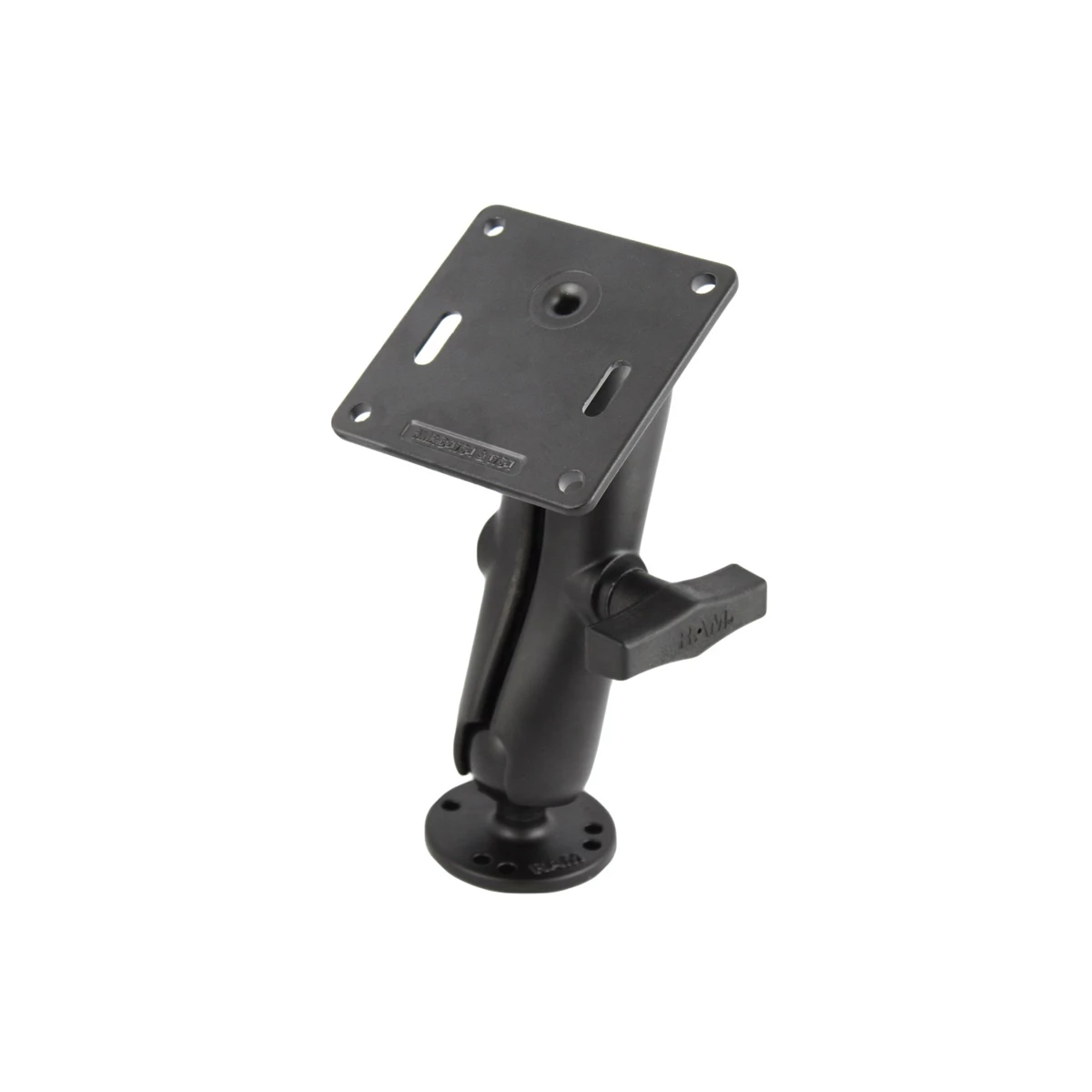

RAM-101U-2461: Double Ball Mount with 75x75mm VESA Plate

The RAM-101U-2461 consists of a STANDARD length double socket arm (RAM-201U), 2.5″ diameter round base with the universal AMPS hole pattern (RAM-202U) and 3.625″ square plate with the VESA hole pattern (RAM-2461U). The VESA plate contains a 75mm X 75mm hole pattern. Designed into the mount is a 1.5″ diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

PRODUCT DIMENSIONS
Overall Height: 7.35″

SOCKET-TO-SOCKET LENGTH
4.66″

HOLE PATTERN
4-Hole AMPS: 1.181″ x 1.496″
3-Hole 120-Degree: 1.812″ Diameter

PLATE SIZE
VESA Plate: 3.625″ x 3.625″
Round Plate: 2.5″ Diameter

BALL/SOCKET SIZE
C Size (1.5″)

WEIGHT CAPACITY
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
1.3 lbs.
