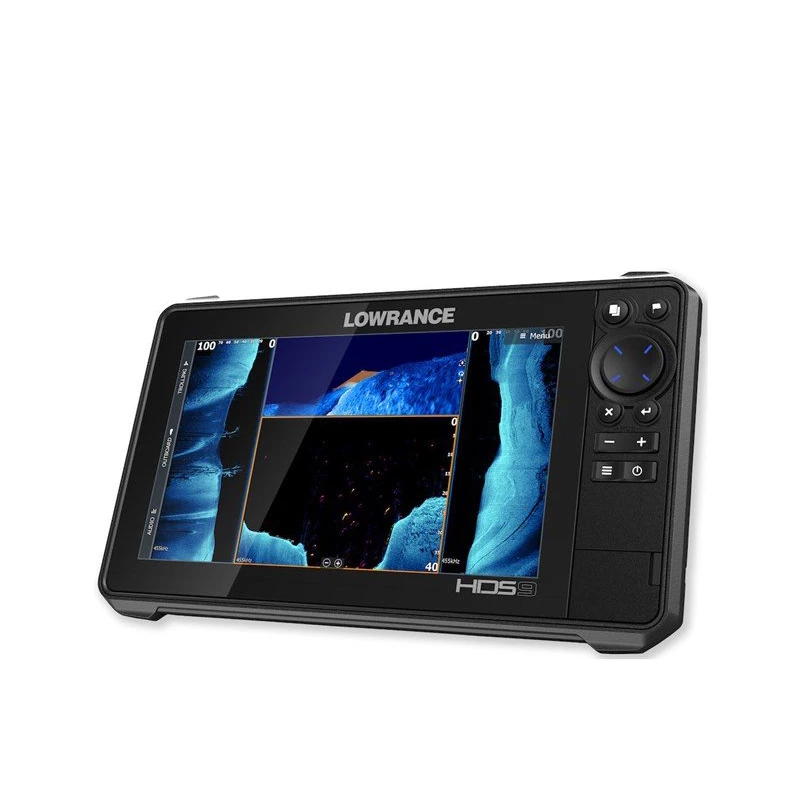

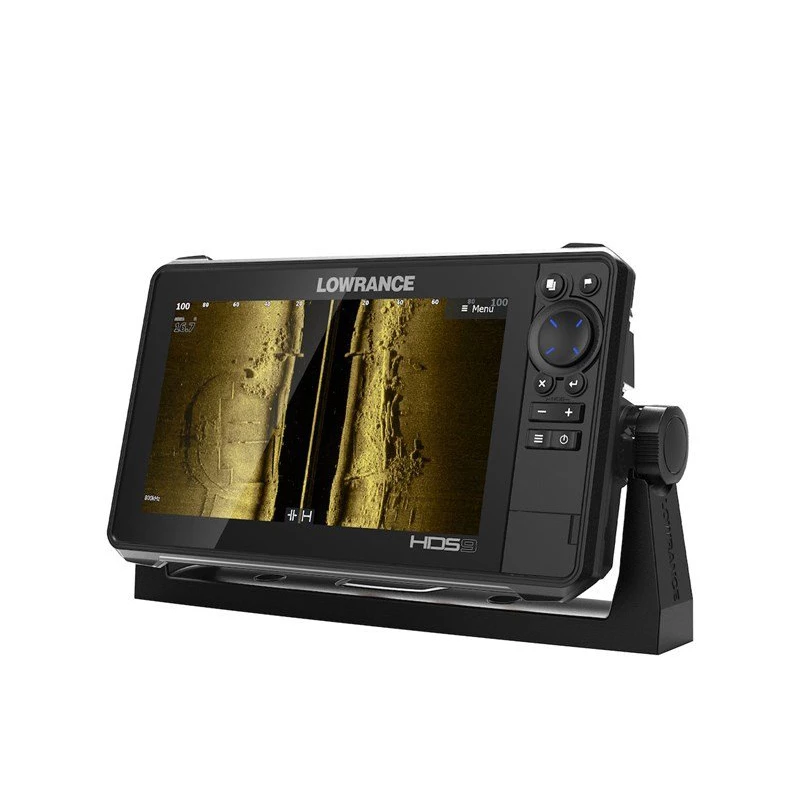

Lowrance HDS 9 Live 3-in-1
MPN: 000-14422-001
This item has been discontinued. No longer available.
With HDS LIVE, we took the most popular fishfinder series on the professional fishing circuit and made it even better for all anglers with a sleek, new design, faster processor, best-ever built-in suite of HDS navigation tools and support for a wide array of new fishfinding technology, unmatched by any other fishfinder.
- Description
- Additional information
- Product Video
- Product Specifications
- Product Guides & Documentation
- Package Includes
- Accessories
With HDS LIVE, we took the most popular fishfinder series on the professional fishing circuit and made it even better for all anglers with a sleek, new design, faster processor, best-ever built-in suite of HDS navigation tools and support for a wide array of new fishfinding technology, unmatched by any other fishfinder.
Prepare yourself for a new level of fishfinding performance with HDS LIVE, which includes built-in Lowrance® CHIRP sonar, support for Active Imaging™, StructureScan® 3D with Active Imaging and revolutionary LiveSight™ Real-Time Sonar. Equipped with the best set of navigation tools ever built into a fishfinder/chartplotter display, HDS LIVE features preloaded C-MAP® US Enhanced Inland and Coastal mapping, automatic routing support and new Genesis Live onscreen mapping offering precision real-time mapping, down to ½-foot contours.
Key features of HDS 9 Live 3-in-1
- Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar ready
- Active Imaging™ 2-in-1 (Side/Down) sonar ready
- StructureScan® 3D with Active Imaging enhancements
- LiveSight real-time sonar compatible
- Smartphone notifications
- High-performance dual-core processor
- C-MAP Genesis Live onscreen mapping
- FishReveal™ Smart Target View
- High-resolution SolarMAX™ HD multi-touch screen
- Preloaded high-detail C-MAP® US Enhanced charts with 1-foot contours on 4,000 lakes
- C-MAP Easy Routing, Navionics Autorouting capability
- Dual-Channel CHIRP – dual sonar-range coverage from the same transducer
- Live Network Sonar
- SiriusXM® Marine Weather and Audio compatible
- Wireless and Bluetooth® connectivity
- Heat Map Chart Overlay
- Enhanced Surface Clarity
- Quick Access Control Bar
- Touchscreen control of MotorGuide® Xi5 Trolling Motor , Outboard Pilot and Power Pole® anchors
- Radar and SonicHub®2 audio server connectivity
- NMEA 2000® engine support
- Optional mapping upgrades include C-MAP, Navionics® and more
| Weight | 10.27 lbs |
|---|---|
| Dimensions | 13.75 × 9.5 × 9.25 in |
| Brand | Lowrance |
Product Video
Product Specifications
|
Lowrance HDS 9 Live 3-in-1 Specifications
|
|
|
Screen Brightness
|
>1200 Nits
|
|
Power Consumption typical
|
2.0A @ 13VDC with Full Backlight, Sonar on
|
|
Power Consumption min
|
2.0A @ 13VDC with Full Backlight, Sonar on
|
|
Update rate
|
10 Hz
|
|
Weather
|
SiriusXM via WM-3 (USA only)
|
|
GPS
|
10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
|
|
Shock Vibration
|
100,000 cycles of 20 G
|
|
Display Resolution
|
1280 x 720
|
|
Supply Voltage
|
12 v DC (10.8-17VDC)
|
|
Compass Safe
|
12″ (300mm)
|
|
GPS Receiver Channels
|
16
|
|
Ethernet Ports
|
1x 100 Mbit, 6 max MFD’s on a network
|
|
NMEA 2000 Connectivity
|
1x Micro-C
|
|
SD Card Storage
|
2 micro SD cards up to 32GB
|
|
Warranty Period
|
2 Year + 3 additional years of upgrade options totaling 5 years
|
|
Power Consumption max
|
2.9A @ 13VDC with Full Backlight, Sonar on
|
|
Position Accuracy
|
20m RMS
|
|
Weight
|
4.14lb (2.00kg)
|
|
Waypoints, Routes, Tracks
|
3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
|
|
Time to First Fix
|
30s
|
|
Storage Temperature Range
|
4°F to 140°F (-20°C to 60°C )
|
|
Radar compatibility
|
4G (Broadband) 3G (Broadband) Halo24 (Pulse Compression Dome Radar) Halo 3’/4’/6′ (Open Array Pulse Compression Radar)
|
|
Dimensions W x H x D
|
6.56in (166.7mm) x 11.02in (280.0mm) x 3.05in (77.7mm)
|
|
Operating Temperature Range
|
|
|
Recommended Fuse Rating
|
5A
|
|
Humidity
|
60°C, 95% relative humidity (RH) for 18 hours
|
|
Internal Storage
|
8.0 GB Internal
|
|
Viewing Angles
|
80° top/bottom, 80° left/right
|
|
AIS
|
AIS Chart and Radar overlay. Target vessel details
|
|
Charts supported
|
C-MAP (MAX N, MAX N+), C-MAP Genesis, C-MAP Precision Contour HD (AMER ONLY), Navionics (Gold, NAV+ Platinum+) Insight (Pro and HD) Lowrance Regional Mapping Partners
|
|
Cartography included
|
C-MAP US Enhanced Basemap (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)
|
|
Steering Modes
|
Course, Heading, Waypoint, Power Steer
|
|
Maneuvers Turn Patterns
|
Course, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
|
|
Digital Switching
|
Czone, Naviop
|
|
Correction
|
DGPS, WAAS
|
|
Mounting Type
|
Gimbal Bracket Front Dash Flush Mount Rear Dash Flush Mount
|
|
Bluetooth
|
Integrated Bluetooth 4.0 with support for Bluetooth Classic
|
|
Sonar Compatibility
|
Integrated: CHIRP Broadband Active Imaging DownScan Active Imaging SideScan Compatible with: SonarHub StructureScan StructureScan3D
|
|
Item Connectivity WiFi
|
Internal 802.11b/g/n and Compatible with WiFi-1 Module
|
|
Waterproof rating
|
IPX7 with card door closed
|
|
PC Connectivity
|
None
|
|
Autopilot
|
Outboard Pilot MotorGuide Xi5/Xi3 Trolling Motor * *requires Motorguide PinPoint Gateway
|
|
Video
|
Output: No Input: Composite video RCA – single channel via optional adaptor
|
|
Backlight Color
|
Pure White LED
|
|
Weather
|
SiriusXM via WM-3 (USA only)
|
|
Multimedia
|
SonicHub SonicHub2 FusionLink products any NMEA 2000 compliant Marine Audio products
|
|
Interface
|
Touchscreen: Full Multi-touch touchscreen Keypad: 8-way directional keypad Zoom +/- Exit Enter Menu Waypoint Power/Light
|
|
NMEA 0183 Sentences supported
|
TX / RX – GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX – NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX – SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX – CompassReceive HDG HDT HDMTransmit HDGTX / RX – WindReceive MWV MWDTransmit MWV MWDTX / RX – AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000
|
Product Guides & Documentation
Package Includes
In the Box:
- HDS 9 Live
- Active Imaging 3-in-1 Transducer
- HDS-9 LIVE Suncover
- Mounting bracket
