Lowrance ActiveTarget 2 Specs
Connectivity
Ethernet Ports: 1 – 100 Mbit Ethernet Port
Electrical
Power Consumption max: 1.5A @ 13.8VDC
Power Consumption typical: 1.5A @ 13.8VDC
Recommended Fuse Rating: 3A
Supply Voltage: 10.8 VDC – 31.2 VDC
Environment
Humidity: 60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
Shock Vibration: 100,000 cycles of 20 G
Storage Temperature Range: -22°F to 158°F (-30°C to 70°C )
Waterproof rating: IP67
Physical
Dimensions W x H x D:

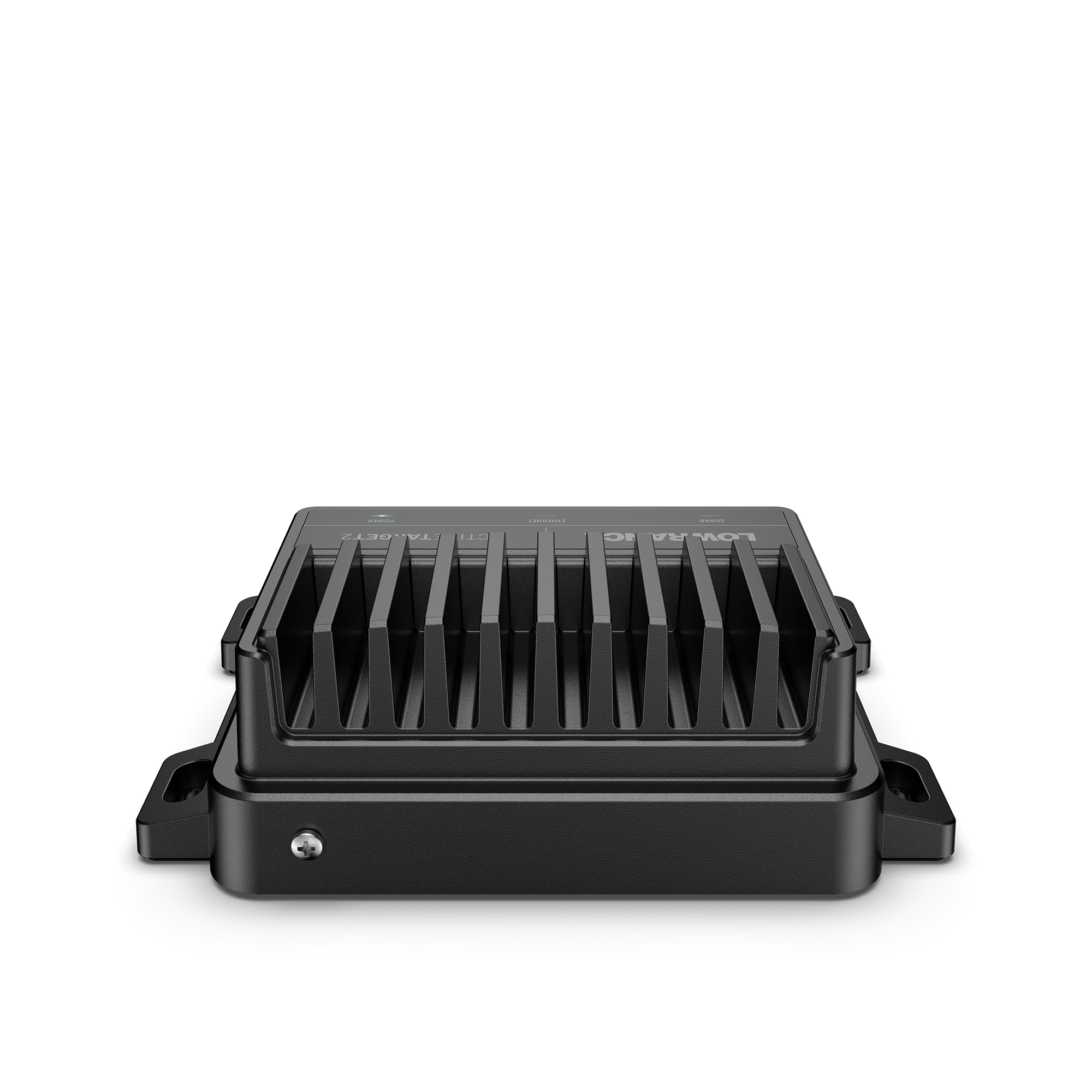

- Module: 8.63″ (219.3mm) x 7.56″ (192.1mm) x 2.86″ (72.9mm)

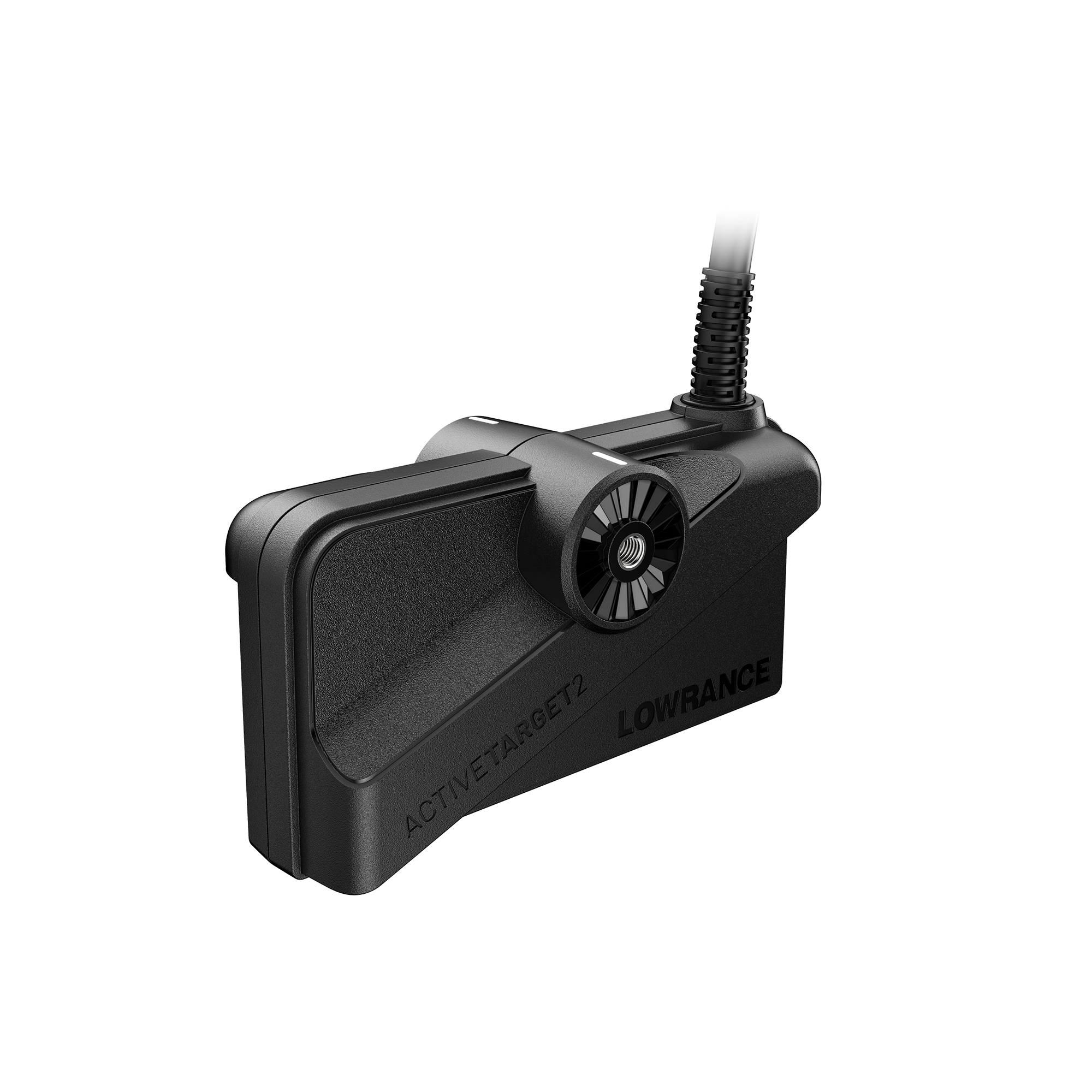

- Transducer: 5.90″ (149.8mm) x 3.24″ (82.4mm) x 2.28″ (58.0mm)
Mounting Type:
- Module: Surface Mount
- Transducer: Bracket Mount
Weight:
- Module: 4.12 lbs (1.86 kg)
- Transducer: 2.67 lbs (1.21 kg)
Other
Interface: Ethernet to: HDS Pro, HDS Live, HDS Carbon, Elite FS
Warranty Period: 1 Year
