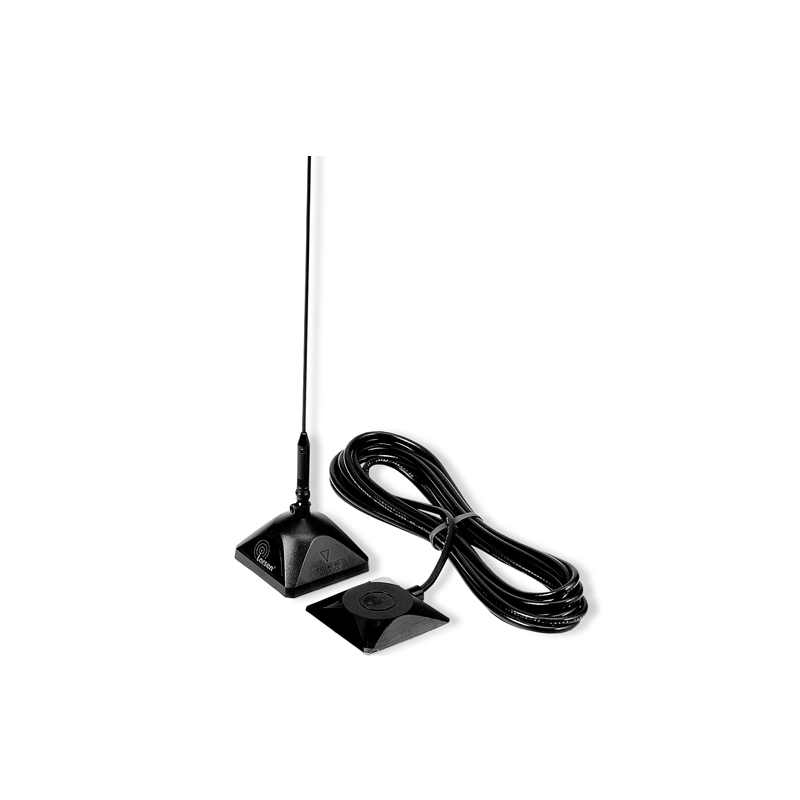

Larsen KG-144UDPL Antenna

MPN: KG-144UDL

$200.00

Out of Stock (On Order)

SKU: 7700 Category:

Patented low-impedance design in a glass mount antenna

KG-144UDPL Features:

  • VSWR at 1.5:1 or less
  • Heavy-duty base coils are air wound for lowest RF loss
  • Tough 17-7 stainless steel whips for maximum radiation efficiency
  • Available in black, chrome, or unplated
  • Optional shock spring internally shorted with highly flexible insulated wire to eliminate distortion
  • Durable UV and chemical resistant MakroBlend® shells

KG-144UDPL Specifications

Frequency:
144 – 160
Gain
0 dBd / 2dBi
Type
1/2 wave
VSWR (see bandwidth)
1.5:1 or less
Bandwidth @ 1.5
1.7%
Bandwidth @ 2.0
3.5%
Power Rating
100 watts
Colour
Black
Connector
PL-259
Coax
14′ RG-58/U Dual Shield
Max Height
48″
Weight 3 lbs
Dimensions 48 × 2.5 × 2.5 in
Manufacturer Part Number KG-144UDL
