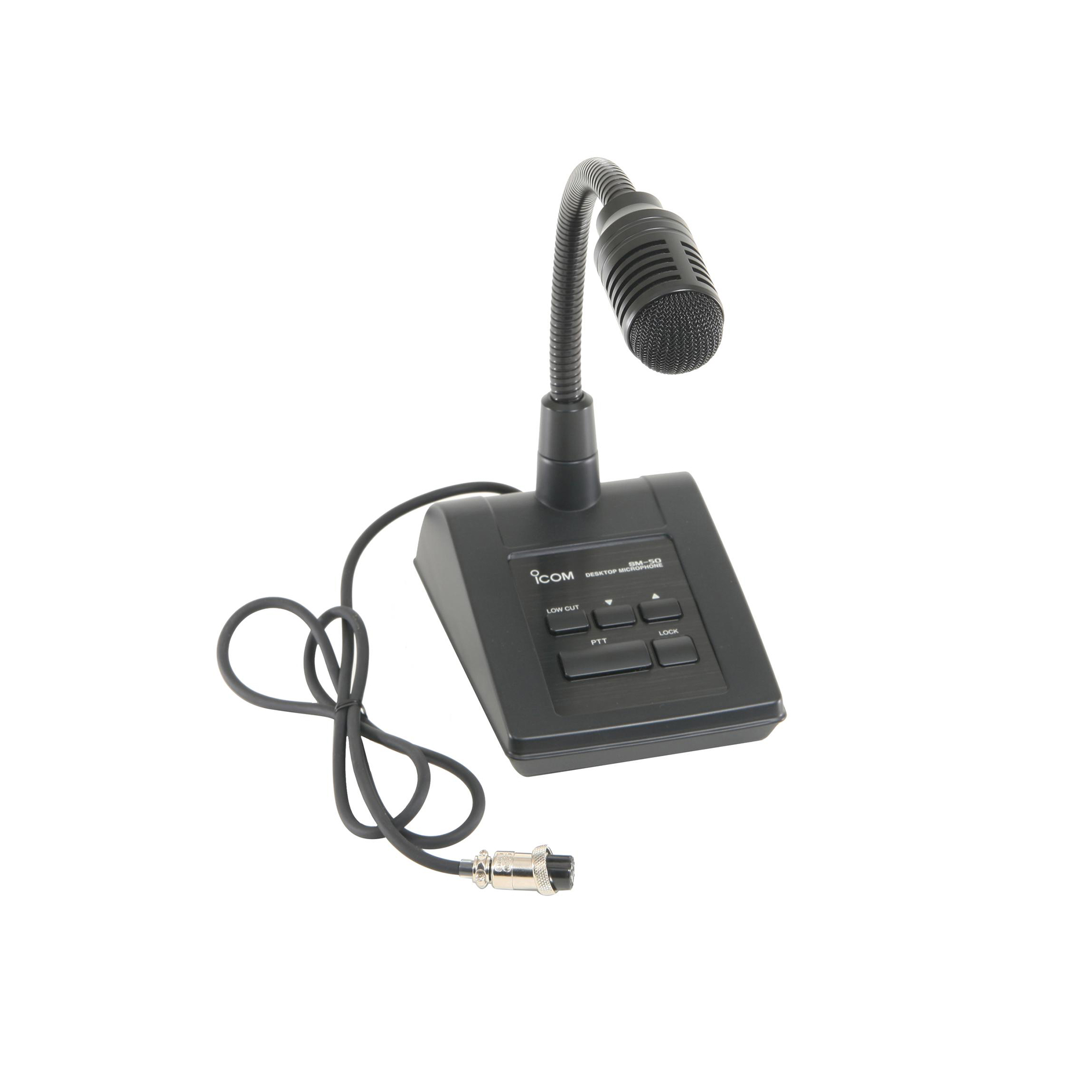

Icom SM-50 Desktop Microphone

MPN: SM-50

$365.00

In stock

SKU: 11391 Category:

The Icom SM-50 is a unidirectional, dynamic microphone designed for base station operation with particular Icom transceivers.(It is only compatible with Icom transceivers).It is powered from the Icom transceiver. The mic cables terminate to a standard Icom 8 pin mic plug. This mic works with several Icom transceivers including the IC-7600.

Features

  • Up-Down Tuning
  • Switch for PTT(Push To Talk) and lock enabled
  • Allow to cut out the low frequency components on input voice signals by Low Cut Switch
  • Gain Adjustment

Specifications

Microphone Element: Dynamic
Sensitivity: -30 dB ± 4dB (1 kHz, 0 dB = 1 V/1 Pa)
Impedance: 55 Ohms ± 30% (at 1 kHz)
Power requirement: 5-10 VDC (supplied from radio)
Weight: 26 oz. (730g)
Cable length: 39 inches (1m)
Weight 2.33 lbs
Dimensions 7.5 × 5.25 × 10.5 in
Manufacturer Part Number SM-50
