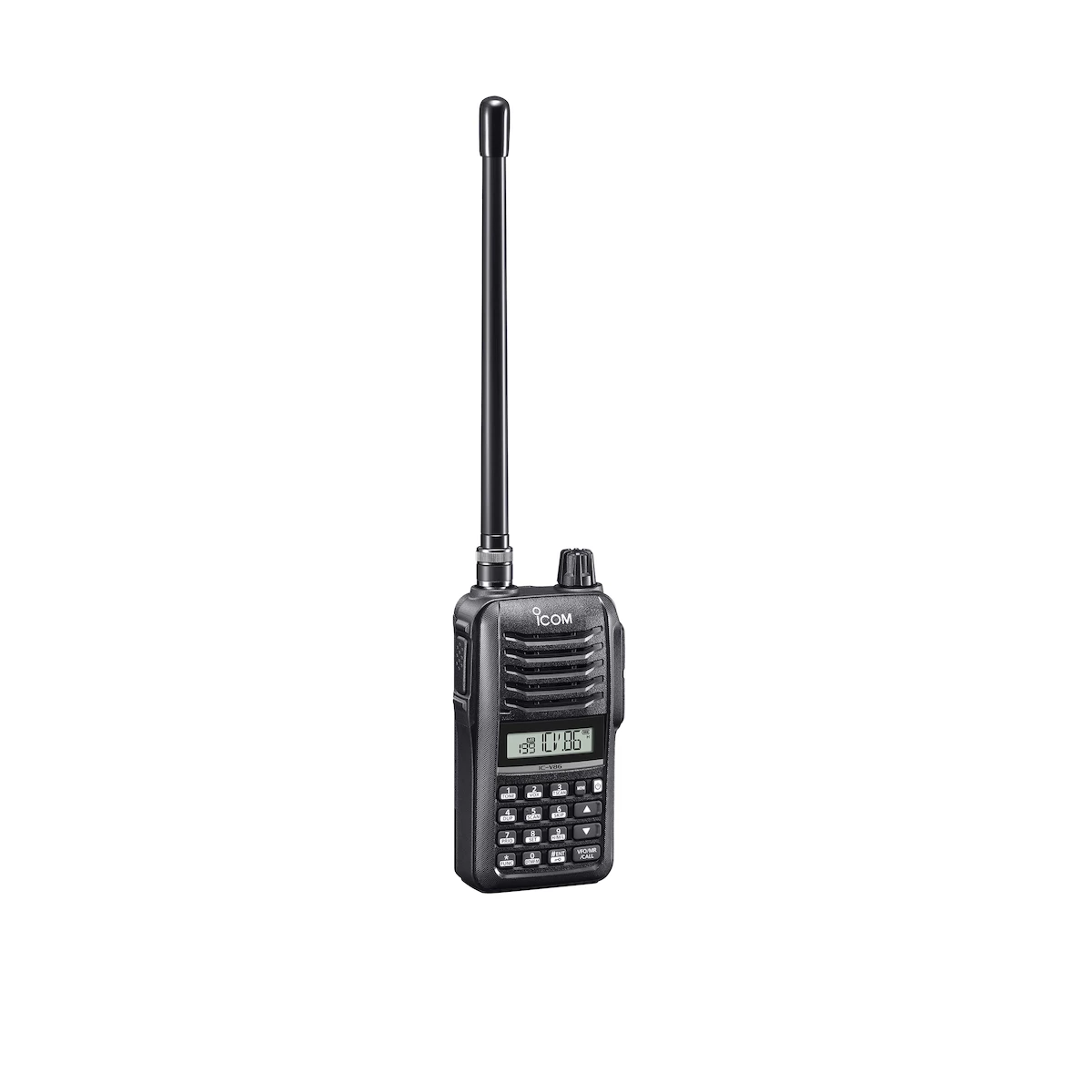

Icom IC-V86 2M Handheld Transceiver
MPN: IC-V86
Original price was: $249.99.$229.99Current price is: $229.99.
On sale until August 31, 2024
2M VHF FM Portable with Powerful Audio
In stock
- Description
- Additional information
- Product Specification
- Package Includes
- Product Guides & Documentation
- Accessories
2M VHF FM Portable with Powerful Audio
The IC-V86 gives you more audio, more RF power, more coverage and more battery capacity in a compact, MIL-STD portable. With 1.5W of receive audio power and a new chassis design, the IC-V86 enables users to hear incoming signals in loud, noisy environments. The IC-V86 expands users radios coverage with 7W of RF output power and the new 2250mAh Li-Ion battery pack provides longer operational capabilities.
| Output Power: | 7.0/5.5/2.5/0.5 Watts |
| RX Frequencies: | 136-174 MHz |
| Channels: | 207 (200 regular, 6 scan edges, 1 call) |
| Waterproof Rating: | IP54 |
Rugged Construction
The IC-V86 tested to and passed MIL-STD-810 C, D, E, F & G environmental tests
Features:
- IP54 and MIL-STD 810G; rugged design against dust, water, vibration and shock. Perfect for outdoor use.
- 19 hours* of long lasting battery life.
*EX Hi power with BP-298. TX : RX : standby = 5 : 5 : 90 (3 sec. : 3 sec. : 54 sec. ) (The Power Save function is set to “P–S.16”) - Durable BNC antenna connector
- Made in Japan quality and reliability
- User selectable Volume Level, VFO/Memory Channel selection control
- Supplied BC-240, battery charger with a charging control function that prolongs the life ofthe battery
- Integrated VOX function
- 200 memory channels, 1 Call channel and 6 scan edges
- Built-in CTCSS and DTCS encoder/decoder and Tone Scan
- Priority, program, memory, skip and tone scanning
| Weight | 1.77 lbs |
|---|---|
| Dimensions | 9 × 9 × 3 in |
| Brand | ICOM |
Product Specification
IC-V86 Specifications | ||
General | ||
Frequency Coverage (guaranteed) Tx Rx |
| |
No. of channels | 207 channels (200 memory channels, 1 call channel and 6 scan edges) | |
Type of emission | F2D, F3E (FM, FM-N) | |
Power supply requirement | 7.5V DC | |
Frequency stability | ±2.5 ppm (–20 °C to +60 °C, –4 °F to +140 °F) | |
Current drain Tx (EX Hi/Hi/Mid/Low) Rx (Max. audio) | 1.6/1.4/1.0/0.5 A typical 450 mA typ. (INT SP), 200 mA typ. (EXT SP) | |
Antenna impedance | 50Ω | |
Operating Temperature Range | -20°C to 60°C; –4°F to +140°F | |
Dimensions (W×H×D) (projections not included) | 58.6 × 112 × 30.5 mm, 2.3 × 4.4 × 1.2 in (with BP-298) | |
Weight (approximately) | 300 g, 10.6 oz (with BP-298, FA-B57V) | |
Transmitter | ||
Output power | *7.0/5.5/2.5/0.5 W (EX Hi/Hi/Mid/Low) | |
Max. frequency deviation | ± 5.0kHz/±2.5kHz (Wide/Narrow) | |
Spurious emissions | Less than –60 dB | |
Ext. microphone connector | 3-conductor 2.5 (d) mm (1⁄10″)⁄2.2 kΩ | |
Receiver | ||
Sensitivity | –124 dBm typical | |
Squelch sensitivity | –126 dBm typical | |
Selectivity (Wide / Narrow) | 75 dB typical / 70 dB typ | |
Intermodulation | 65 dB typical | |
Audio output power Internal speaker (w/8Ω load) External speaker (w/8Ω load) | 1500 mW typical 550 mW typical | |
Ext. speaker connector | 3-conductor 3.5 (d) mm (1⁄8″)/ 8Ω | |
*7w output from 144 – 160 MHz. 5.5w 136 – 144 MHz/160 – 174 MHz
Package Includes
Package Includes:
- IC-V86
- Battery Pack, BP-298
- Desktop charger, BC-240
- AC Adapter, BC-242
- Belt clip, MB-124
- Antenna
