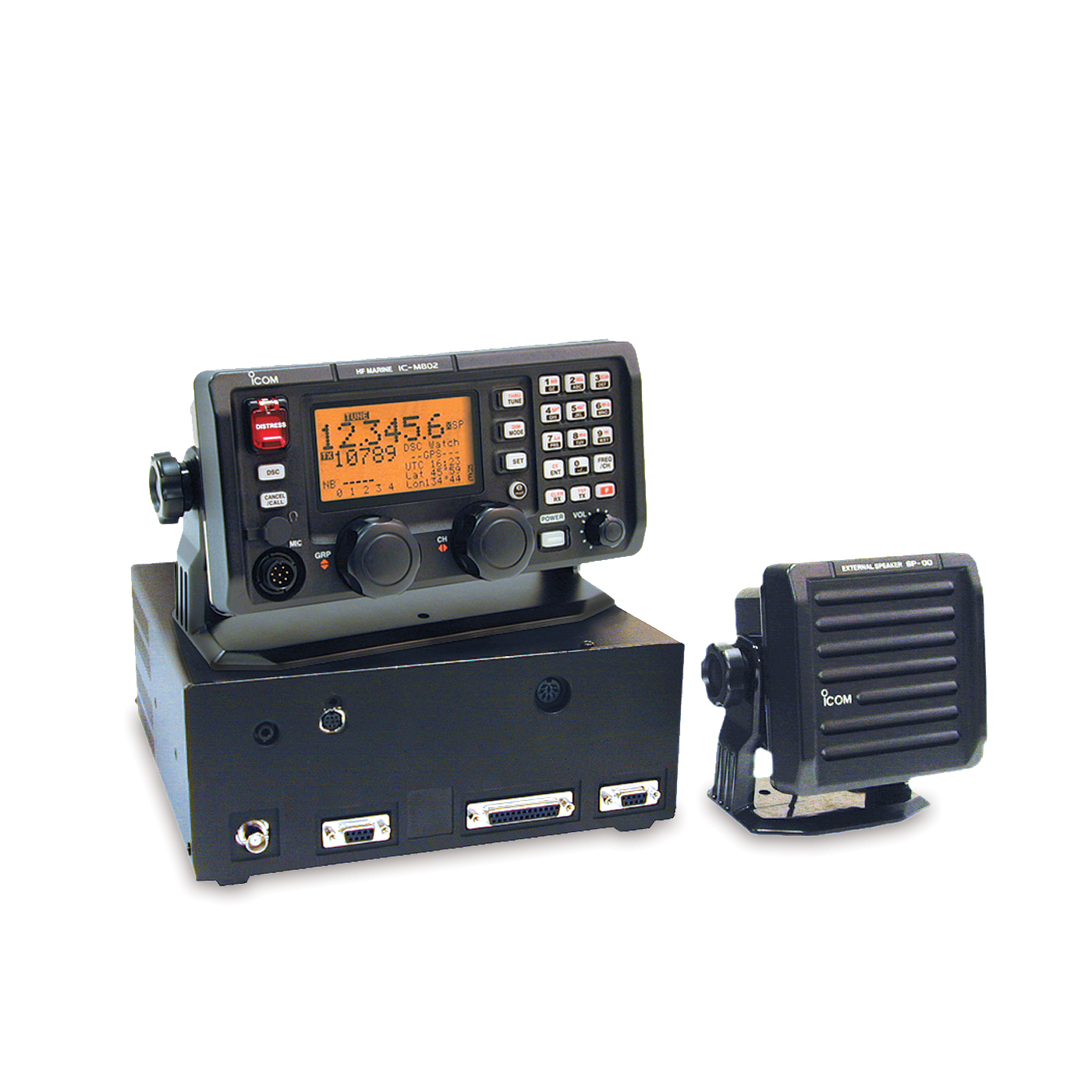

Icom IC-M802 Fixed Mount Marine Transceiver

Remote head HF marine SSB transceiver

• DSP (digital signal processor) provides flexible filter settings
• Email ready with one touch access
• Digital connection between remote head (or PC) and main body
• 160 user programmable memory channels
• The latest in ICOM SSB technology and construction
• 150W power, 100% duty cycle including RTTY
• All modes, including RTTY
• Receive 500 kHz – 29.9999 MHz
• Monitor all 976 ITU voice and data channels.
• 1355 channels
• Built-in DSC (digital selective calling) ITU class E
• Multiple scanning modes
• Rugged die cast aluminum chassis
• Direct keypad entry
• Large backlit alphanumeric LCD display
  with selectable lighting levels
• Large tactile knobs for easy channel selection
• Automatic antenna tuning with optional AT-140

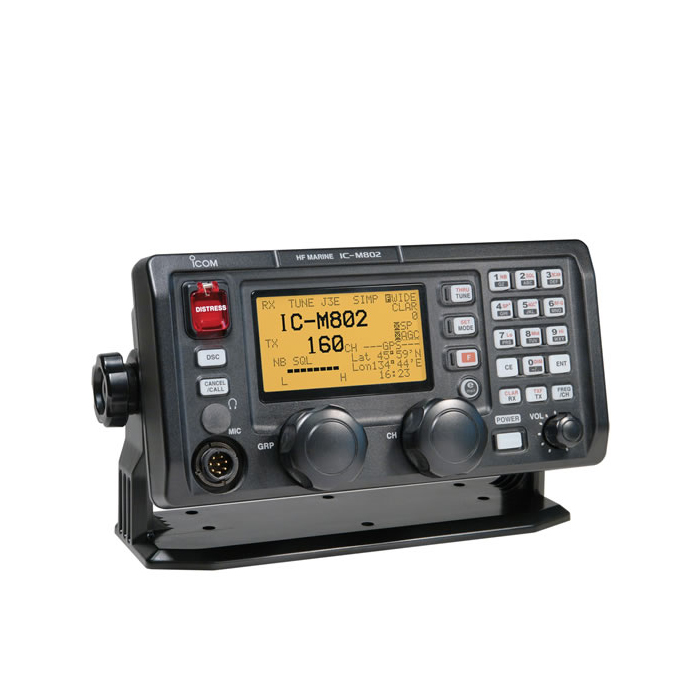

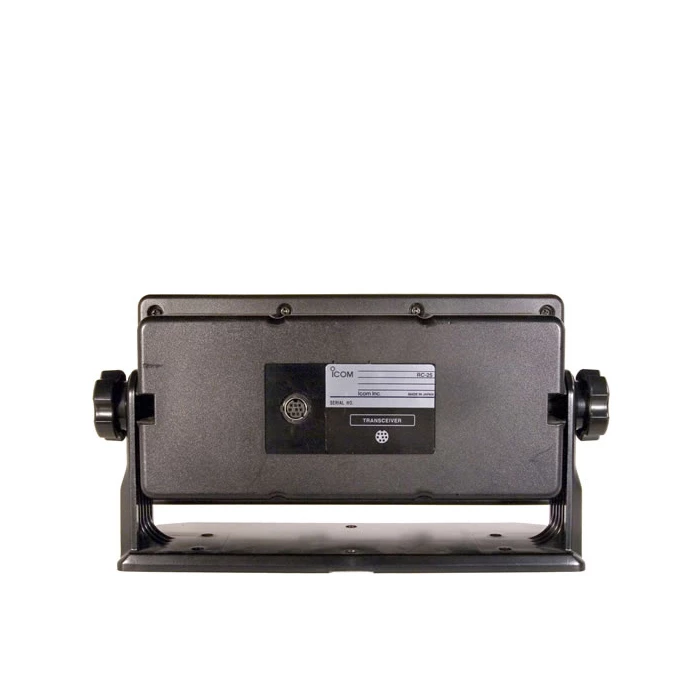

Standard 4 × 8 remote controller

The IC-M802 offers an industry-standard 4-inch tall (10.16 cm) remote controller. When set up with the IC-M502 VHF radio, Icom offers you a complete communications station.

Large LCD with dot matrix characters

You can easily read the alphanumeric name of any of the 1355 ITU channels at a glance with the large LCD display. Nighttime operation is no problem with 10 levels (plus OFF) adjustable backlit display and keypad.

Easy to use in all conditions

The IC-M802 offers two large dials – bank and channel – for easy channel selection. Up to 16 banks of 20 (max.) each for user channels, and 17 banks for ITU channels are available.

Built-in digital selective calling

For added safety at sea, the IC-M802 offers the latest in one-touch DSC emergency communications technology. (ITU Class E standard.) The emergency button is covered by a red, spring loaded hatch to avoid accidental DSC activation.

Digital signal processor advantage

The speech compressor, utilizing DSP, increases average talk power. Flexible filter settings provide for narrow band signals like e-mail, SITOR, FSK and other operation without an optional filter.

150W (PEP) of powerful output

150 Watts of power offers superior worldwide communications. A one piece, die cast aluminum chassis and a large cooling fan allow continuous transmission at full output power – very important for data communications, like e-mail.

One-touch e-mail access

An SSB first! The IC-M802 can be set to memorize your HF e-mail access frequency, mode and bandwidth settings. At sea e-mail has never been easier. * Please consult with an HF e-mail provider for details.

Automatic antenna tuner, AT-140

An optional automatic antenna tuner, AT-140, easily connects to the IC-M802. When the tuner cannot tune the antenna, the IC-M802 bypasses the tuner and displays a warning indicator on the LCD.

Other features

• Wide band receive coverage (0.5 – 29.9999MHz)
• Remote control mic allows you to select channels directly
• Accessory RS-232C port allows connection of modem, etc.
• GPS input, NMEA 0183 version 3.01
• A headphone jack in front of the controller
