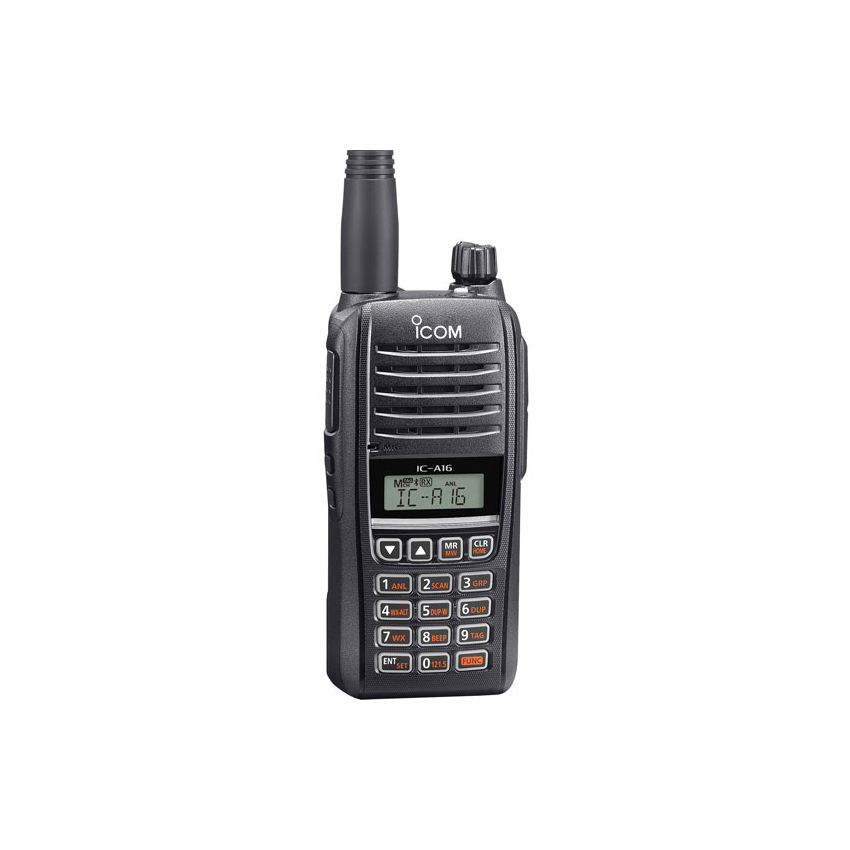

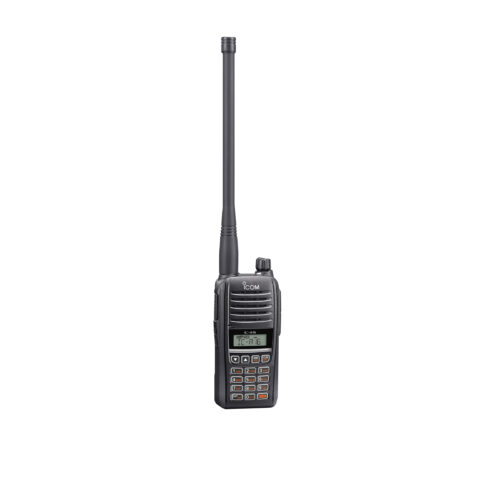

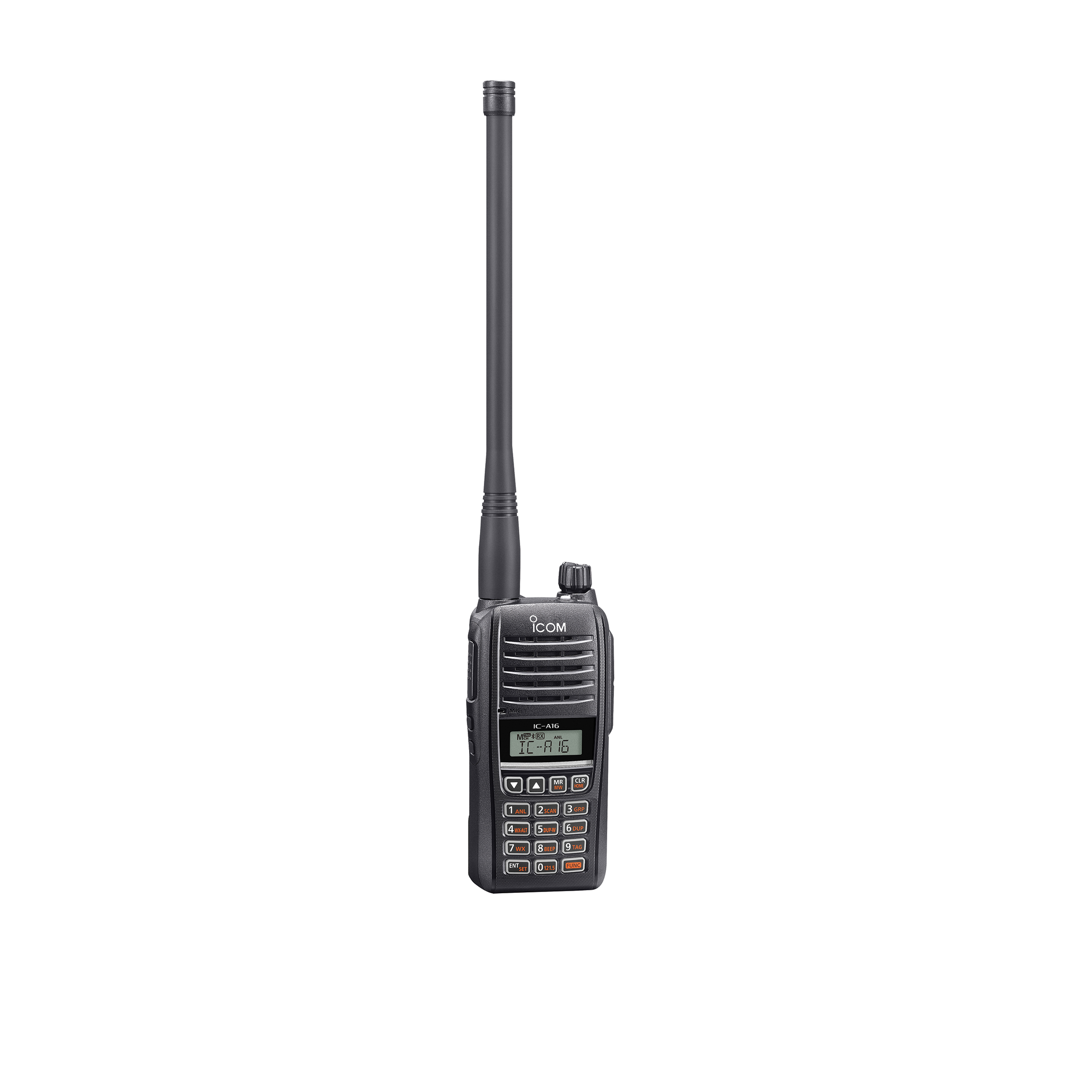

Icom IC-A16 VHF COM Aviation Handheld
$349.99 – $429.99
VHF COM Aviation Handheld
VHF COM Aviation Handheld
The A16 is the ideal flight companion for the student pilot. This radio practically pays for itself by saving pilots both engine hours and fuel during preflight communications with the tower. Users appreciate the A16’s compact, waterproof design for one hand operation for working on the flight line, using it for back up in any aircraft, or for use by ground crew. Its 2400mAh Li-ion battery lasts over 17 hours and the radio includes a nice sit in rapid charger.
| Output Power: | 6W typ. (PEP), 1.8W (CW) | ||
| Frequencies: |
TX
RX RX (Weather) |
118.00-136.99166MHz 108.00-136.99166MHz 161.650-163.275MHz |
|
| Channel Spacing: | 8.33kHz/25kHz | ||
| Channels: | 200 with 10 memory banks | ||
| Battery Life: | 2400mAh Li-ion battery, up to 17 hours Typical operation; Tx:Rx:Stand-by duty ratio = 5:5:90, Bluetooth/backlight OFF |
||
| Versions: | Communications Only Communications Only with Bluetooth® |
||
Loud Audio
Air band radios are usually operated in high noise environments, so it is essential for the pilot’s radio to provide loud audio. The A16 internal speaker delivers a loud 1500mW audio output with clear sound to cut through cabin or tarmac noise.
Additional Features
- Bluetooth® version offers hands-free operation
- Full keypad to input the channel or frequency directly
- Exclusive button for 121.5MHz emergency channel
- Side tone function to hear your own voice via a third party aviation headset

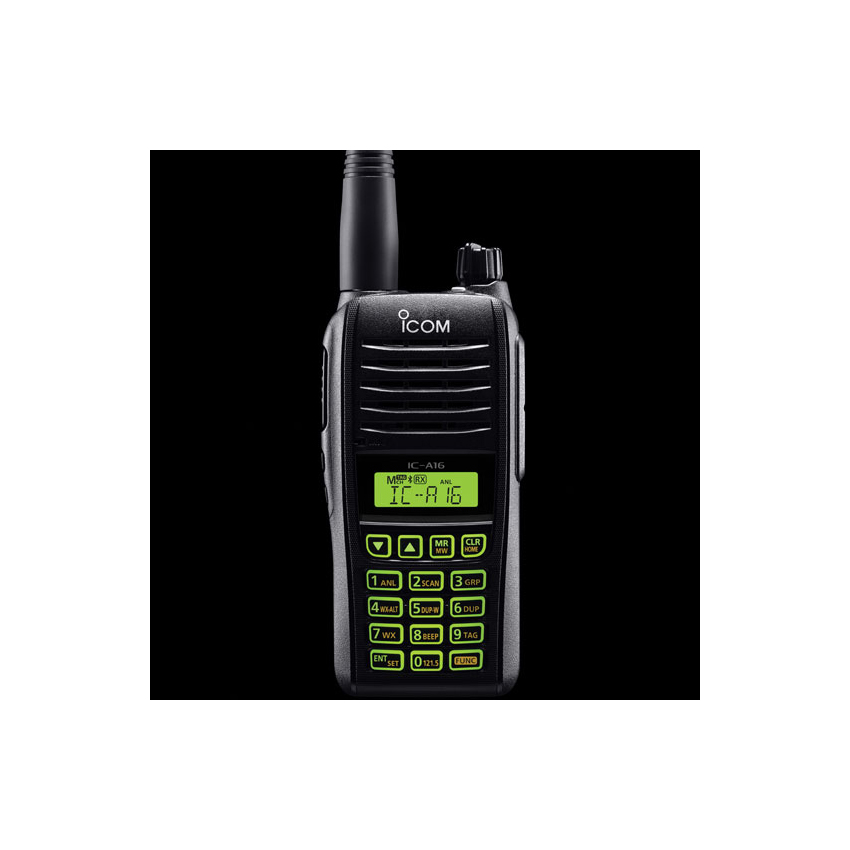

- LCD backlight for night time operation
- ANL (Auto Noise Limiter) for noise reduction
- Low battery indication and beep alert
- Adjustable microphone gain setting
- BNC type antenna connector
- IP67 waterproof
- Internal VOX capability
- Weather alert
*Except operating frequency ±62.5 kHz in 25 kHz channel spacing. Except operating frequency ±20.825 kHz in 8.33 kHz channel spacing.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | Icom IC-A16 WITH Bluetooth, Icom IC-A16 WITHOUT Bluetooth |
Product Specification
|
IC-A16 Specifications
|
||
|
General
|
||
|
Frequency Coverage
Tx Rx RX (Weather) |
|
|
|
Channel spacing
|
8.33 kHz/25 kHz
|
|
| No. of memory channels | 200 channels | |
|
Type of emission
|
6K00A3E, 5K60A3E, 16K0G3E (Weather)
|
|
|
Power supply requirement
|
7.2 V DC
|
|
|
Current drain (at 7.2 V DC)
Tx High Rx Max. audio Rx Stand-by |
185 A
650 mA 65 mA typical |
|
|
Antenna impedance
|
50Ω (BNC type antenna connector)
|
|
|
Operating Temperature Range
|
-10°C to +60°C; -14°F to +140°F
|
|
|
Dimensions (WĂ—HĂ—D) (projections not included)
|
52.2 Ă— 111.8 Ă— 34.1 mm,
2.1 Ă— 4.4 Ă— 1.3 in (with BP-280) |
|
|
Weight (approximately)
|
257 g, 9.1 oz (with BP-280)
|
|
|
Transmitter
|
||
|
Output power (at 7.2 V DC)
|
6.0 W (PEP), 1.8 W (carrier)
|
|
|
Audio harmonic distortion
|
Less than 10% (at 60% modulation)
|
|
|
Spurious emissions
|
More than 46 dB*
|
|
|
Frequency stability
|
±0.4 kHz
|
|
|
Receiver
|
||
|
Intermediate frequencies
1st 2nd |
46.35 MHz
450 kHz |
|
|
Sensitivity (typ)
COM (6 dB S/N) NAV (6 dB S/N) WX (12 dB SINAD) |
Less than 0 dBÎĽ
Less than 3 dBμ Less than –6 dBμ |
|
|
Squelch sensitivity (at threshold)
|
Less than 0 dBμ, Weather: Less than –5 dBμ
|
|
|
Hum and noise
|
More than 35 dB (at 30% modulation)
|
|
|
Spurious response
|
More than 60 dB, Weather: More than 30 dB
|
|
|
Audio output power
Internal speaker External speaker |
1500 mW typical
More than 350 mW (AM 8 Ω 60% modulation at 10% distortion) |
|
|
Ext. speaker connector
|
3 conductor 3.5 (d) mm
|
|
Documentation
Package Includes
Package Includes
- IC-A16
- Battery Pack, BP-280
- Battery charger, BC-213
- AC Adapter, BC-23SA
- Antenna, FA-B02AR
- Belt clip, MB-133
- Handstrap
