Icom IC-905 All Mode Transceiver
$4,799.99
SPECIAL ORDER
Industry First Multi-Band 144 MHz to Microwave Transceiver!
Out of Stock (On Order)
- Description
- Additional information
- Specifications
- Package Includes
- Product Guides & Documentation
- Accessories
Explore the World of Microwave
The IC-905 is the industry’s first microwave rig in the 144, 430/440, 1200, 2400, 5600 MHz and 10 GHz* bands. Multi-mode operation including SSB, AM, FM, D-STAR DV/DD and FM-TV (Amateur TV). Output power is 10 W on 144, 430/440, 1200 MHz, 2 W on 2400, 5600 MHz and 0.5 W on 10 GHz.
* CX-10G is required for 10 GHz operation

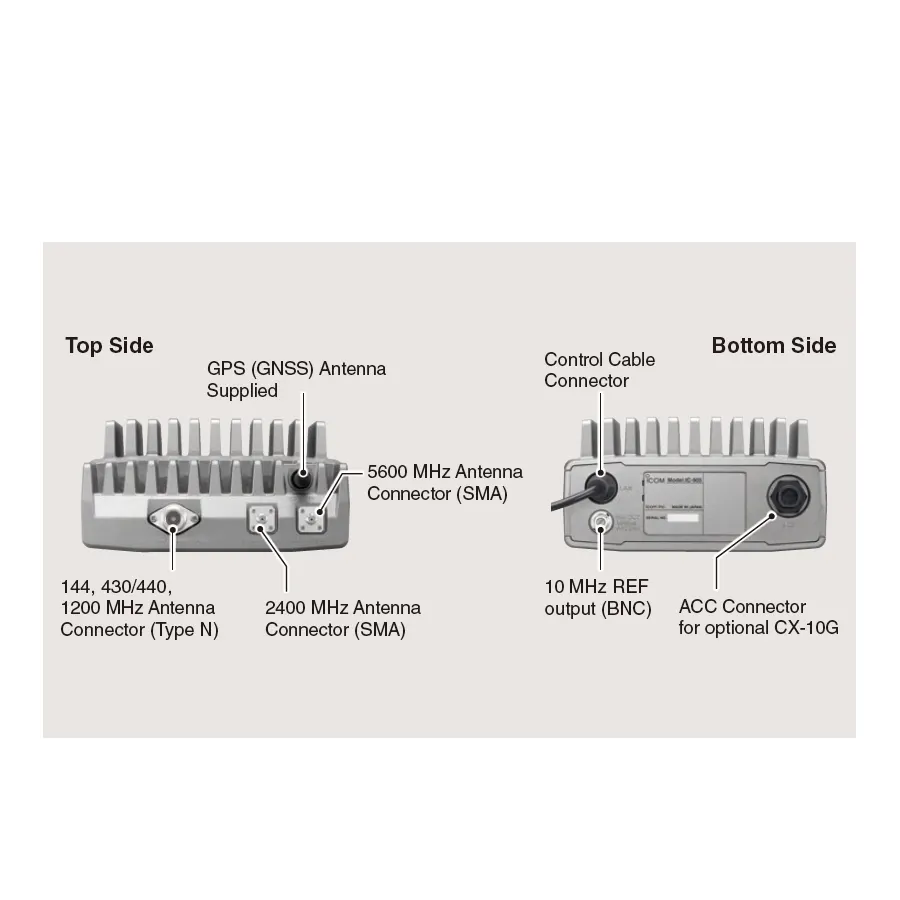

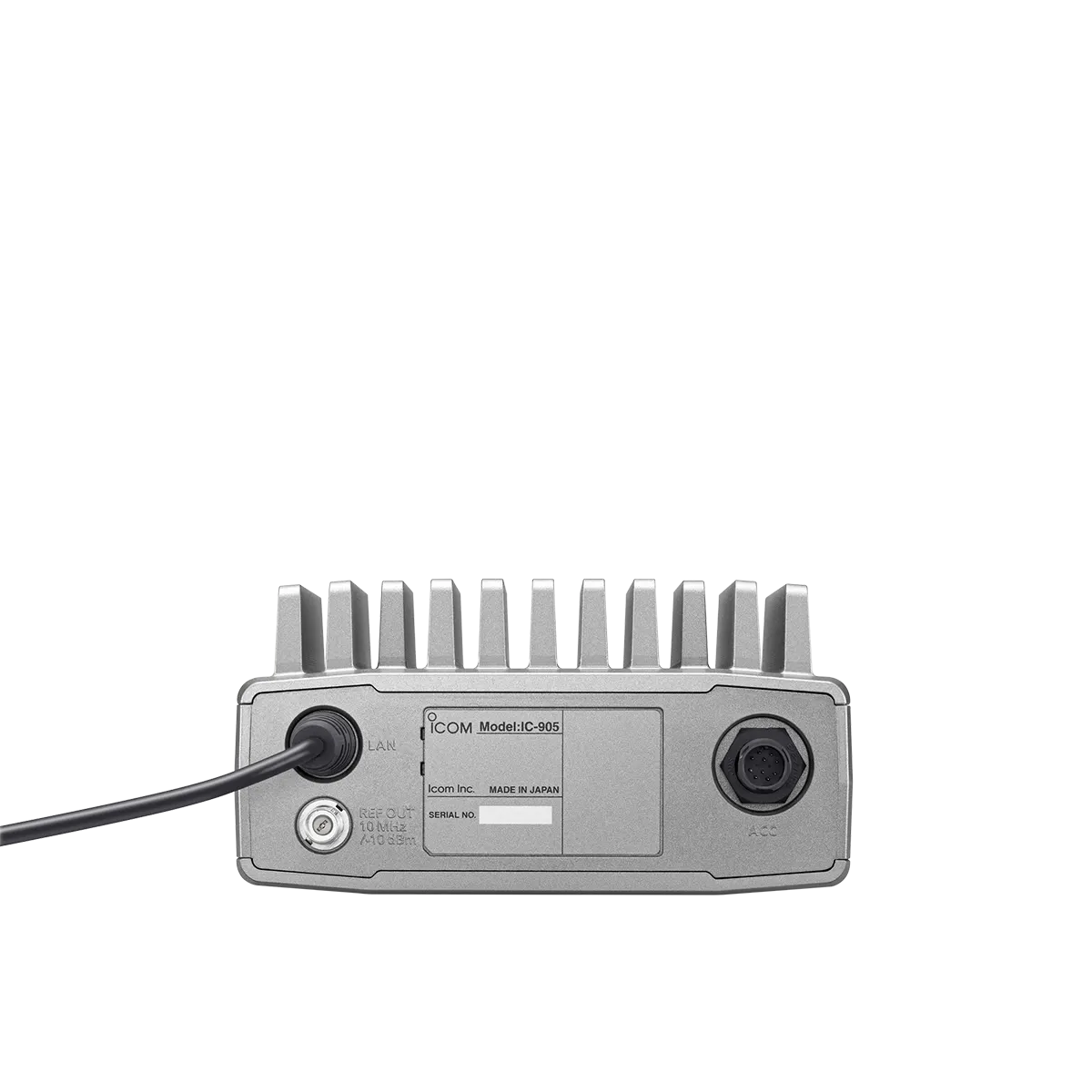

Separate Controller and RF Unit Configuration
The IC-905 is the industry’s first super efficient microwave base station with the RF unit designed to be at the base of the antenna, rather than in the shack. This design eliminates signal loss due to costly, long coax feed line runs found in legacy SHF designs. Optional 50 m (164 ft) or 20 m (65.6 ft) controller cable is available with the IC-905.
Less Signal Loss
With the RF unit mounted at the antenna, transmit and receive signals are at their maximum efficiency as the coax feed line is measured in inches rather than feet, keep signal loss to a minimum. This is possible due to the controller cable providing digital communications between the controller and RF units.
Power Supplied through the Controller Cable
The DC power is supplied from the controller to the RF unit through the controller cable, making it possible to supply power with a low loss. Moreover, optional CX-10G’s power is supplied from the IC-905 RF unit.
GPS-Controlled Oscillator for Ultimate Frequency Stability
Frequency accuracy and stability are required for SHF band operation. Even with a high-performance OCXO, the frequency gradually changes due to temperature and aging. To solve this problem, the IC-905 uses a high-precision 1 pulse-per-second (1 PPS) clock signal from an internal GPS (GNSS) receiver to enable advanced frequency control.
Wideband 50 MHz Span – Real-time Spectrum Scope
A high-performance real-time spectrum scope and waterfall display are built in. The real-time spectrum scope can be adjusted for Center, Fixed, and Scroll mode, and it covers a wide bandwidth of up to 50 MHz span.
ATV (Amateur TV) Mode
The IC-905 is compatible with the ATV (FM-TV, NTSC, PAL or SECAM) mode. With an analog camera connected, the IC-905 can transmit video, and receive a real-time video. Furthermore, received videos can be monitored on an external display connected through AV-output connector.
Icom Common User Interface

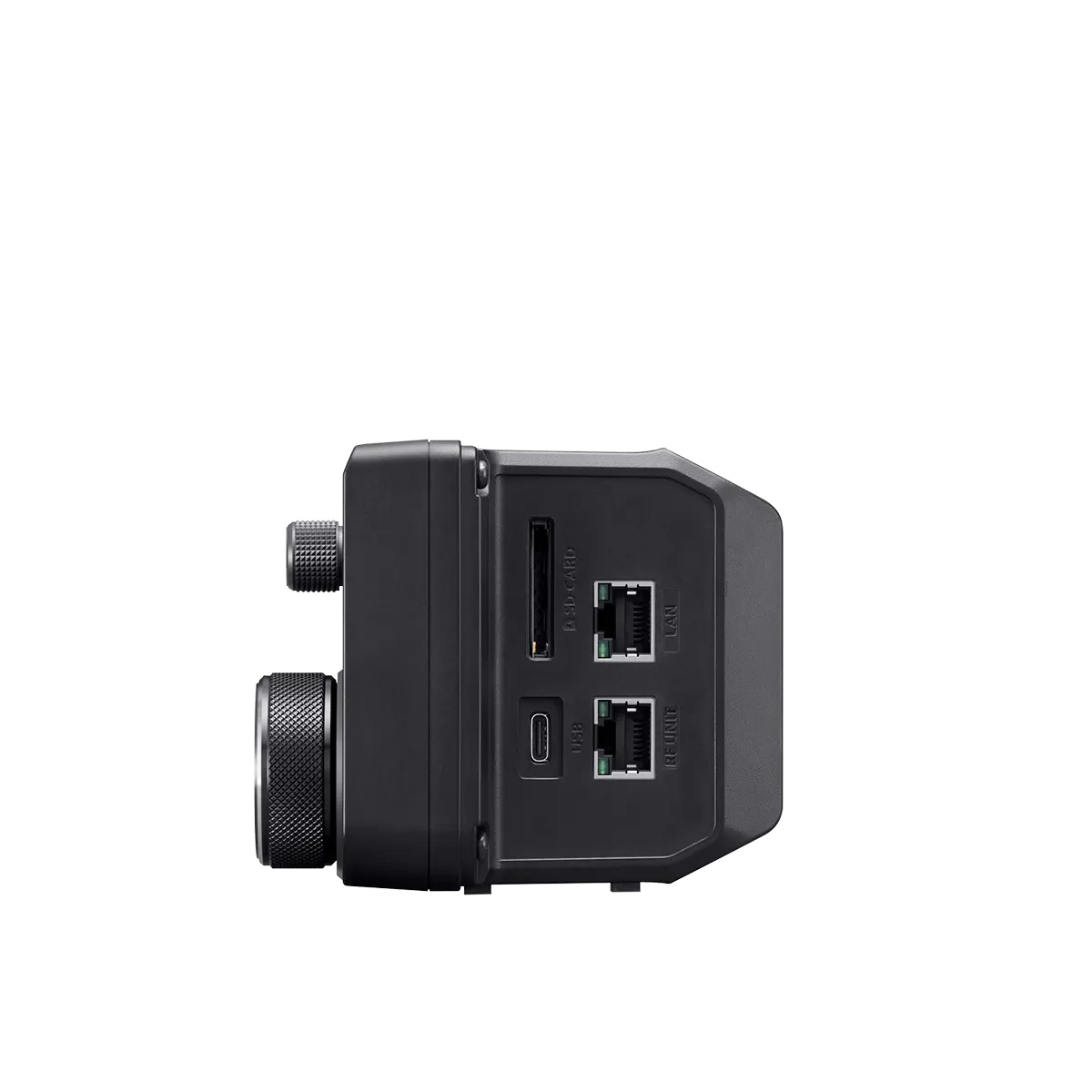

The controller of the IC-905 was designed based on the compact IC-705 and utilizes Icom’s Common User Interface system used in Icom’s touch screen transceivers.
Full D-STAR Functions
DV, DD mode, DR function, Terminal mode, and Access Point mode enable easy use of D-STAR. It is also possible to send, receive, and view received pictures with the IC-905.
Optional 10 GHz Transverter, CX-10G
The CX-10G transverter provides 10 GHz operation by converting to a 2400 MHz IF signal. 10 GHz operation becomes more approachable and easier to work. The CX-10G is in bypass mode when the use of the 2400 MHz band.
A Variety of Optional Antennas
Optional Collinear antennas for each bands, 2400, 5600 MHz and 10 GHz are available. Additionally, high-performance parabolic antenna for 10 GHz is also available.
Other Features
- SD card slot
- USB Type-C connection for PC and mobile connectors
- Power Amp thermal protection function
- TX, RIT and AFC (Automatic Frequency Control) functions
- One-Touch FT8 Mode Preset
- Quick Data mode setting for SSTV, RTTY, PSK31, JT65B and FT8
- AMPS hole pattern and 1/4-20 tripod mount for controller unit
- Two call channels for each band (2Ă—6 bands)
- 500 memory channels divided into up to 100 groups
- 50 scan edges, 2500 repeater memories and 300 GPS memories
| Weight | 10 lbs |
|---|---|
| Dimensions | 10 × 8 × 10 in |
| Brand | ICOM |
Specifications
Icom IC-905 Specs
GENERAL
| Frequency coverage | USA version | 144 ~ 148 MHz, 430 ~ 450 MHz, 1240 ~ 1300 MHz, 2300 ~ 2309.999999, 2390.000001 ~ 2450 MHz, 5650 ~ 5925 MHz |
|---|---|---|
| Mode | SSB, CW, AM, FM, RTTY, DV, DD*1, ATV*1 | |
| Power supply requirement | 13.8 V DC ±15% (Controller unit) | |
| Antenna impedance | 50 Ω | |
| Operating temperature range | Controller unit | 0°C ~ 50°C,  32 ˚F ~ 122 ˚F |
| RF Unit |  –10°C ~ 55°C, 14 ˚F ~ 131 ˚F | |
| Frequency stability | Less than ±65 ppb (Total deviation) GPS-Controlled Oscillator |
|
| Current drain (at 13.8 V DC) |
RX Max. audio/Standby | Less than 3 A/2 A (typical) |
| TX Max. power | Less than 5.5 A | |
| Dimensions (W x H x D) | Controller unit | 200 x 83.5 x 82 mm; 7.9 x 3.3 x 3.2 in |
| RF unit | 172 x 87 x 210 mm; 6.8 x 3.4 x 8.3 in | |
| Weight (Approximate) | Controller unit | 940 g; 2.1 lb. (supplied accessories not included) |
| RF unit | 3.2kg; 7.1 lb. (supplied accessories not included) | |
*1 1200 MHz and above.
TRANSMITTER
| Output power | 144, 430/440 MHz | SSB, CW, FM, RTTY, DV : 10 W | AM : 2.5 W |
|---|---|---|---|
| 1200 MHz | SSB, CW, FM, RTTY, DV, DD, ATV : 10 W | AM : 2.5 W | |
| 2400, 5600 MHz | SSB, CW, FM, RTTY, DV, DD, ATV : 2 W | AM : 0.5 W | |
| Modulation system | SSB | Digital PSN modulation | |
| FM | Digital Reactance modulation | ||
| AM | Digital Low Power modulation | ||
| DV, DD | Digital GMSK modulation | ||
| ATV | Digital Reactance modulation | ||
| Spurious emission | 144, 430/440 MHz | Less than -60 dBc | |
| 1200 MHz | Less than -53 dBc | ||
| 2400, 5600 MHz | Less than -46 dBc | ||
| Microphone impedance | 2.2 kΩ | ||
RECEIVER
| Receiver system | 144, 430/440 MHz | RF Direct Sampling | |
|---|---|---|---|
| 1200, 2400, 5600 MHz | Down Conversion IF Sampling | ||
| IF Frequency | 1200 MHz | 1st IF: 331 ~ 371 MHz | |
| 2400, 5600 MHz | 1st IF: 914 MHz band, 2nd IF: 346 MHz band | ||
| Sensitivity | 144, 430, 1200, 2400 MHz bands | 5600 MHz band | |
| SSB, CW (Filter: SOFT) (at 10 dB S/N) | Less than -19 dBÎĽV (0.11 ÎĽV) | Less than -16 dBÎĽV (0.15 ÎĽV) | |
| AM (at 10 dB S/N) | Less than  0 dBμV (1.0 μV) | Less than 3 dBμV (1.4 μV) | |
| FM (at 12 dB SINAD) | Less than -15 dBÎĽV (0.17 ÎĽV) | Less than -12 dBÎĽV (0.25 ÎĽV) | |
| DV (at 1% BER (PN9) | Less than -9 dBÎĽV (0.35 ÎĽV) | Less than -6 dBÎĽV (0.50 ÎĽV) | |
| DD (at 1% BER (PN9) | Less than 4 dBÎĽV (1.58 ÎĽV) (1200, 2400 MHz bands only) |
Less than 7 dBÎĽV (2.23 ÎĽV) | |
| Selectivity | SSB (BW=2.4 kHz, Filter: SHARP) | More than 2.4 kHz/-3 dB Less than 3.6 kHz/-60 dB |
|
| CW (BW=500 Hz) | More than 500 Hz/-3 dB Less than 700 Hz/-60 dB |
||
| RTTY (BW=500 Hz) | More than 500 Hz/-3dB Less than 700 Hz/-60 dB |
||
| AM (BW=6 kHz) | More than 6.0 kHz/-3 dB Less than 15 kHz/-60 dB |
||
| FM (BW=15 kHz) | More than 12.0 kHz/-6 dB Less than 20 kHz/-60 dB |
||
| DV (Ch. Spacing=12.5 kHz) | Less than -50 dB | ||
| DD (Ch. Spacing=300 kHz) | Less than -40 dB | ||
| Audio output power | Internal SP | More than 530 mW (12 Ω, 1 kHz, 10% distortion) | |
| External SP | More than 200 mW (8 Ω, 1 kHz, 10% distortion) | ||
| AV-OUT | More than -6 dBV (600 Ω, Max. power) 1 V p-p typ. (Test pattern) |
||
| AF Output Impedance | External SP | 8 Ω | |
| AV-OUT | 600 Ω (Audio), 75 Ω (Video) | ||
*Specifying PREAMP ON in 144, 430/440, and 1200 MHz bands. No switching function for PREAMP ON/OFF in 2400 and 5600 MHz bands.
* All stated specifications are subject to change without notice or obligation.
Package Includes
In the Box:
- IC-905
- Accessory connectors
- CWÂ key plug
- OPC-2488, power supply cable
- Controller cable (5 m, 16.4 feet)
- GPS antenna
- HM-243, Speaker-microphone
- Cushion sheet
- RF unit bracket kit
- U-bolt clamp kit
- Spare fuse
