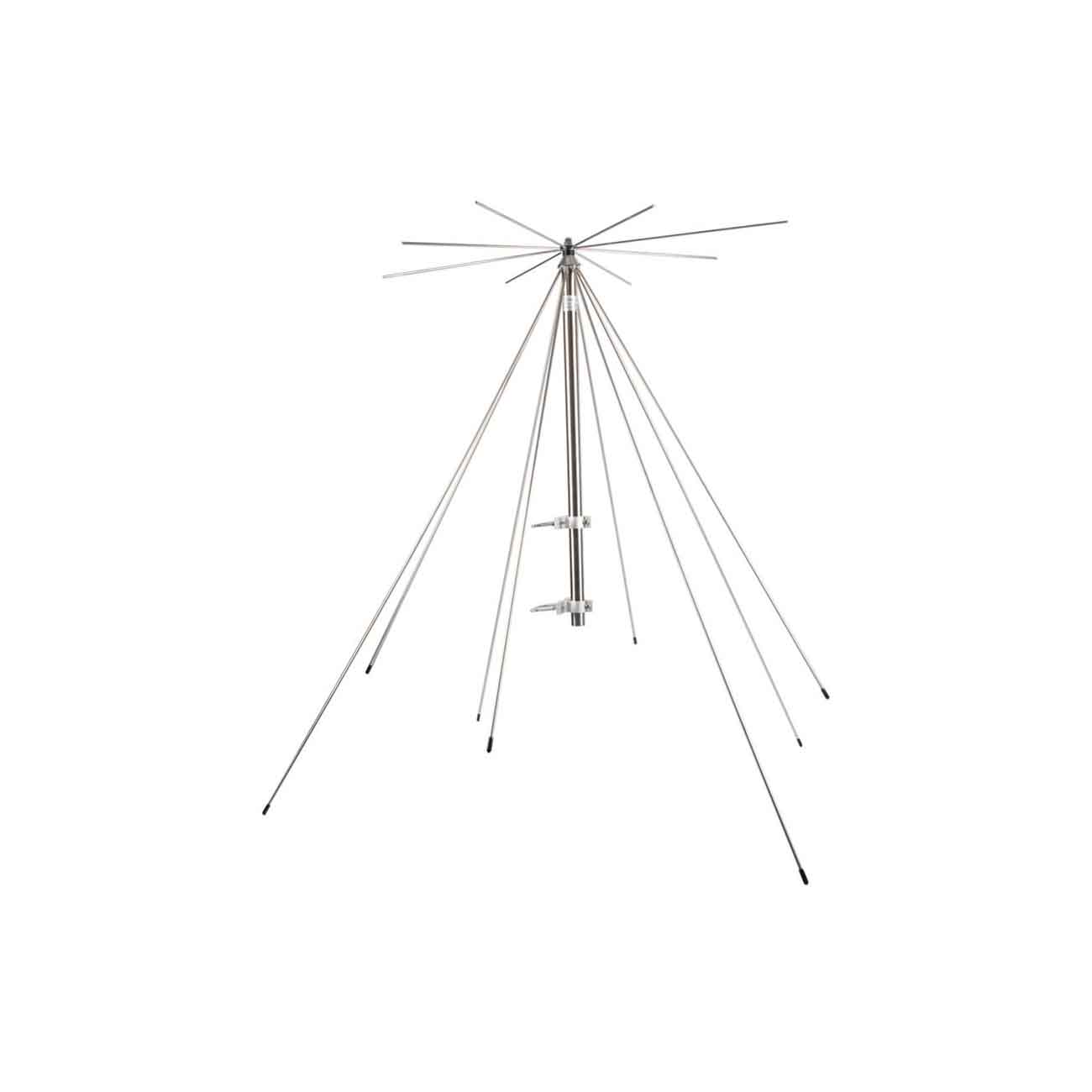

Icom AH-8000 Multi-Purpose Discone Antenna

The Icom AH8000 is a multi-purpose discone antenna that receives solid from 100 to 3300 MHz! It can also be used for transmit on 144, 430, 1200 and 2400 MHz ham bands (under 200 watts). The discone design offers the best performance possible in an omni-directional antenna.

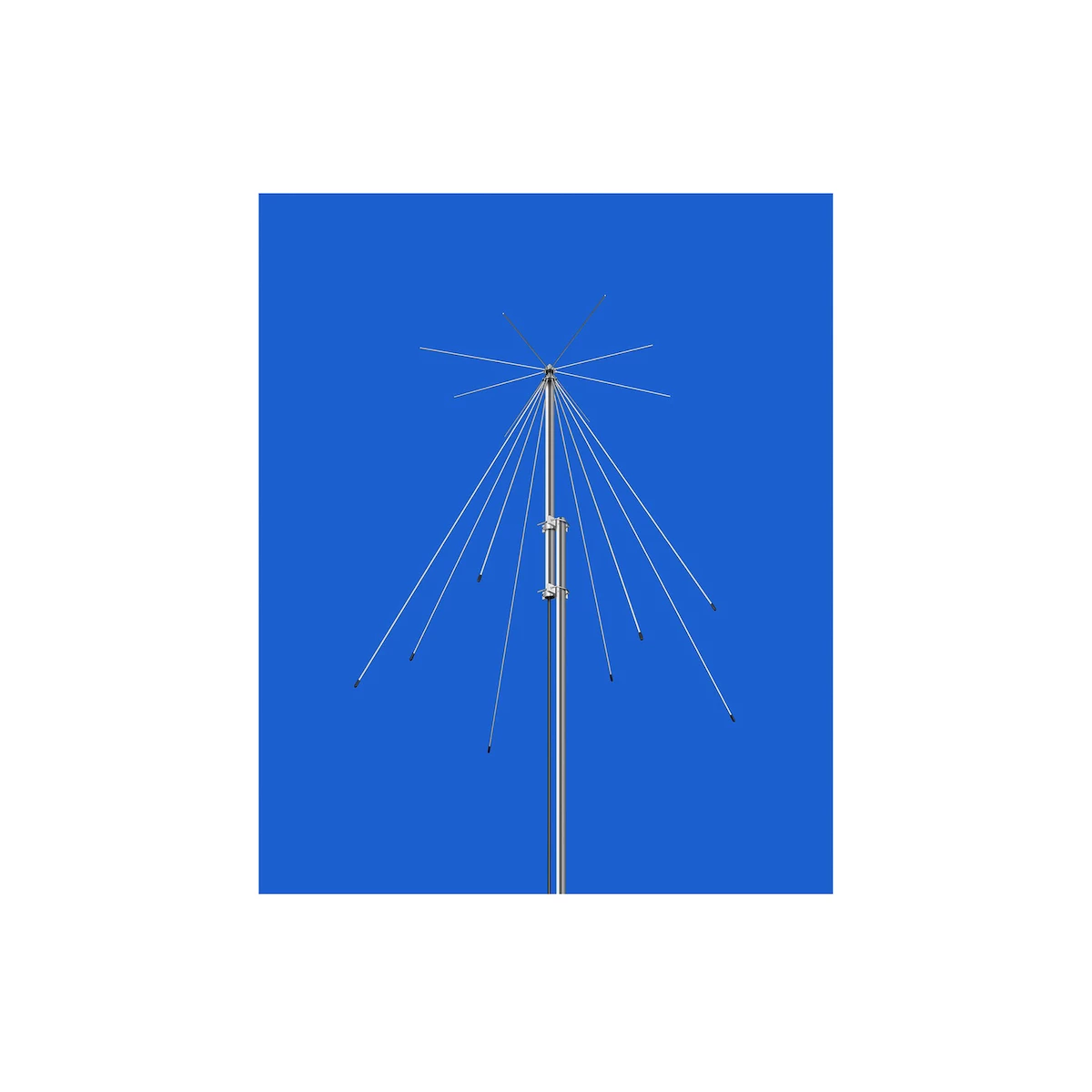

This antenna is only 3 feet (936 mm) high and attaches to any standard mast from 1-2.05 inches with two supplied U-bolts. The mast shown is not supplied. Weight is 2.1 lbs (970g).

The AH8000 comes with a preassembled 49 foot cable with an N connector at each end. Adapter #4571 will be required to connect to the IC-R1500. This will convert the N plug to a BNC plug.
