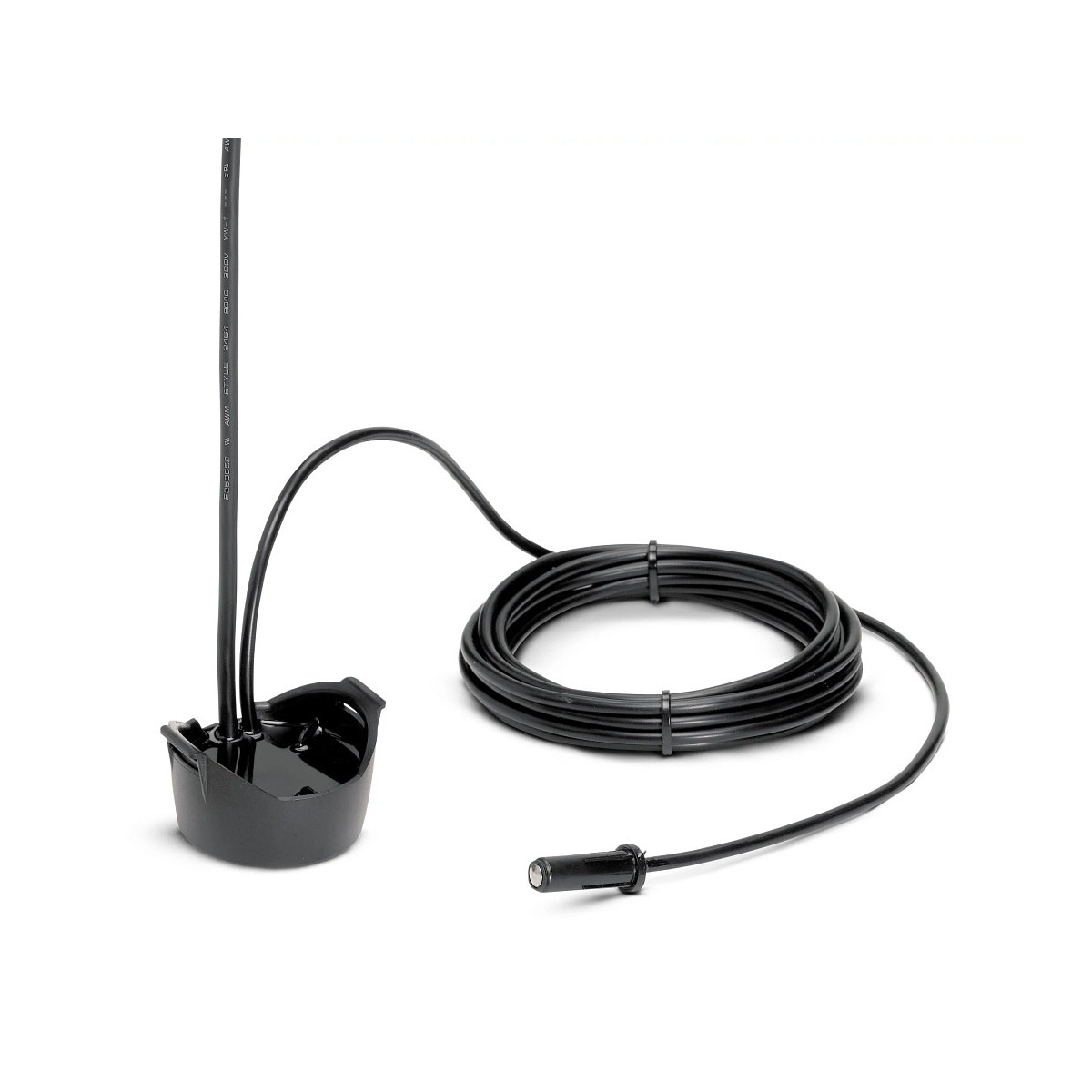

Humminbird XP 9 HW T Transducer

In Hull Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. For use in single layer fiberglass hull. Includes built-in temperature.

Humminbird XP 9 HW T Features:

• Compatible with:
  • HELIX 5 CHIRP G2/G3 – GPS-equipped models only
  • HELIX 7 CHIRP G2/G3/G4 – GPS-equipped and CHIRP DI G2 models
  • HELIX 7 CHIRP G2N/G3N/G4N – All models
  • HELIX 8 CHIRP G3N/ G4N – All models
  • HELIX 9 CHIRP G2N/G3N/G4N – All models
  • HELIX 10 CHIRP G2N/G3N/G4N – All models
  • HELIX 12 CHIRP G2N/G3N/G4N – All models
  • ICE HELIX CHIRP G2/G3 and newer – All models (in Open Water Mode)
  • Side Imaging™ and Down Imaging™ units can support this transducer as a 2D sonar only transducer.
• Cable Length: 15 Feet
• Side Imaging™ and Down Imaging™ units can support the XP 9 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging.
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)
