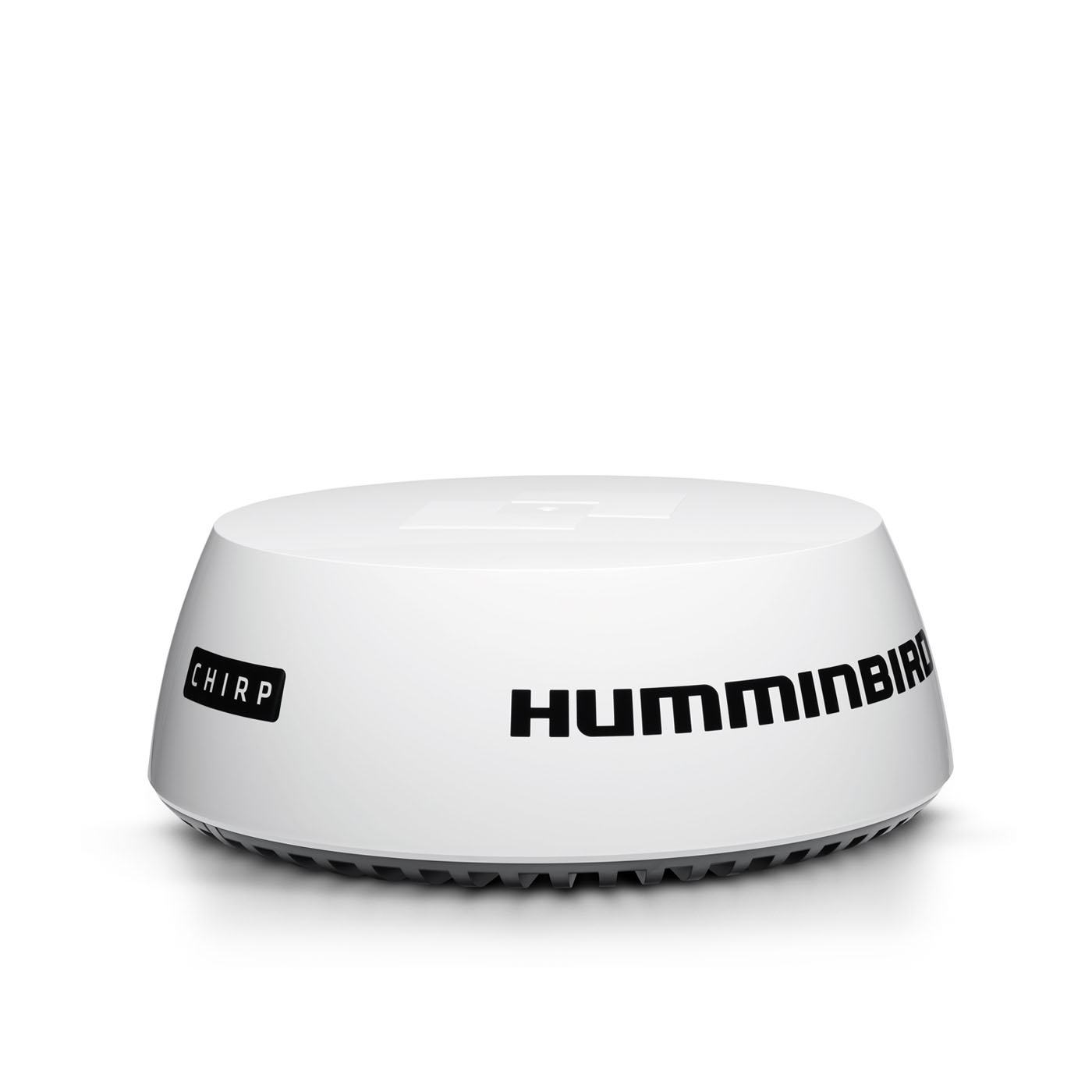

Humminbird HB2124 CHIRP Radar

Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid-state radar. It delivers superior radar imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles for clues to where gamefish are located. In addition, track weather, hazards and other vessels with amazing definition for navigational safety.

HB2124 CHIRP Radar Features:

• Antenna Dimension – 21″ Enclosed Dome; Antenna Type – Patch Array; Peak Power Output – 20 Watts, Transmit Frequency – 9354 to 9446 MHz
• Beam width (nominal) – 4.9° Horizontal and 20° Vertical; Input Voltage – 12 or 24 VDC (Minimum – 10.8 Volts, Maximum – 31.2 Volts)
• Networking – Ethernet; Maximum Range Scale – from 1/16 to 24 nautical miles; Power Consumption – Transmit mode – 17 Watts; Standby Mode – 7 Watts; Sleep Mode – 2 Watts
• Duplexer – Circulator; Pulse Widths @ 3 dB – 40 ns to 14.7µs; CHIRP Lengths – 400 ns to 20µs; CHIRP Bandwidth – Up to 32 MHz
• IF Bandwidth – 26 MHz; Noise – Less than 4 dB; Polarization – Horizontal
• Waterproofing – IPX6
• Weight – 12.3 lbs (5.6 kg)
• Data Cable Length: 32.8′
• Compatible with: All APEX Series, All SOLIX Series, all HELIX 15 Series, all HELIX 12 Series, all HELIX 10 Series, all HELIX 9 Series, all HELIX 8 Series, select networking HELIX 7 Series models (HELIX 7 MSI GPS G3N, HELIX 7 MDI GPS G3N, HELIX 7 CHIRP GPS G3N, HELIX 7 CHIRP SI GPS G2N, HELIX 7 CHIRP DI GPS G2N, HELIX 7 CHIRP GPS G2N), all ONIX Series, all ION Series
