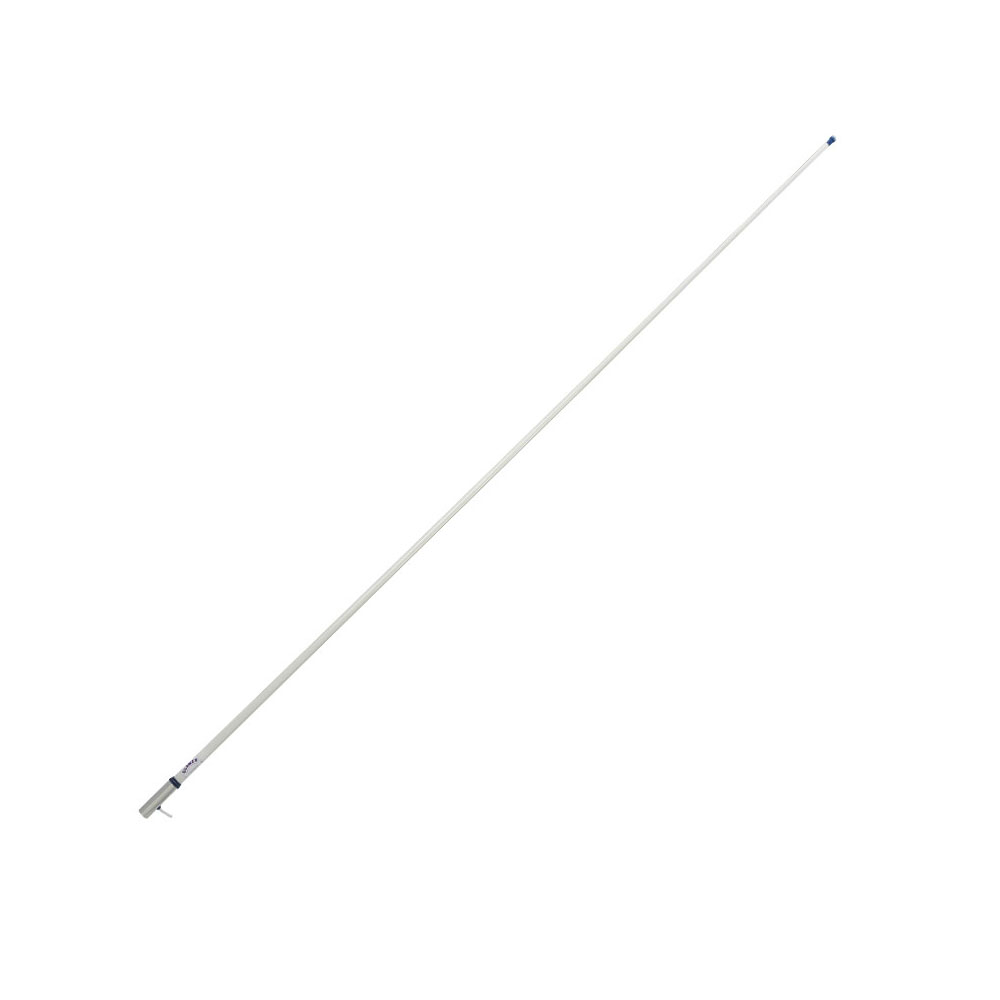

Glomex RA1206CR VHF Marine Antenna

MPN: RA1206CR

$112.00

Please note: Due to the size of this antenna, it can only ship via UPS and extra shipping charges will apply.

The CLASSIC series antennas are designed to fit the specific needs of all motorboats.

In stock

SKU: 9089 Categories: ,

6db, 2.4m (8′) , Fiberglass, Chromed Bushing, 4.5m (15′) Coax Cable

The CLASSIC series antennas are designed to fit the specific needs of all motorboats.

RA1206CR is an economical and light VHF antenna, containing solid brass components inside. It’s equipped with chromed bushing and double-layer painted tube with polished polyurethane resistant to UV-rays.

INSTALLATION:

  • Yacht
  • Power Boat
Weight 4 lbs
Dimensions 95 × 2.25 × 2.25 in
Brand

Glomex
Manufacturer Part Number RA1206CR

Product Specifications

TECHNICAL SPECIFICATIONS

FREQUENCY RANGE 156/162 MHz
GAIN AVERAGE 6dB
IMPEDANCE 50 ohms
POLARIZATION Vertical
SWR ≤1.3 at 156.8 MHz
MAX INPUT POWER 100 W
DC GROUND Yes
ANTENNA LENGHT 2.4m/8”
ANTENNA WEIGHT 670g/23.63oz
TERMINATION Cable

Package Includes

In the Box:

  • RA1206CR Antenna
  • PL259 Male Connector
  • 4.5m Coax Cable
