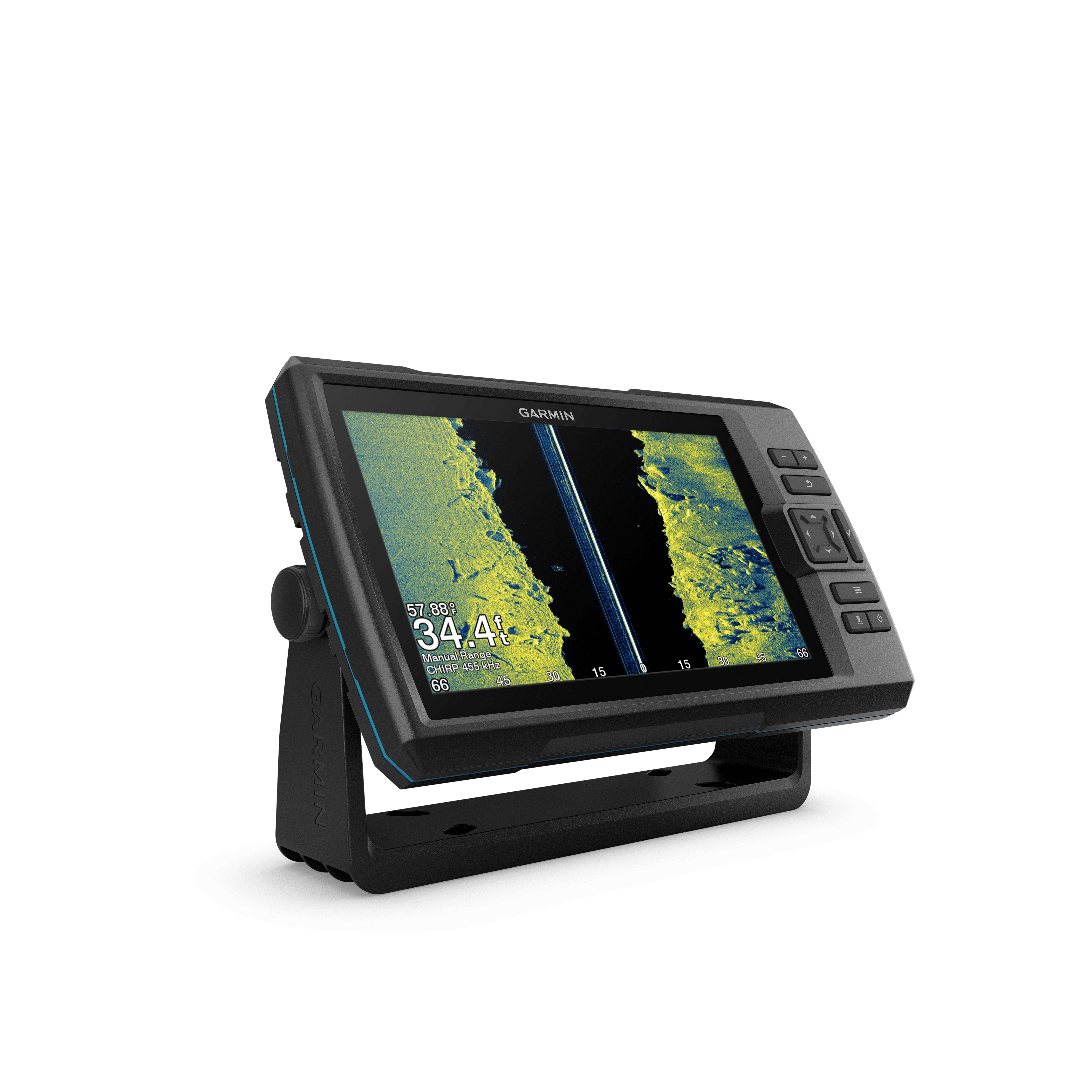

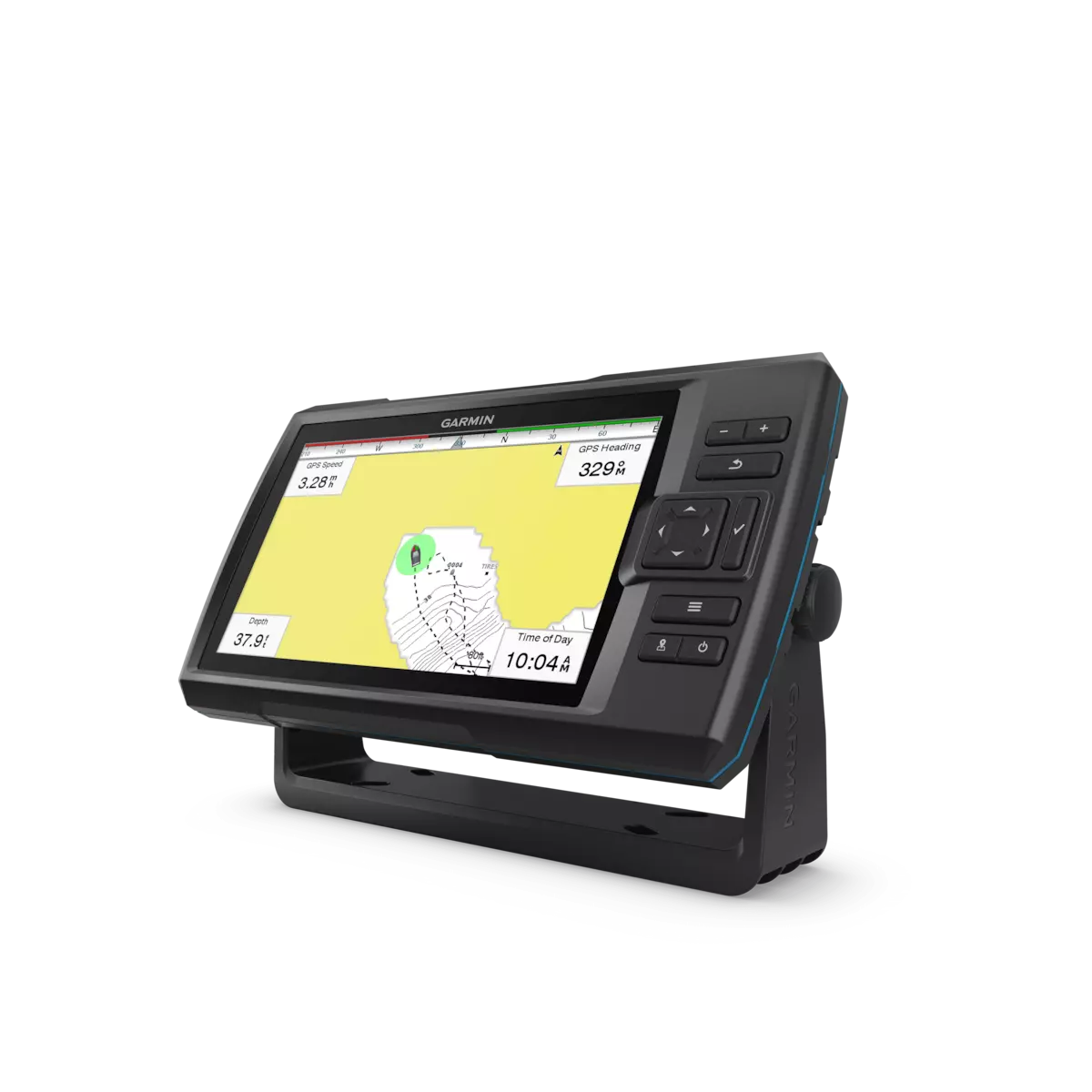

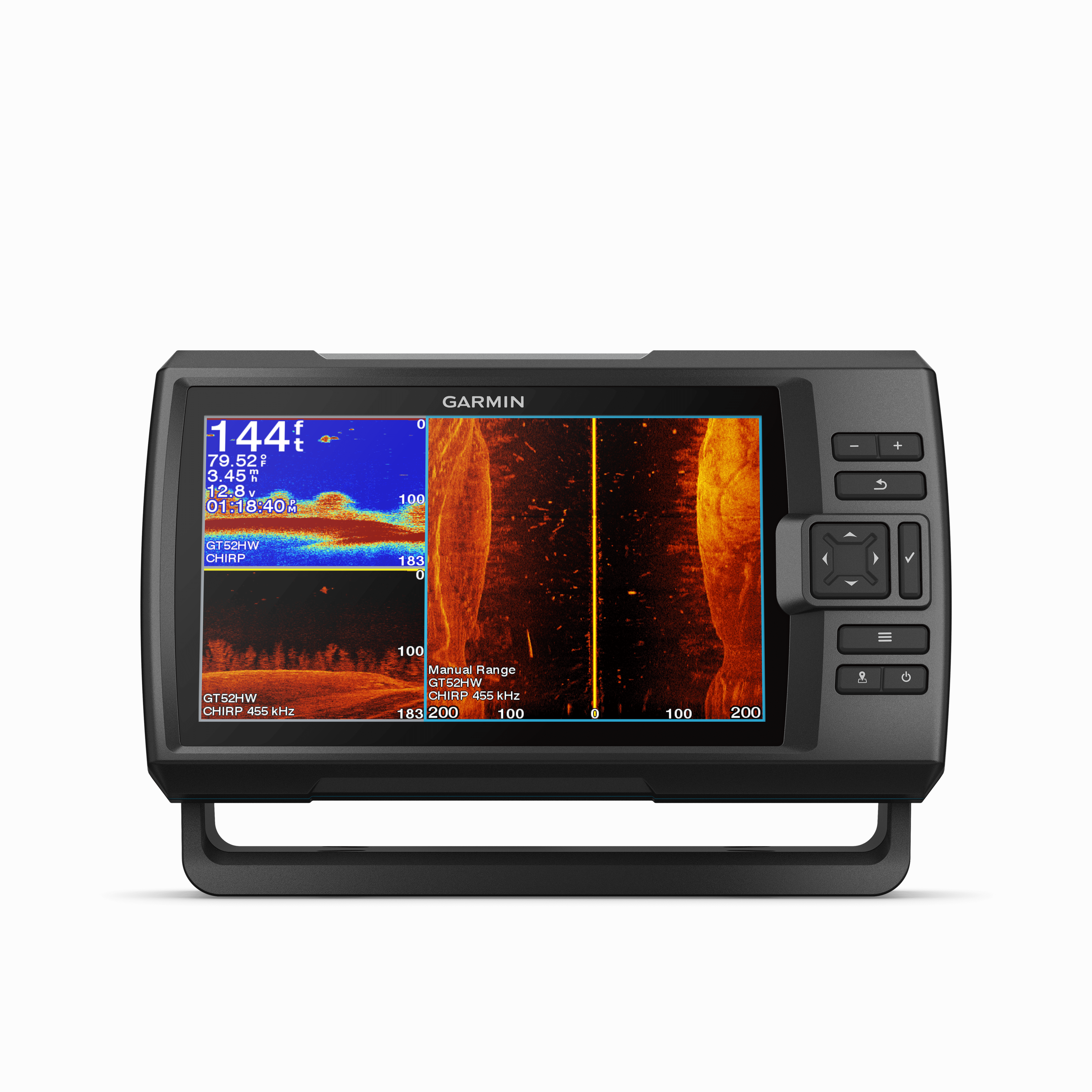

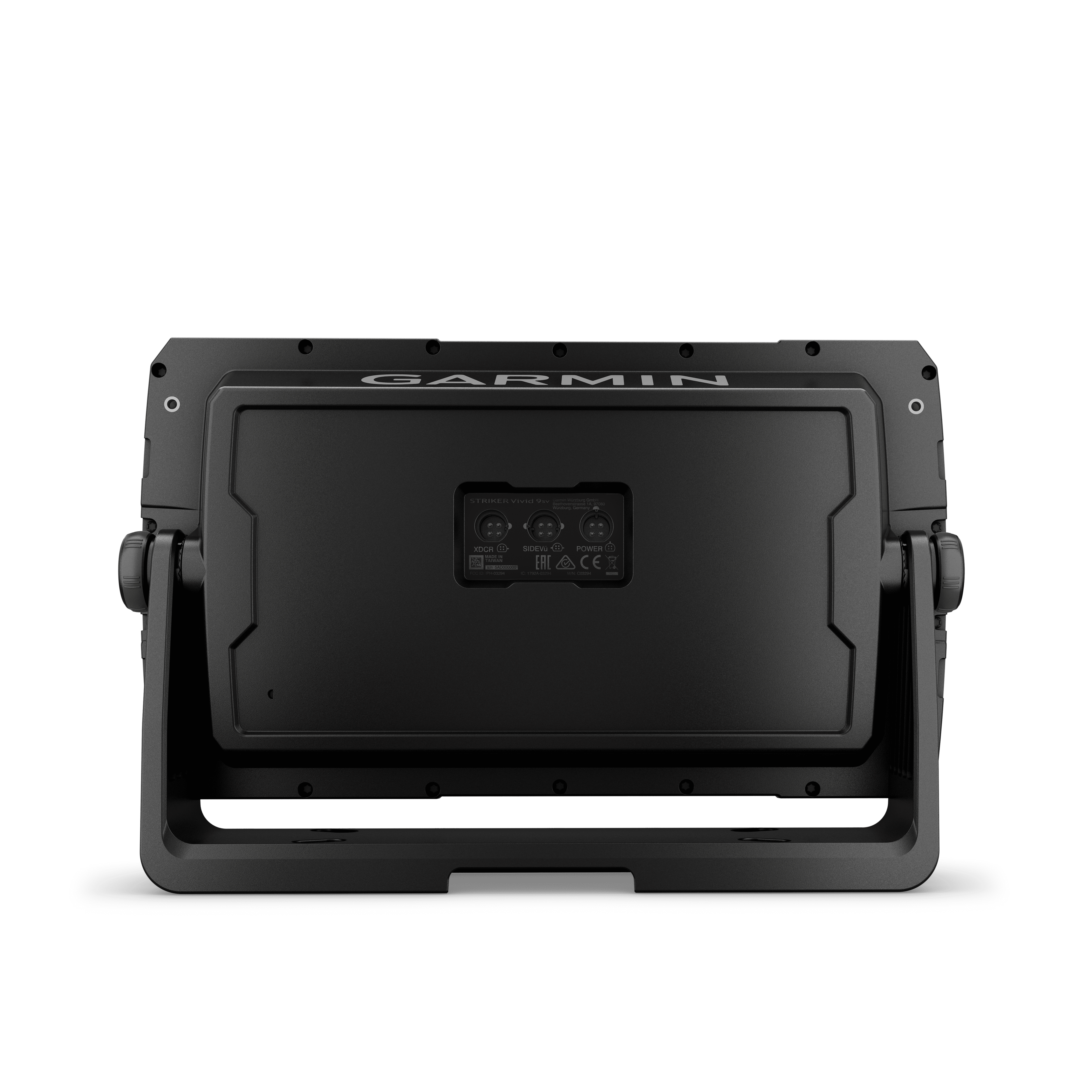

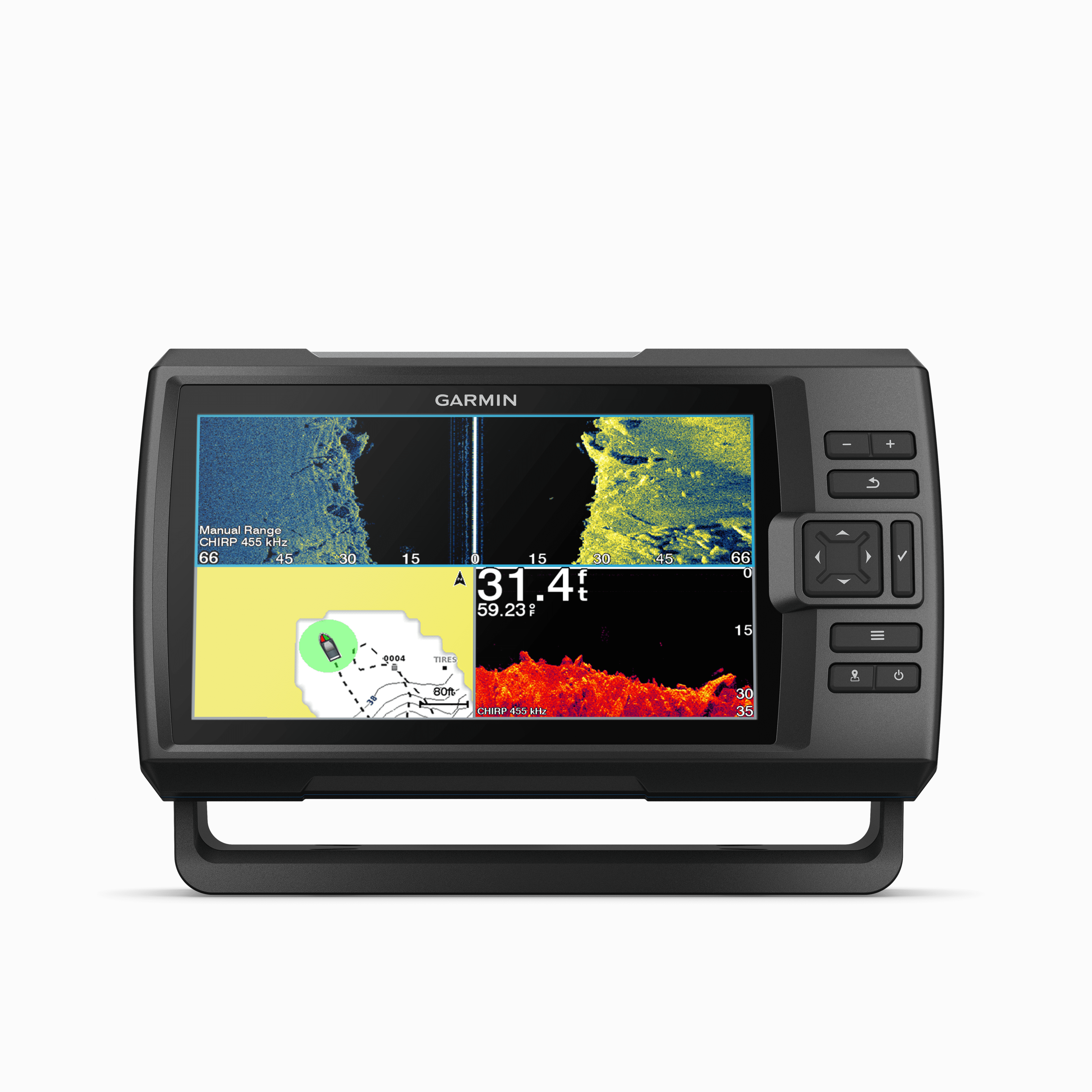

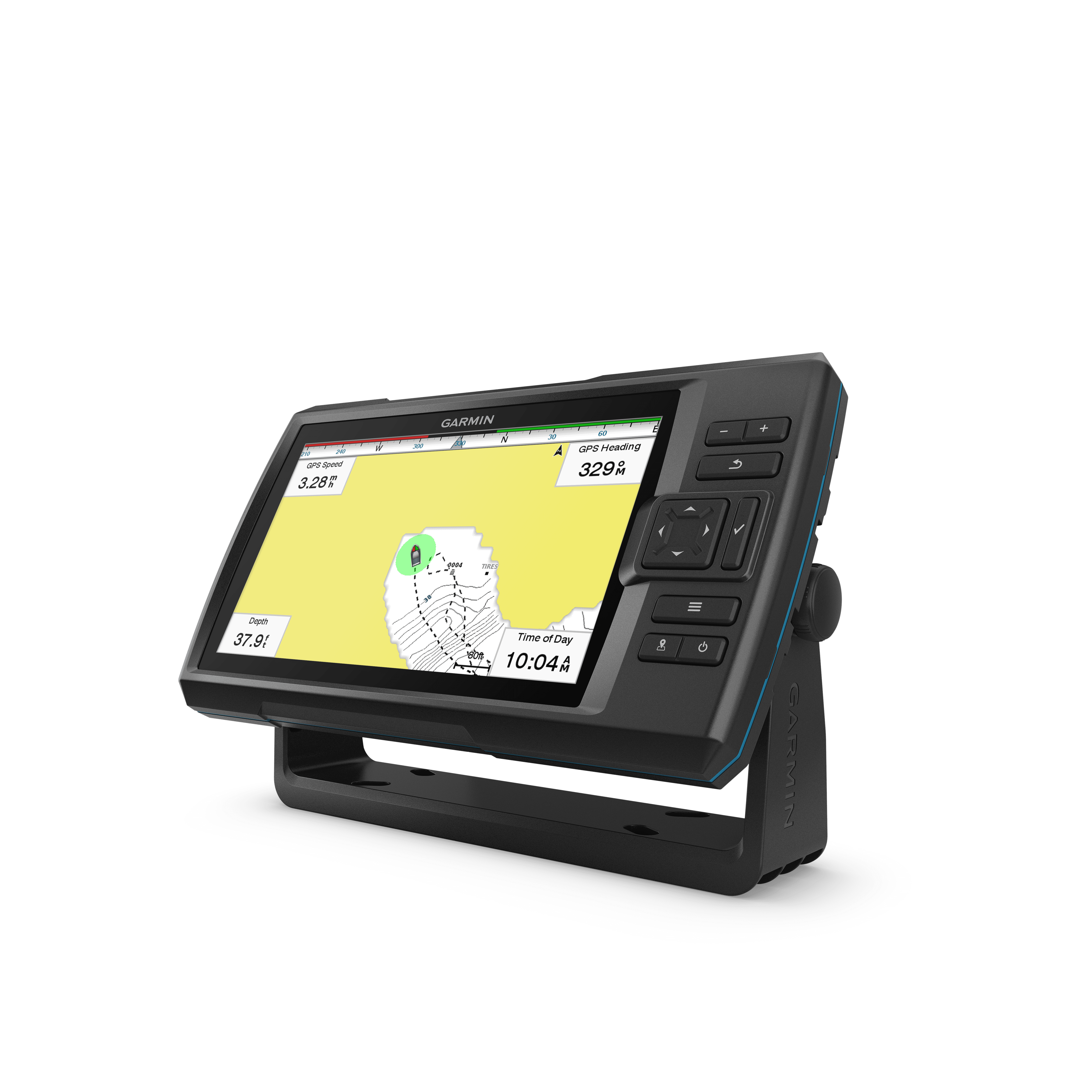

Garmin STRIKER Vivid 9sv

Name: Garmin STRIKER Vivid 9sv (010-02554-01) at GPS Central Canada
Brand: Garmin
SKU: 15360
Availability: InStock

MPN: 010-02554-01

Original price was: $839.99.Current price is: $799.99.

On sale until December 31, 2024

See what’s beneath the surface in clear, colorful detail with this 9” fishfinder with transducer.

Out of Stock (On Order)

SKU: 15360 Categories: Base Stations, HOLIDAY SALES, Marine Sales, Fishfinders, On Sale Tag: Extended Warranty

SEE FISH AND STRUCTURE IN COLORFUL DETAIL

With the Garmin STRIKER Vivid 9sv, you can see fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 9sv fishfinder with transducer.

CLEAR, COLORFUL SONAR

Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 9 ” fishfinder.

BUILT-IN SONAR

Use the included GT52 transducer to get Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars.

WAYPOINT MARKING

To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

HIGH-SENSITIVITY GPS

Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.

QUICKDRAW CONTOURS

Nobody knows the waters you fish better than you. With the Garmin STRIKER Vivid 9sv fishfinder, you can store up to 2 million acres of maps with 1’ contours.

WI-FI CONNECTIVITY

Connect to the ActiveCaptain app¹ to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw™ Community.

INCLUDED HARDWARE

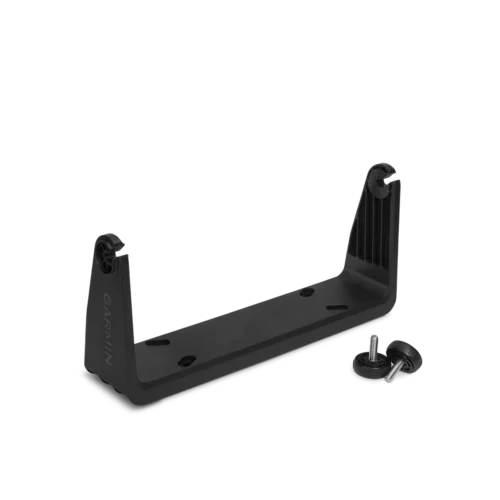

The STRIKER Vivid 9sv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

¹Requires ActiveCaptain app on your compatible smartphone paired to the STRIKER Vivid 7cv fishfinder; see Garmin.com/ble

Weight	6.47 lbs
Dimensions	13.25 × 8.25 × 10 in
Brand	Garmin
Manufacturer Part Number	010-02554-01

Product Video

Specifications

Garmin STRIKER Vivid 9sv Specs

Garmin STRIKER Vivid 9sv Specifications (pdf)

General
DIMENSION	11.1” x 6.5” x 2.4” (28.2 x 16.5 x 6.0 cm)
INPUT	Keyed
DISPLAY SIZE	4.4″ x 7.8″ (11.2 x 19.8 cm); 9.0″ diag (22.8 cm)
DISPLAY RESOLUTION	800 x 480 pixels
DISPLAY TYPE	WVGA color
WEIGHT	2.4 lbs (1.1 kg)
WATERPROOF	IPX7
MOUNTING OPTIONS	flush, tilt/swivel
Maps & Memory
WAYPOINTS/FAVORITES/LOCATIONS	5000
TRACK POINTS	50,000
TRACKS	50
NAVIGATION ROUTES	100
Sensors
HAS BUILT-IN RECEIVER	✔
RECEIVER	Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü and SideVü 260/455/800 kHz
GPS	✔
SUPPORTS WAAS	✔
Optional Map Support
GARMIN QUICKDRAW CONTOURS	✔
Sonar Features & Specifications
DISPLAYS SONAR	✔
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)	Built-in
CLEARVÜ	✔
(SOUNDER) SIDEVÜ	✔
FREQUENCY	Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü and SideVü 260/455/800 kHz
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)	✔
WATER TEMPERATURE LOG	✔
Connections
4-PIN TRANSDUCER PORTS	2
GARMIN WI-FI NETWORK (LOCAL CONNECTION)	✔
Electrical Features
POWER INPUT	12 to 20 Vdc
TYPICAL CURRENT DRAW	0.75 A
MAX CURRENT DRAW	1.5 A
POWER CONSUMPTION	9.0
TRANSMIT POWER	500 W (RMS)
Fishfinder Features
SPLIT-SCREEN ZOOM	✔
FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS)	✔
AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER; MAXIMIZES TARGETS)	✔
ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS)	✔
A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM)	✔
WATER TEMPERATURE SENSOR INCLUDED	✔
DEPTH RANGE SHADING	✔
