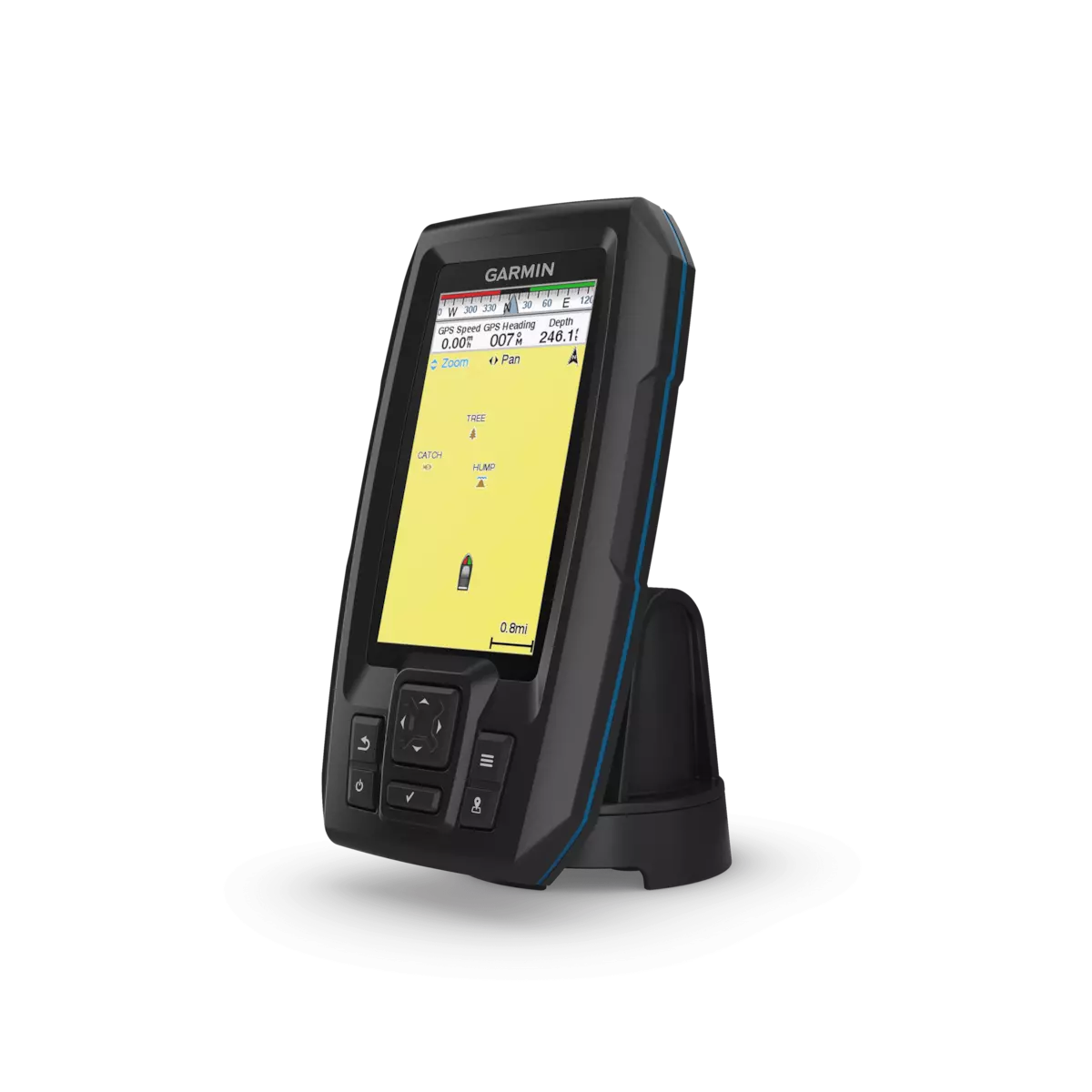

Garmin STRIKER Vivid 4cv
Original price was: $239.99.$199.99Current price is: $199.99.
See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 4cv fishfinder with transducer.
In stock
- Description
- Additional information
- Product Video
- Specifications
- Package Includes
- Product Guides & Documentation
- Accessories
SEE FISH AND STRUCTURE IN COLORFUL DETAIL
See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 4cv fishfinder with transducer.
CLEAR, COLORFUL SONAR
Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 4” fishfinder.
BUILT-IN SONAR
Use the included GT20 transducer to get Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar.
WAYPOINT MARKING
To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.
HIGH-SENSITIVITY GPS
Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.
QUICKDRAW CONTOURS
Nobody knows the waters you fish better than you. With the STRIKER Vivid 4cv fishfinder, you can store up to 2 million acres of maps with 1’ contours.
INCLUDED HARDWARE
The STRIKER Vivid 4cv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.
| Weight | 3.23 lbs |
|---|---|
| Dimensions | 11.5 × 8.25 × 5 in |
| Brand | Garmin |
Product Video
Specifications
Garmin STRIKER Vivid 4cv Specs
General |
|
| DIMENSION | 3.9” x 6.9” x 1.8” (9.8 x 17.4 x 4.5 cm) |
|---|---|
| INPUT | Keyed |
| DISPLAY SIZE | 2.1″ x 3.7″ (5.4 x 9.5 cm); 4.3″ diag, (10.9 cm) |
| DISPLAY RESOLUTION | 272 X 480 pixels |
| DISPLAY TYPE | QSVGA |
| WEIGHT | 0.7 lbs (320 g) |
| WATERPROOF | IPX7 |
| MOUNTING OPTIONS | flush, tilt/swivel |
Maps & Memory |
|
| WAYPOINTS/FAVORITES/LOCATIONS | 5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 |
| NAVIGATION ROUTES | 100 |
Sensors |
|
| HAS BUILT-IN RECEIVER | âś” |
| RECEIVER | Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVĂĽ 260/455/800 kHz |
| GPS | âś” |
| SUPPORTS WAAS | âś” |
Optional Map Support |
|
| GARMIN QUICKDRAW CONTOURS | |
Sonar Features & Specifications |
|
| DISPLAYS SONAR | âś” |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | Built-in |
| CLEARVĂś | âś” |
| FREQUENCY | Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVĂĽ 260/455/800 kHz |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) | âś” |
| WATER TEMPERATURE LOG | âś” |
Connections |
|
| 4-PIN TRANSDUCER PORTS | 1 |
Electrical Features |
|
| POWER INPUT | 12 to 20 Vdc |
| TYPICAL CURRENT DRAW | 0.40 A |
| MAX CURRENT DRAW | 1.5 A |
| POWER CONSUMPTION | 4.8 |
| TRANSMIT POWER | 300 W (RMS) |
Fishfinder Features |
|
| SPLIT-SCREEN ZOOM | âś” |
| FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS) | âś” |
| AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER; MAXIMIZES TARGETS) | âś” |
| ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS) | âś” |
| A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM) | âś” |
| WATER TEMPERATURE SENSOR INCLUDED | âś” |
| DEPTH RANGE SHADING | âś” |
Package Includes
In the Box:
- STRIKER Vivid 4cv fishfinder
- GT20-TM transducer
- Power/data cable
- Tilt/swivel mount
- Hardware
- Documentation
