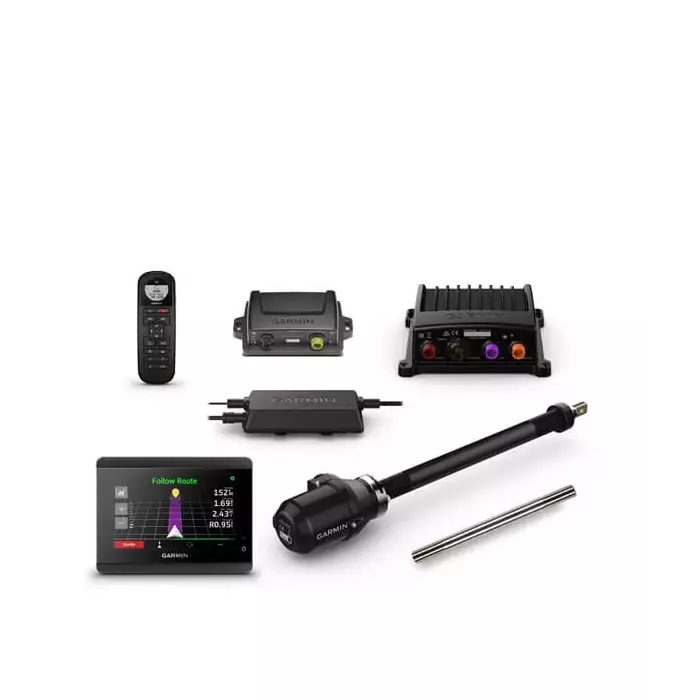

Garmin Reactor 40 Kicker Autopilot with GHC 50 and Stainless Steel Tilt Tube
$4,049.99
Designed for small gasoline boats, this Reactor 40 kicker autopilot gives you the extra hand you need, so you can fish and explore paradise worry-free.
Out of Stock (On Order)
Designed for small gasoline boats, this Reactor 40 kicker autopilot gives you the extra hand you need, so you can fish and explore paradise worry-free.
AUTOPILOT COMPATIBILITY
This kicker autopilot works for boats with small gasoline outboard motors up to 25 horsepower¹.
STAY ON COURSE
Whether you’re fishing for your favorite species or just taking your sailboat out of the marina, this autopilot helps maintain heading hold and route to keep you on course — even against wind, waves or heavy current.
EASY-TO-USE REMOTE CONTROL
The Reactor 40 kicker autopilot includes a convenient floating handheld remote control with a bright, sunlight-readable display. This allows you to quickly and easily control throttle settings as well as drop to idle speeds when netting a fish or coming up to a mooring.
GHC 50 BUNDLE
Combine the Reactor 40 autopilot with the included GHC 50 autopilot instrument to add a dedicated touchscreen autopilot display to your helm. Plus, GHC 50 allows you to share data and settings with Garmin MFDs and other installed Garmin devices.
¹See Autopilot Guide for details on supported motors and required accessories
| Weight | 18.65 lbs |
|---|---|
| Dimensions | 21 × 14 × 9 in |
| Brand | Garmin |
Product Specifications
Reactor™ Autopilot Remote Control Specs:
- Physical dimensions (W x H x D): 6.0” x 2.0” x 1.3” (15.2 x 5.2 x 3.2 cm)
- Weight: 3.8 oz (109 g) without batteries
- Display type: Sunlight-visible, transflective memory-in-pixel (MIP)
- Display size: 1.2” (3.0 cm) diameter
- Display resolution: 240 x 240 pixels
- Power: 2 x AA batteries (sold separately)
ECU 14 Specs:
- Dimensions: 6.9” x 5.6” x 2.6” (17.5 x 14.2 x 6.5 cm)
- Supply voltage range: 10 to 32 volts
- Operating temperature range: -20° to 70° C
- Typical power consumption: 1 to 2 amps average depending on weather conditions
- Water rating: IPX7
Steering Actuator Specs:
- Dimensions:
- Motor side: Extends 4” (10.3 cm) from end of tilt tube
- Motor: 2.5” (6.2 cm) diameter
- Overall length: Closed 17.5” (44.5 cm); Extended 25.3” (64.4 cm)
- Operating temperature range: -20° to 70° C
- Water rating: IPX7
Throttle Actuator Specs:
- Dimensions: 6.0” x 2.5” x 1.1” (15.1 x 5.9 x 2.8 cm)
- Operating temperature range: 0° to 70° C
- Water rating: IPX7 (excluding cable)
GHC 50 Specs:
General |
|
| Dimensions |
4.13” x 4.51” x 2.01” (105 x 140 x 51 mm) |
| Touchscreen |
yes |
| Display resolution |
800 x 480 |
| Display type |
WVGA |
| Weight |
11.57 oz (328 g) |
| Water Rating |
IPX7 |
| Mounting options |
Flat or flush |
Connections |
|
| NMEA 2000 ports |
1 |
| Garmin Marine Network ports |
1 |
| ANT+ (Connectivity) |
yes |
| Garmin Wi-Fi Network (local connection) |
yes |
Electrical Features |
|
| Power input |
9 to 32 Vdc |
| Typical current draw at 12 VDC |
220 mA |
| Maximum current draw at 12 VDC |
400 mA |
| Maximum power usage at 10 VDC |
4.9 W |
Package Includes
In the Box:
- GHC™ 50
- CCU (Course computer unit)
- ECU (Electronic control unit)
- ECU power cable
- ECU to CCU interconnect cable
- Steering actuator
- Stainless steel tilt tube
- Throttle actuator
- Autopilot remote
- NMEA 2000® drop cable (2 m)
- NMEA 2000 power cable
- 2 NMEA 2000 T-connectors
- NMEA 2000 male terminator
- NMEA 2000 female terminator
- Documentation
