Garmin Reactor 40 Hydraulic Autopilot with GHC 50 Autopilot Instrument
$3,039.99
Designed for powerboats, this Reactor 40 hydraulic autopilot gives you the extra hand you need, so you can explore paradise worry-free.
Out of Stock (On Order)
Designed for powerboats, this Reactor 40 hydraulic autopilot gives you the extra hand you need, so you can explore paradise worry-free.
COREPACK COMPATIBILITY
This corepack is an ideal autopilot solution for all types of hydraulically steered powerboats — inboards, outboards, stern drives and diesels — or hydraulically steered sailboats¹. It requires a compatible Garmin chartplotter or GHC 50 autopilot instrument.
SOLID-STATE 9-AXIS AHRS
With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. It even reduces power consumption, minimizes heading error and more.
REACTS TO WATER CONDITIONS
Hold your course on the sea — this autopilot reacts to conditions, so you can remain confident even when you’re pitching or rolling.
SIMPLE CALIBRATION
All autopilots require commissioning and calibration. Reactor 40 makes it quick and easy.
WIRELESS REMOTE CAPABILITIES
Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix® marine smartwatches and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).
SHADOW DRIVE™ TECHNOLOGY
Gain more freedom when maneuvering your boat. This corepack allows for optional Shadow Drive technology to automatically disengage the autopilot when you turn the wheel.
GHC 50 BUNDLE
Combine the Reactor 40 hydraulic autopilot with the GHC 50 autopilot instrument to add a dedicated touchscreen autopilot display to your helm. Plus, GHC 50 allows you to share data and settings with Garmin MFDs and other installed Garmin devices.
POWERBOAT AND SAILING FEATURES
When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns — plus wind hold and tack/jibe when paired with a wind sensor (sold separately). You can even gain additional benefits such as the follow route and Auto Guidance+™ features².
| Weight | 5 lbs |
|---|---|
| Dimensions | 22 × 8 × 8 in |
| Brand | Garmin |
Product Specifications
Reactor™ 40 Hydraulic Autopilot Specs:
- Unit dimensions (WxHxD): 4.3″ x 4.4″ x 1.9″ (10.9 x 11.2 x 4.8 cm)
- Display resolution (WxH): 320 x 240 pixels
- Display type: QVGA color LCD display
- NMEA output: NMEA 2000
- Supply voltage: 10V to 20V
- Operating temperature: -15° C to 70 C° (5° F to 158° F)
GHC 50 Specs:
General |
|
| Dimensions |
4.13” x 4.51” x 2.01” (105 x 140 x 51 mm) |
| Touchscreen |
yes |
| Display resolution |
800 x 480 |
| Display type |
WVGA |
| Weight |
11.57 oz (328 g) |
| Water Rating |
IPX7 |
| Mounting options |
Flat or flush |
Connections |
|
| NMEA 2000 ports |
1 |
| Garmin Marine Network ports |
1 |
| ANT+ (Connectivity) |
yes |
| Garmin Wi-Fi Network (local connection) |
yes |
Electrical Features |
|
| Power input |
9 to 32 Vdc |
| Typical current draw at 12 VDC |
220 mA |
| Maximum current draw at 12 VDC |
400 mA |
| Maximum power usage at 10 VDC |
4.9 W |

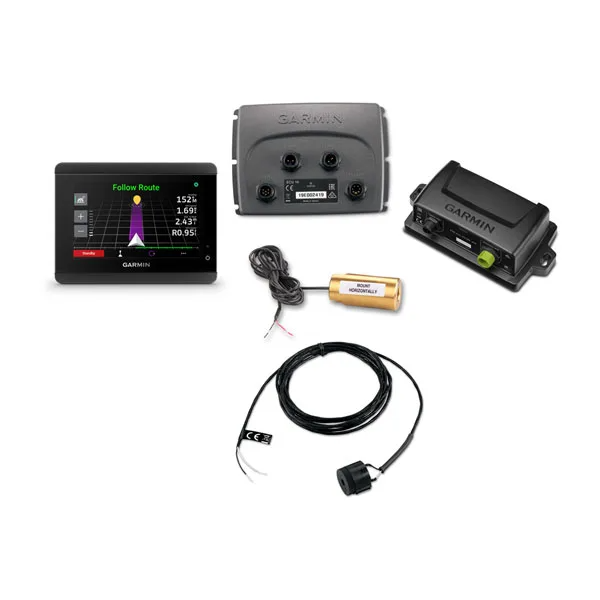

Package Includes
In the Box:
- Reactor 40 CCU (Course Computer Unit)
- GHC™ 50 helm control display
- ECU (Electronic Control Unit)
- ECU power cable
- Interconnect cable
- Shadow Drive
- Buzzer
- NMEA 2000® drop cables (2 meters)
- NMEA 2000 power cable
- NMEA 2000 T-connectors
- Male and female terminators
- Documentation
