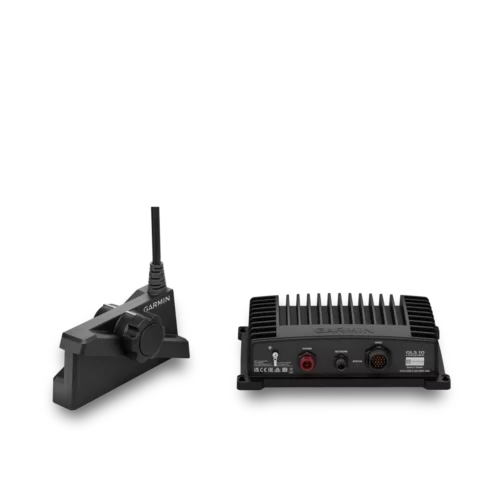

Garmin Panoptix LiveScope Plus System
Original price was: $2,294.99.$2,024.99Current price is: $2,024.99.
On sale until December 31, 2024
Use coupon code: FREESHIP and enjoy FREE Ground shipping via UPS Standard within Canada!
Limited time offer. Bulk orders are subject to shipping charges.
The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.
In stock
- Description
- Additional information
- Product Video
- Product Comparison
- Product Specifications
- Package Includes
- Accessories
The best of the best just got better with the LiveScope Plus System. It’s the latest in LiveScope technology, offering improved resolution, reduced noise, clearer images and better target separation. Now it’s easier than ever to see structure, bait and fish swimming around your boat in real time. Adjust the transducer to fit where you fish; Forward mode shows what’s out in front of your boat and slightly below, Down mode gives you a view of what’s directly below, and Perspective mode is great for a top-down view. The view automatically changes on your compatible Garmin chartplotter1 screen. Attitude heading reference system stabilization keeps your sonar view steady, even in rough conditions. LiveScope Plus includes a trolling motor shaft and barrel mounts plus Perspective Mode Mount.
Garmin Panoptix LiveScope Plus System Features:
HIGH RESOLUTION
35% improved target separation over existing LiveScope™ System
IMAGE SHARPNESS
Brilliantly clear sonar returns, minimal noise and on-screen artifacts (less “ghost tree”).
IMAGE STABILIZATION
A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.
REAL-TIME IMAGES
Real-time sonar ensures that your live images are as accurate as possible.
EASY UPGRADE
The new transducer can be used with an existing LiveScope System black box (GLS™ 10) for an easy upgrade.
VIVID COLOR
Compatible with the vivid color palettes for enhanced detail and clarity
FORCE® TROLLING MOTOR COMPATIBLE
Sized to fit the Force trolling motor as well as other leading trolling motors.
PERSPECTIVE MODE MOUNT
Use all three modes with the included Perspective Mode Mount.
| Weight | 10.87 lbs |
|---|---|
| Dimensions | 13.5 × 8 × 10 in |
| Brand | Garmin |
Product Video
Product Comparison
Garmin LiveScope Systems Comparison
|
LiveScope Plus
|
||
| Transmit power |
500 watts
|
500 watts
|
| Frequencies supported |
530–1,100 kHz
|
530–1,100 kHz
|
| Max depth forward range |
200’
|
200’
|
| Target separation (at 100’ (30.5 m) range) |
14” (35.6 cm)
|
22” (55.9 cm)
|
| Beamwidth |
20–135 degrees
|
20–135 degrees
|
| Arrays |
3
|
3
|
| Dimensions |
6.4” x 2.9” x 1.7”
(162 x 75 x 43 mm) |
5.6” x 3.8” x 1.7”
(136 x 96 x 43 mm) |
| Perspective Mode Mount included |
Yes
|
No
|
| AHRS |
Yes
|
Yes
|
| Install options |
Trolling motor/transom
|
Trolling motor/transom/thru-hull
|
| Transom mount included |
No
|
Yes
|
| Transducer cable length |
20’
|
20’
|
Product Specifications
Garmin Panoptix LiveScope Plus System Specifications
|
General
|
|
|
DIMENSION
|
GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm);
LVS34 transducer: 6.4” x 3.1” x 1.9” (16.2 x 7.8 x 4.8 cm) |
|
WEIGHT
|
GLS 10 sonar black box: 4.3 lbs (2.0 kg);
LVS34 transducer: 2.25 lbs (1.02 kg) |
|
WATERPROOF
|
IPX7
|
|
TEMPERATURE RANGE
|
GLS 10 Black Box: Operating: -15 C to 70 C
Panoptix LiveScope LVS34 Transducer: Operating: 0 C to 40 C |
|
Sonar Features & Specifications
|
|
|
FREQUENCY
|
530 – 1,100 kHz
|
|
MAX DEPTH
|
Down and Forward: 200’ (61.0 m)
|
|
Connections
|
|
|
CONNECTIONS GARMIN MARINE NETWORK PORTS
|
1 (small connector)
|
|
Electrical Features
|
|
|
POWER INPUT
|
10-32 V
|
|
POWER USAGE
|
21 W typical, 58 W max
|
|
TRANSMIT POWER
|
500 W
|
|
FUSE
|
7.5 A
|
|
COMPASS SAFE DISTANCE
|
4″ (0.1 m)
|
|
More Features
|
|
|
MINIMUM DEPTH
|
3′ (0.91 m)
|
|
SONAR TYPE
|
Live
|
|
BEAMWIDTH
|
20° x 135°
|
|
TRANSDUCER CABLE LENGTH
|
20 ft
|
|
TRANSDUCER NUMBER OF PINS
|
21
|
Package Includes
In the Box:
- LiveScope GLS 10 sonar black box
- Panoptix LVS34 transducer
- Perspective mount
- Trolling motor barrel mount
- Shaft mount
- Power cable
- 2 meter Garmin Marine Network cable (small connector)
- Network adapter cable
- Documentation
