Garmin GT30-TH – Stainless Steel Thru-hull DownVü/SideVü 500W

MPN: 010-01961-10

$999.99

(CHIRP 455/800 kHz) Scanning Transducer with Temp, for Hull Deadrises Less Than 5° (12-pin)

Out of Stock (On Order)

SKU: 10414 Categories: ,

(CHIRP 455/800 kHz) Scanning Transducer with Temp, for Hull Deadrises Less Than 5° (12-pin)

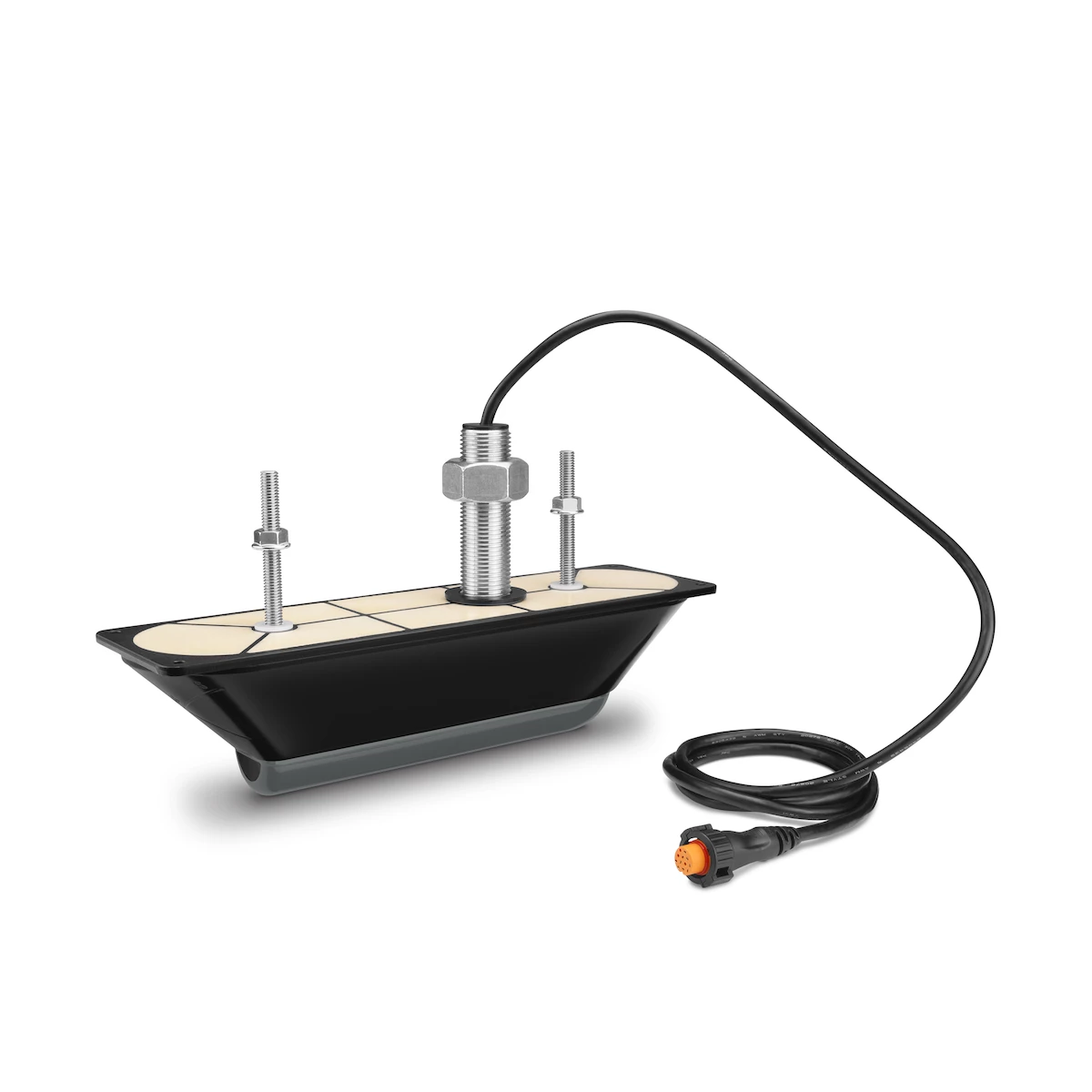

Perfect for the shallow water fisherman who want CHIRP ClearVü and CHIRP SideVü scanning sonar with a stainless steel stem, this 12-pin thru-hull transducer consistently displays clear definition of objects, structure and fish below and to each side of the boat.

The transducer with built-in fast response temperature sensor has a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVü) and 500 ft left and right (SideVü); an operating frequency of CHIRP 455/800 kHz¹; for hull deadrises less than 5 degrees. Pair it with your GCV™ 10 scanning sonar module.

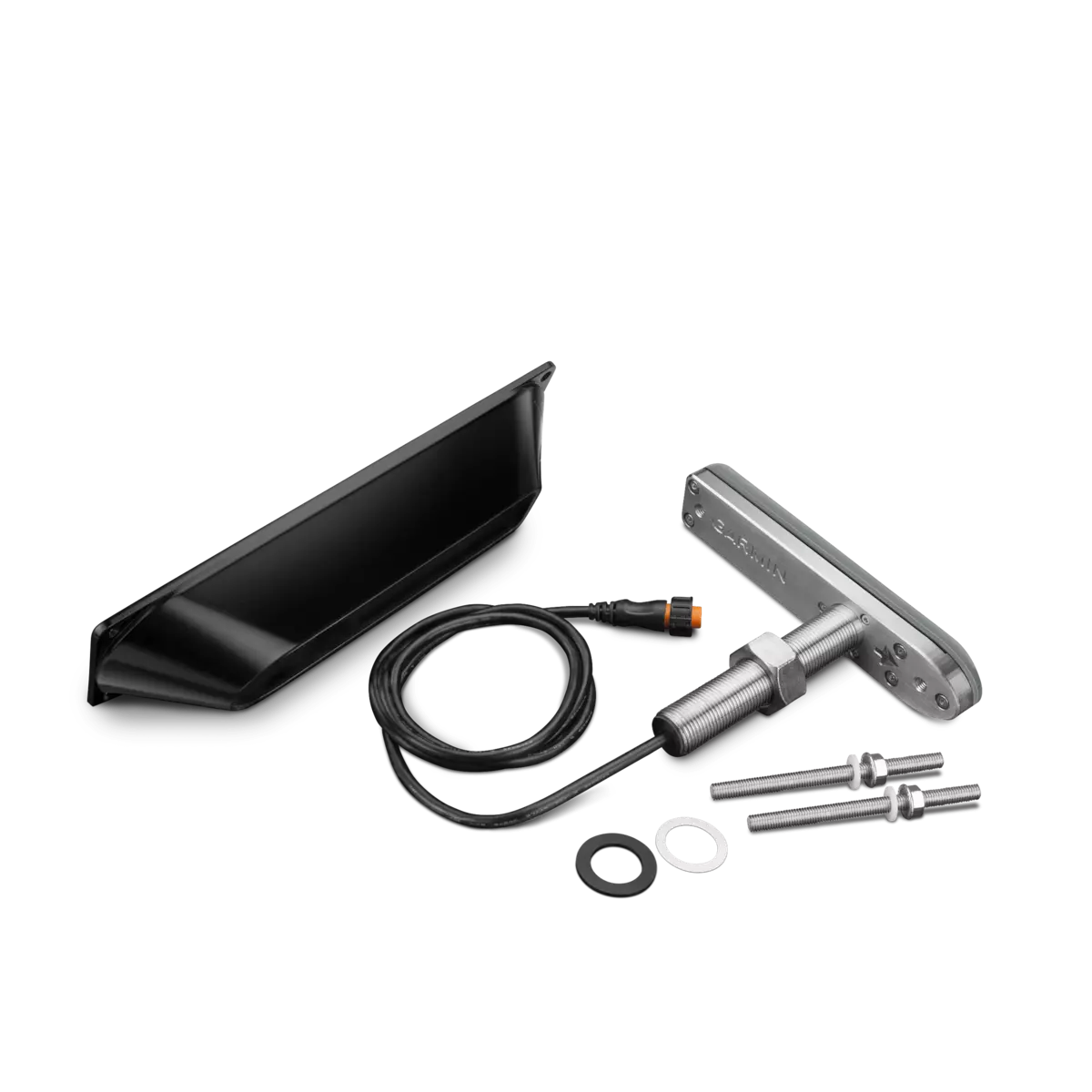

Includes transducer with stainless steel stem, fairing block, isolation plate and bushings, extension cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

Weight 2.08 lbs
Dimensions 11.5 × 3.2 × 2.1 in
Brand

Garmin
Manufacturer Part Number 010-01961-10

Product Specification

Specifications
Frequency
ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
Power
ClearVü/SideVü 500 W
Beamwidth
ClearVü (1.4 @ 455 kHz) & (0.8 @ 800 kHz); SideVü (1.1 @ 455 kHz) & (0.7 @ 800 kHz)
Maximum depth
ClearVü: 750 ft.; SideVü: 500 ft.
Depth/Speed/Temperature
Depth and Temperature
Number of pins
12-pin
Cable length
5 ft. + 30 ft. y-extension cable
Supported deadrise/Transom angles
Up to 25° deadrise
