Specifications:
| Frequency | CHIRP Mid-band (80-160 kHz); ClearVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz) |
| Power | CHIRP Traditional 600 W; ClearVü 500 W |
| Beamwidth | Traditional (24-13); ClearVü (2.0 @ 260 kHz) & (1.4 @ 455 kHz) |
| Maximum depth | Traditional: 1,800 ft.; ClearVü: 1,000 ft. |
| Depth/Speed/Temperature | Depth and Temperature |
| Number of pins | 8-pin |
| Cable length | 30 ft. |
| Supported deadrise/Transom angles | Up to 25° deadrise |
In the Box:

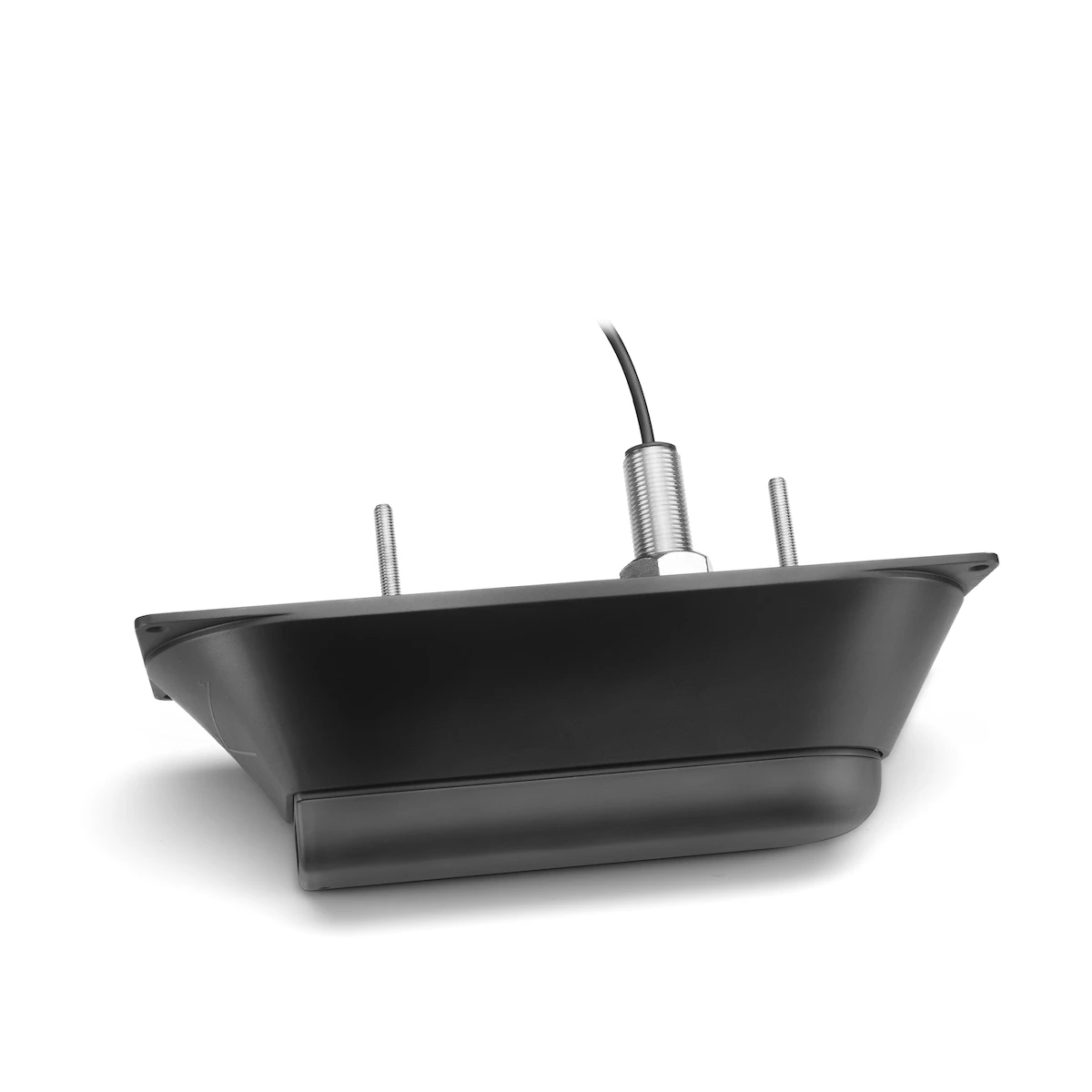

- GT23M-TH transducer
- Stainless steel stem
- Fairing block
- Isolation plate and bushings
- Extension cable
- Mounting hardware
- Documentation
