Garmin GPSMAP 943 GN+ Specifications
General |
|
| DIMENSION | 9.2″ x 6.4″ x 3″ (23.3 x 16.2 x 7.6 cm) |
|---|---|
| TOUCHSCREEN | ✔ |
| INPUT | Touchscreen |
| DISPLAY SIZE | 7.8″ x 4.4″; 9.0″ diagonal (19.9 cm x 11.2 cm; 22.9 cm diagonal) |
| DISPLAY RESOLUTION | 1280 x 720 pixels |
| DISPLAY TYPE | WXGA |
| WEIGHT | 3.6 lbs (1.6 kg) |
| WATERPROOF | IPX7 |
| MOUNTING OPTIONS | Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
Maps & Memory |
|
| ACCEPTS DATA CARDS | 2 microSD cards (back of unit) |
| WAYPOINTS | 5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
Sensors |
|
| HAS BUILT-IN RECEIVER | ✔ |
| RECEIVER | 10 Hz |
| NMEA 2000 COMPATIBLE | ✔ |
| NMEA 0183 COMPATIBLE | ✔ |
| GPS | ✔ |
| GLONASS | ✔ |
| GALILEO | ✔ |
| SUPPORTS WAAS | ✔ |
Built-in Maps |
|
| BUILT-IN AUTO GUIDANCE+ | ✔ |
| GARMIN NAVIONICS+ INLAND & COASTAL | ✔ |
| TIDE TABLES | ✔ |
Optional Map Support |
|
| BLUECHART G3 | ✔ |
| BLUECHART G3 VISION | ✔ |
| LAKEVÜ G3 | ✔ |
| LAKEVÜ G3 ULTRA | ✔ |
| GARMIN NAVIONICS+™ | ✔ |
| GARMIN NAVIONICS VISION+™ | ✔ |
| TOPO | ✔ |
| STANDARD MAPPING | ✔ |
| GARMIN QUICKDRAW CONTOURS | ✔ |
| RASTER CHART SUPPORT | ✔ |
Chartplotter Features |
|
| SMART MODE COMPATIBLE | ✔ |
| AIS | ✔ |
| DSC | ✔ |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | ✔ |
| GSD BLACK BOX SONAR SUPPORT | ✔ |
| GCV BLACK BOX SONAR SUPPORT | ✔ |
| ACTIVECAPTAIN® COMPATIBLE | ✔ |
| GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE | ✔ |
| WIRELESS REMOTE COMPATIBLE | ✔ |
| SAILING FEATURES | ✔ |
| SPOKEN AUDIO ALERTS | ✔ |
| ONEHELM SUPPORT | ✔ |
Sonar Features & Specifications |
|
| DISPLAYS SONAR | ✔ |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | yes (with GCV™ black box, sold separately) |
| CLEARVÜ | yes (with GCV™ black box, sold separately) |
| SIDEVÜ | yes (with GCV™ black box, sold separately) |
| PANOPTIX™ SONAR | ✔ |
| LIVESCOPE | ✔ |

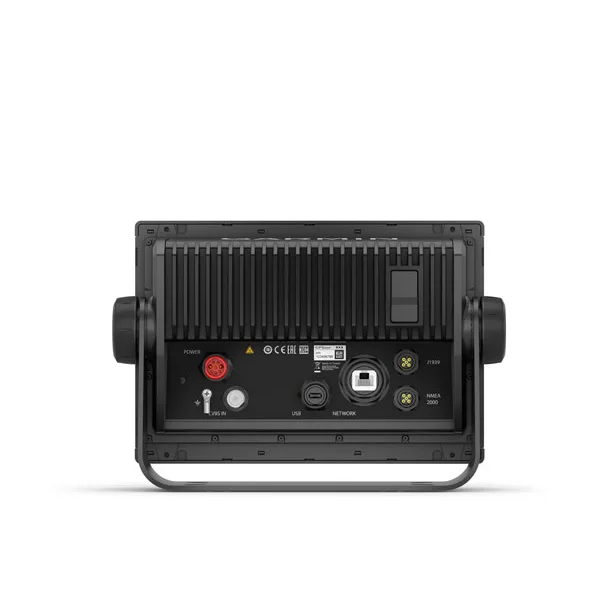

Connections |
|
| NMEA 2000 PORTS | 1 |
| CONNECTIONS NMEA0183 INPUT PORTS | 1 |
| NMEA 0183 INPUT (TX) PORTS | 1 |
| VIDEO INPUT PORTS | 1 (BNC composite) |
| J1939 PORTS | 1 |
| GARMIN MARINE NETWORK PORTS | 1 |
| USB PORTS | ✔ |
| BNC EXTERNAL GPS ANTENNA PORT | ✔ |
| BLUETOOTH® PAIRING | ✔ |
| ANT+ (CONNECTIVITY) | ✔ |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | ✔ |
Electrical Features |
|
| POWER INPUT | 10 to 32 Vdc |
| TYPICAL CURRENT DRAW AT 12 VDC | 1.34 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 1.78 A |
| MAXIMUM POWER USAGE AT 10 VDC | 22.0W |
In the Box:
- GPSMAP 943 chartplotter
- microSD™ card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
