Garmin GPSMAP 8622 GN+ MFD Marine GPS
$13,389.99
Use coupon code:Â FREESHIP and enjoy FREE Ground shipping via UPS Standard within Canada!
Limited time offer. Bulk orders are subject to shipping charges.
Take Control of a Beautiful Helm with the Garmin Marine GPSMAP 8622 with pre-loaded Garmin Navionics+ Mapping
Out of Stock (On Order)
- Description
- Additional information
- Video
- Specifications
- Package Includes
- Product Guides & Documentation
- Accessories

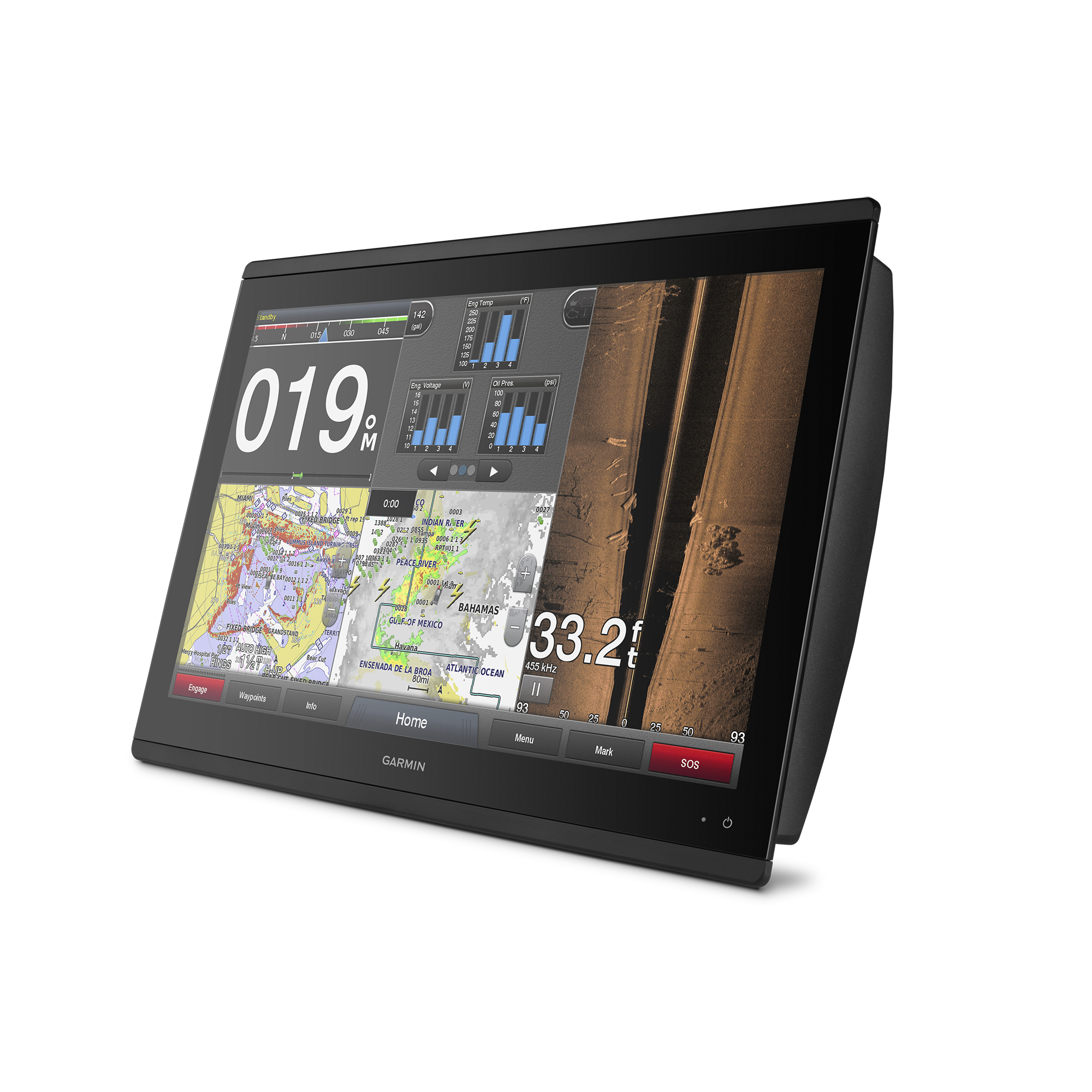

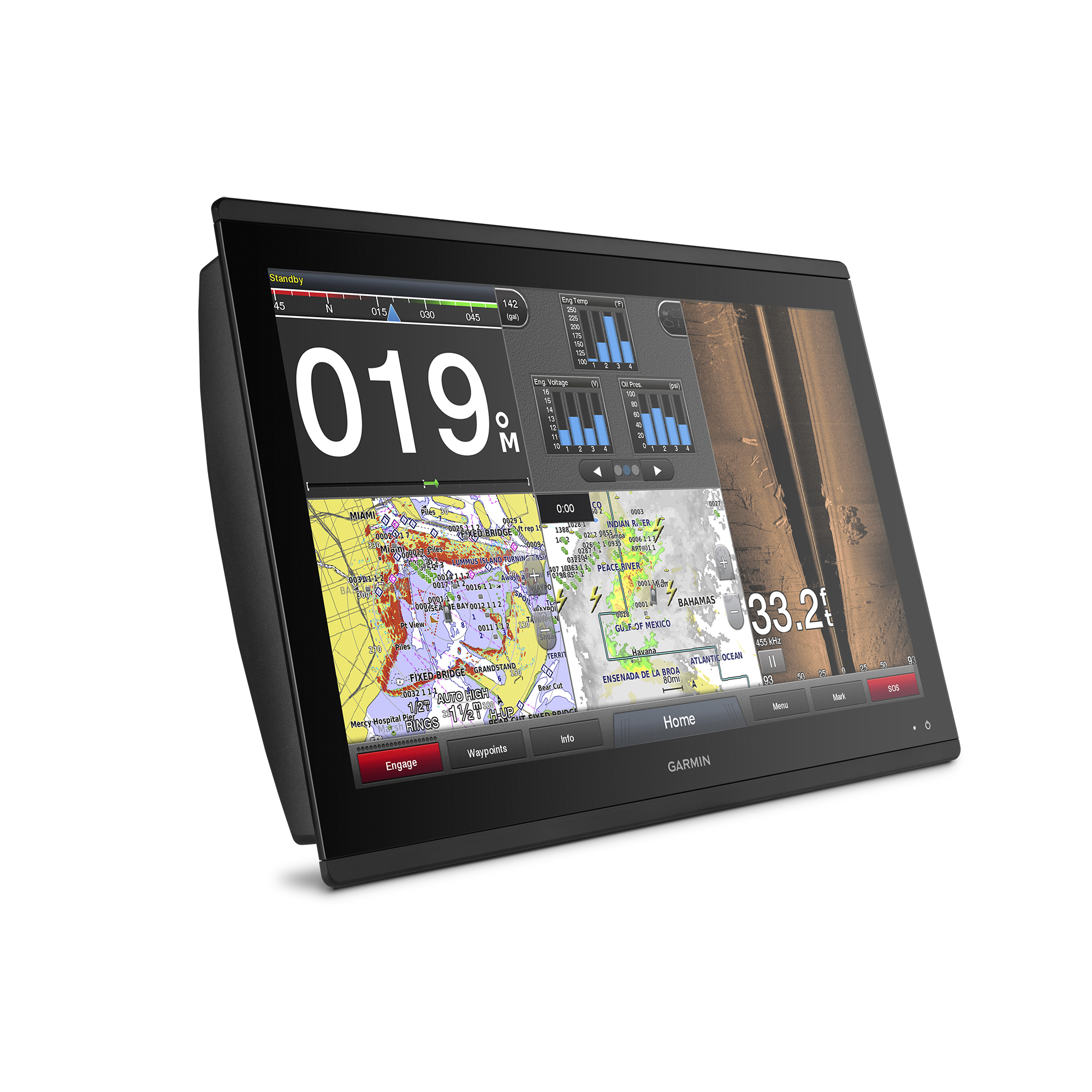

Take Control of a Beautiful Helm with the Garmin Marine GPSMAP 8622
- Premium 22-inch screen with full HD display and pinch-to-zoom touchscreen control has highest resolution on the marine market
- Configure the full system to provide 1-touch setting access for docking, cruising, fishing, anchoring and more on this boat GPS
- Beautiful glass helm look with ability to install multiple displays either flush or flat mounted edge-to-edge
- High-performance processor delivers our fastest map drawing ever and enhanced video processing

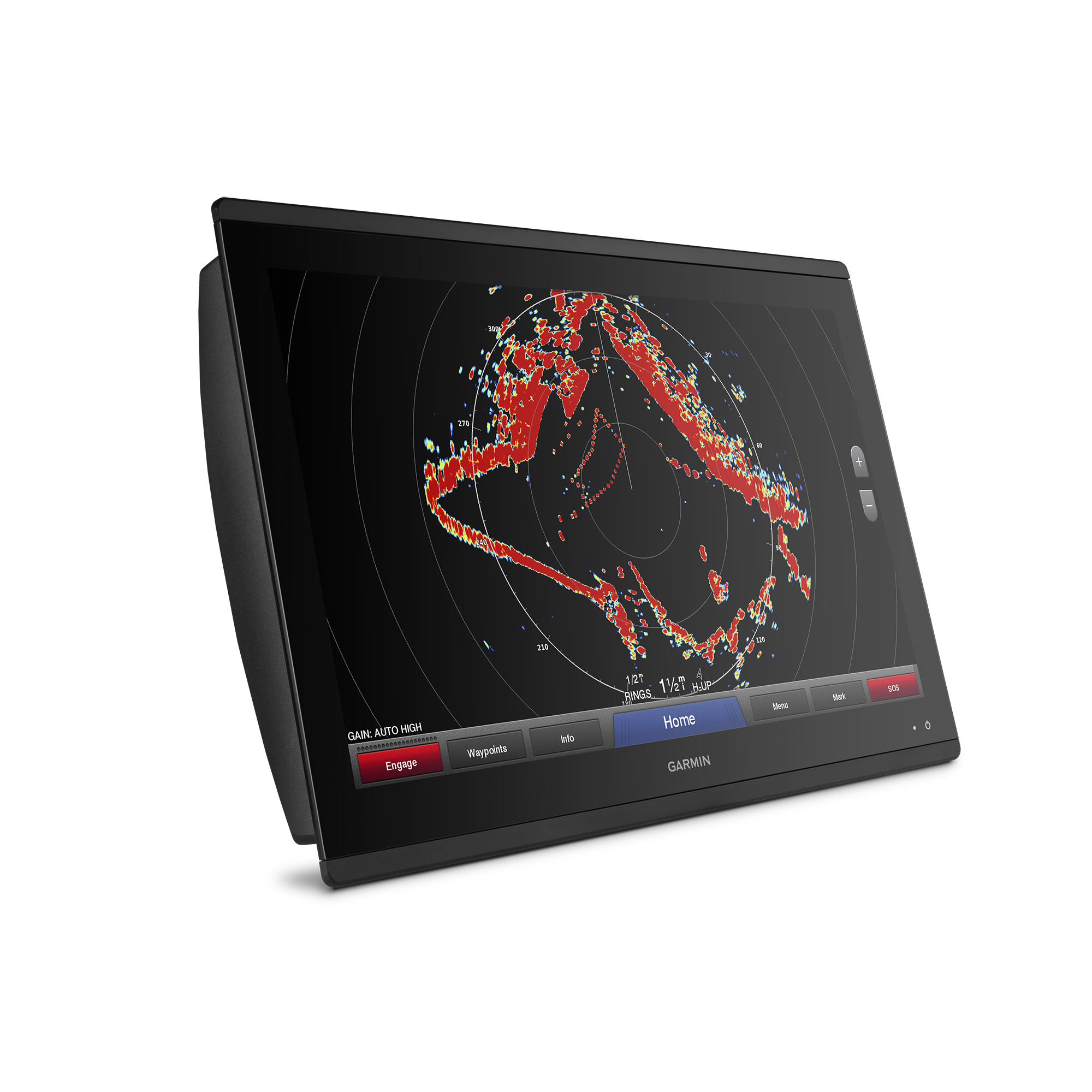

- Provides a superior user experience across your entire network for radar, sonar and multimedia
Garmin GPSMAP 8622 large-format multifunction display (MFD) features a 22-inch full HD screen with touch control. Sunlight-readable, anti-glare display is exceptionally easy to view and also includes auto-dimming feature for use in low light or at night to navigate day or night on your boat. New maximum glass design enables you to experience a beautifully powerful, completely networked helm at your fingertips. In-plane switching (IPS) LCD display — an industry first for this class — provides consistent, accurate colors from all viewing angles. It also provides standard USB touch output for use as a touchscreen monitor for Windows® and Mac® operating systems. Install multiple displays with the industry’s lowest flush-mount profile or flat mount them edge-to-edge to create a sleek glass helm look. Quick, 1-touch access to the information you need makes boating easier.
HD IPS TOUCHSCREEN
Available in sizes from 10” to 24”, this display offers wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses.
SIMPLE, ATTRACTIVE MOUNTING OPTIONS
You can install multiple displays, either flat mounted edge-to-edge for a sleek glass helm look or mounted flush — creating a stunning helm.
GRID™ 20 REMOTE CONTROL
The optional, easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system.

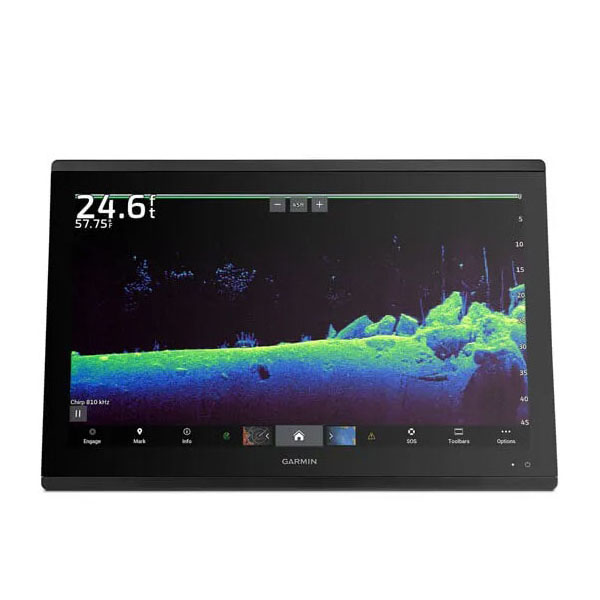

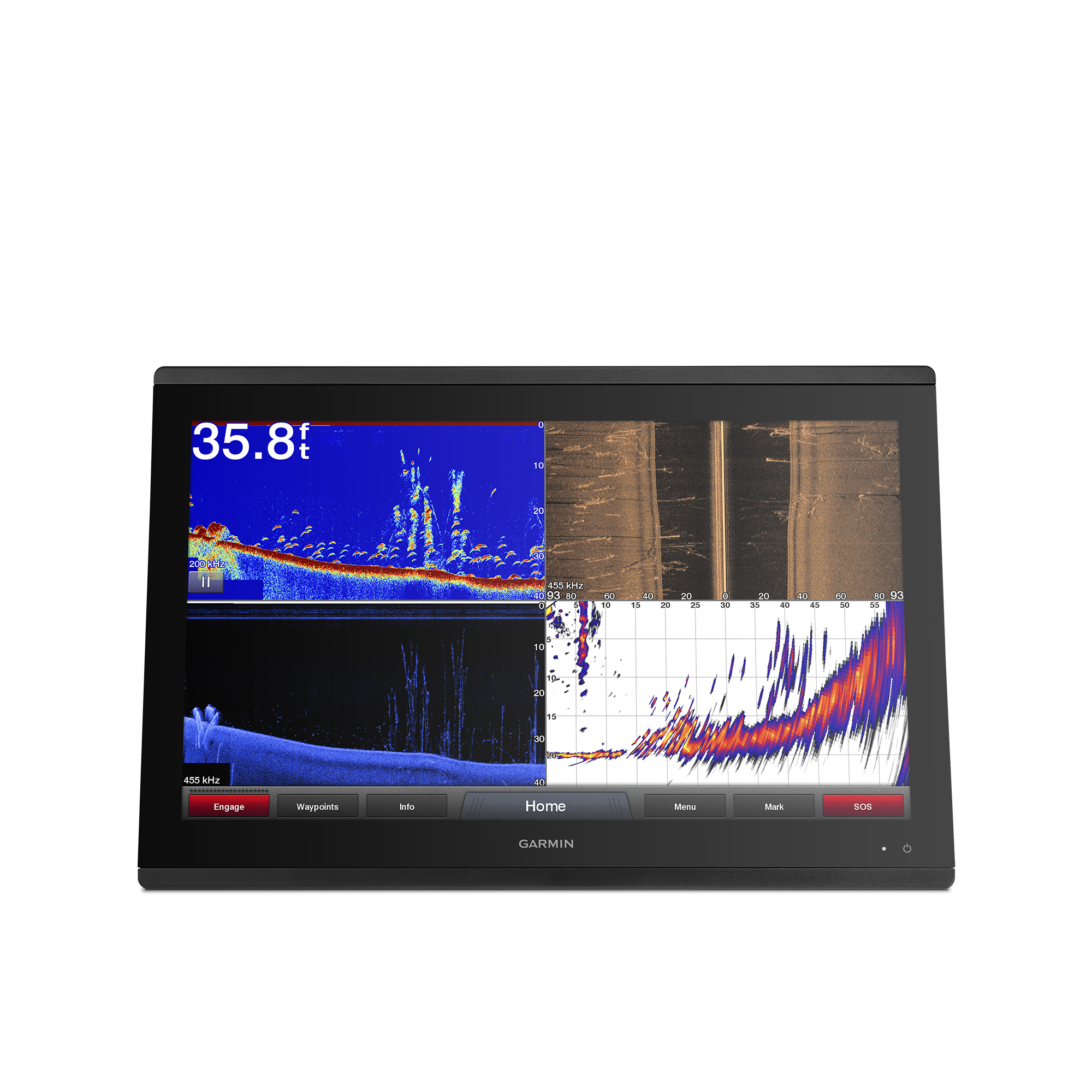

TRADITIONAL AND SCANNING SONAR SUPPORT
Get built-in support for 1-kW Dual-Channel CHIRP traditional sonar for superior target separation and ClearVü and SideVü scanning sonars to see up to 1,000’ below and around your boat at 260 kHz (requires transducer, sold separately).
LIVE SONAR SUPPORT
Pair your chartplotter with Garmin live sonar options (transducer sold separately) to see all around your boat in real time.
GARMIN SAILASSIST™ SAILING FEATURES
View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, polars and more.

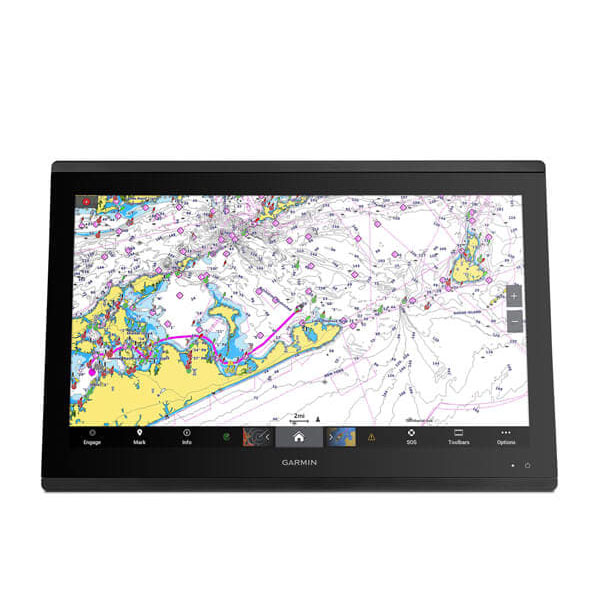

PRELOADED MAPPING
Experience unparalleled coverage and detail with built-in Garmin Navionics+™ integrated coastal and inland mapping¹ with Auto Guidance+™ technology² on select chartplotters.
OPTIONAL CHARTS AND MAPS
Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+ premium charts, featuring high-resolution relief shading, satellite imagery, sonar imagery and more.
SAILING POLARS
Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim.
GARMIN MARINE NETWORK
If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP cameras — among them.
NMEA 2000® AND NMEA 0183 NETWORKS
Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen.
ACTIVECAPTAIN® APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the all-in-one mobile app for access to the OneChart™ feature, smart notifications3 , software updates, Helm, Garmin Quickdraw™ Community data and more.
INTEGRATED BLUETOOTH® AND ANT TECHNOLOGIES
Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.
ONEHELM™ FEATURE
This feature brings together all the operations and capabilities of third-party devices, such as EmpirBus™ digital switching, on one screen.
SMARTMODE STATION CONTROLS
Get quick, one-touch access to the information you need to ease high-stress situations such as docking. You can incorporate networked sonar, radar, cameras, media and more.
| Weight | 26 lbs |
|---|---|
| Dimensions | 25 × 18 × 12 in |
| Brand | Garmin |
| Compatibility | Autopilot, Live Sonar, Radar |
| Connectivity | Networking, NMEA 0183, NMEA 2000 |
| Preloaded Maps | Garmin Navionics+ |
| Screen Size | 22" |
Video
Specifications
Garmin GPSMAP 8622 MFD Specs
General |
|
| DIMENSION | 20.8″ x 13.8″ x 2.8″ (52.8 cm x 35.1 cm x 7.1 cm) |
|---|---|
| TOUCHSCREEN | âś” |
| DISPLAY SIZE | 18.8″ x 10.6″; 21.5″ diagonal, 47.8 cm x 27.0 cm; 54.6 cm diagonal |
| DISPLAY RESOLUTION | 1920 x 1080 pixels |
| DISPLAY TYPE | FHD, IPS |
| WEIGHT | 15.63 lbs (7.09 kg) |
| WATERPROOF | IPX7 |
| MOUNTING OPTIONS | Flush or flat |
Maps & Memory |
|
| ACCEPTS DATA CARDS | 2 SD Cards (with Garmin SD card reader accessory) |
| WAYPOINTS | 5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
Sensors |
|
| NMEA 2000 COMPATIBLE | âś” |
| NMEA 0183 COMPATIBLE | âś” |
Built-in Maps |
|
| BUILT-IN AUTO GUIDANCE+ | âś” |
| GARMIN NAVIONICS+ INLAND & COASTAL | âś” |
| TIDE TABLES | âś” |
Optional Map Support |
|
| GARMIN NAVIONICS+™ | ✔ |
| GARMIN NAVIONICS VISION+™ | ✔ |
| TOPO | âś” |
| STANDARD MAPPING | âś” |
| GARMIN QUICKDRAW CONTOURS | âś” |
| RASTER CHART SUPPORT | âś” |
Chartplotter Features |
|
| SMART MODE COMPATIBLE | âś” |
| AIS | âś” |
| DSC | âś” |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | ✔ |
| GSD BLACK BOX SONAR SUPPORT | âś” |
| GCV BLACK BOX SONAR SUPPORT | âś” |
| ACTIVECAPTAIN® COMPATIBLE | yes |
| GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE | âś” |
| WIRELESS REMOTE COMPATIBLE | âś” |
| SAILING FEATURES | âś” |
| SPOKEN AUDIO ALERTS | âś” |
| ONEHELM SUPPORT | âś” |
Sonar Features & Specifications |
|
| DISPLAYS SONAR | âś” |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | Yes (with external black box, sold separately) |
| CLEARVÜ | yes (with GCV™ black box, sold separately) |
| (SOUNDER) SIDEVÜ | yes (with GCV™ black box, sold separately) |
| PANOPTIX™ SONAR | ✔ |
| LIVESCOPE | âś” |

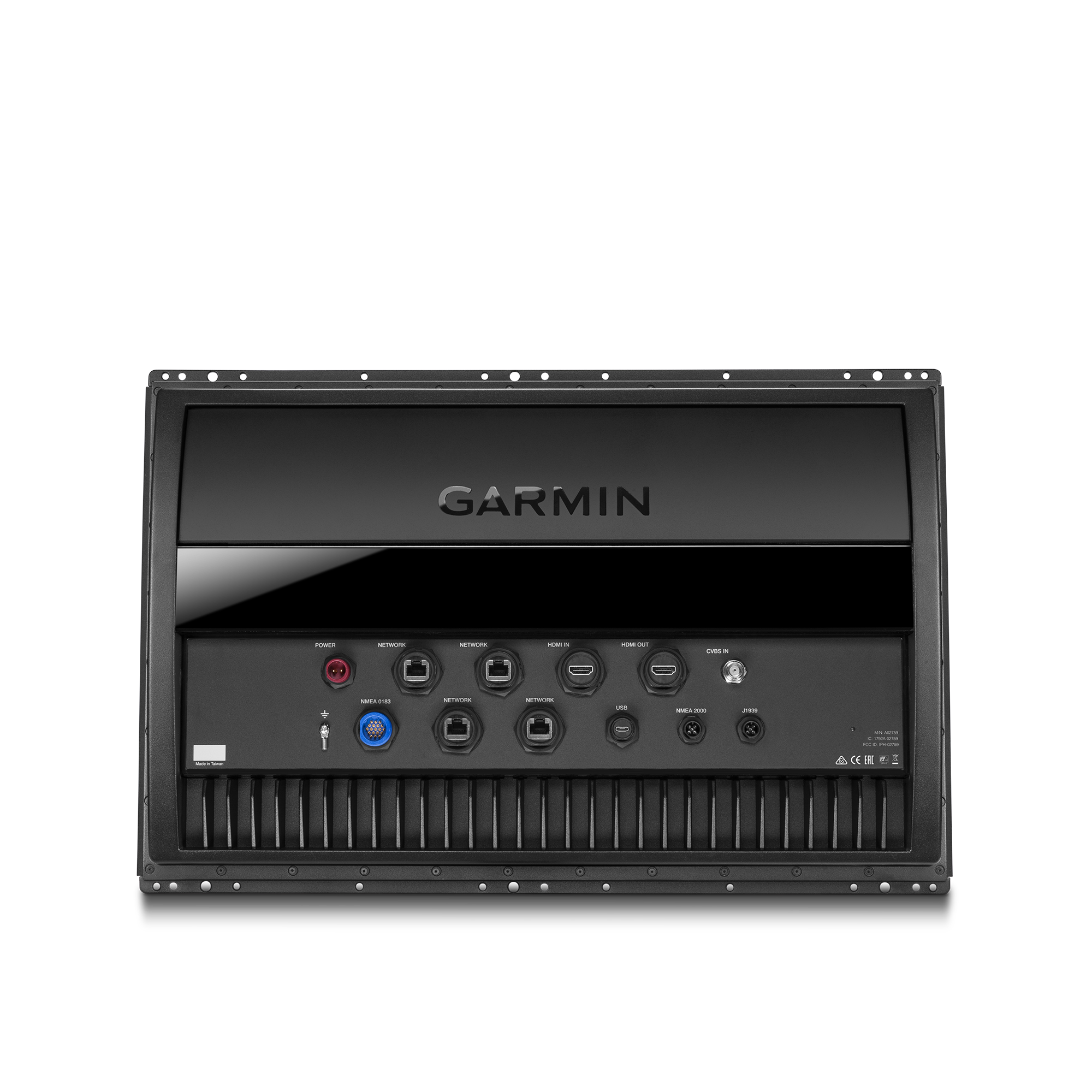

Connections |
|
| NMEA 2000 PORTS | 1 |
| CONNECTIONS NMEA0183 INPUT PORTS | 4 |
| NMEA 0183 INPUT (TX) PORTS | 2 |
| VIDEO INPUT PORTS | 1 (BNC composite); 1 HDMI (HDCP compliant) |
| VIDEO OUTPUT PORTS | 1 HDMI |
| J1939 PORTS | 1 |
| GARMIN MARINE NETWORK PORTS | 4 |
| USB PORTS | âś” |
| BLUETOOTH® CALLING | ✔ |
| ANT+ (CONNECTIVITY) | âś” |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | âś” |
Electrical Features |
|
| POWER INPUT | 10 to 35 Vdc |
| TYPICAL CURRENT DRAW AT 12 VDC | 3.9 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 4.9 A |
| MAXIMUM POWER USAGE AT 10 VDC | 59W |
Package Includes
In the Box:
- GPSMAP 8622
- Trim piece snap covers
- GPS 24xd NMEA 2000 (with pole mount, flush mount and under deck mount adapters)
- Protective cover
- Flush mount hardware
- Power cable
- NMEA 2000 2 m backbone/drop cable
- NMEA 2000 6 m backbone cable
- NMEA 2000 power cable
- NMEA 2000 T-connector & terminator kit
- Documentation
