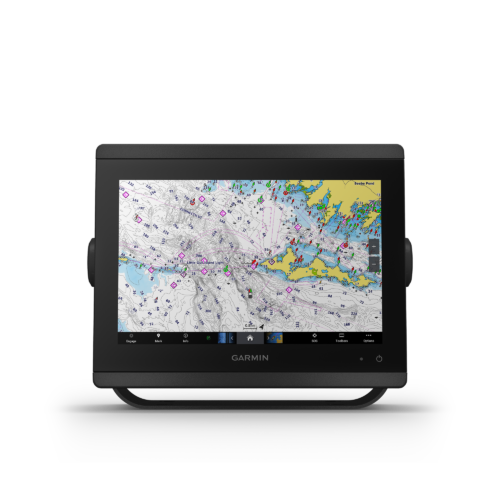

Garmin GPSMAP 8610 Specs
General |
|
| DIMENSION | 10.25″ x 8.0625″ x 2.95″ (25.9 cm x 20.5 cm x 7.5 cm) |
|---|---|
| TOUCHSCREEN | ✔ |
| INPUT | Touchscreen |
| DISPLAY SIZE | 8.6″ x 5.4″; 10.1″ diagonal (21.8 cm x 13.7 cm; 25.7 cm diagonal) |
| DISPLAY RESOLUTION | 1920 x 1200 pixels |
| DISPLAY TYPE | WUXGA, IPS |
| WEIGHT | 5.2 lbs (2.4 kg) |
| WATERPROOF | IPX7 |
| MOUNTING OPTIONS | Bail, flat or flush (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
Maps & Memory |
|
| ACCEPTS DATA CARDS | 2 microSD cards |
| WAYPOINTS | 5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
Sensors |
|
| HAS BUILT-IN RECEIVER | ✔ |
| RECEIVER | 10 Hz |
| NMEA 2000 COMPATIBLE | ✔ |
| NMEA 0183 COMPATIBLE | ✔ |
| GPS | ✔ |
| GLONASS | ✔ |
| GALILEO | ✔ |
| SUPPORTS WAAS | ✔ |
Built-in Maps |
|
| BUILT-IN AUTO GUIDANCE+ | ✔ |
| GARMIN NAVIONICS+ INLAND & COASTAL | ✔ |
| TIDE TABLES | ✔ |
Optional Map Support |
|
| GARMIN NAVIONICS+™ | ✔ |
| GARMIN NAVIONICS VISION+™ | ✔ |
| TOPO | ✔ |
| STANDARD MAPPING | ✔ |
| GARMIN QUICKDRAW CONTOURS | ✔ |
| RASTER CHART SUPPORT | ✔ |
Chartplotter Features |
|
| SMART MODE COMPATIBLE | ✔ |
| AIS | ✔ |
| DSC | ✔ |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | ✔ |
| GSD BLACK BOX SONAR SUPPORT | ✔ |
| GCV BLACK BOX SONAR SUPPORT | ✔ |
| ACTIVECAPTAIN® COMPATIBLE | ✔ |
| GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE | ✔ |
| WIRELESS REMOTE COMPATIBLE | ✔ |
| SAILING FEATURES | ✔ |
| SPOKEN AUDIO ALERTS | ✔ |
| ONEHELM SUPPORT | ✔ |
Sonar Features & Specifications |
|
| DISPLAYS SONAR | ✔ |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | yes (with GCV™ black box, sold separately) |
| CLEARVÜ | yes (with GCV™ black box, sold separately) |
| SIDEVÜ | yes (with GCV™ black box, sold separately) |
| PANOPTIX™ SONAR | ✔ |
| LIVESCOPE | ✔ |
Connections |
|
| NMEA 2000 PORTS | 1 |
| CONNECTIONS NMEA0183 INPUT PORTS | 1 |
| NMEA 0183 INPUT (TX) PORTS | 1 |
| VIDEO INPUT PORTS | 1 (BNC composite); 1 HDMI (HDCP compliant) |
| VIDEO OUTPUT PORTS | 1 HDMI |
| J1939 PORTS | 1 |
| GARMIN MARINE NETWORK PORTS | 2 |
| USB PORTS | ✔ |
| BNC EXTERNAL GPS ANTENNA PORT | ✔ |
| BLUETOOTH® PAIRING | ✔ |
| ANT+ (CONNECTIVITY) | ✔ |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | ✔ |
Electrical Features |
|
| POWER INPUT | 10 to 32 Vdc |
| TYPICAL CURRENT DRAW AT 12 VDC | 1.5 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 6.0 A |
| MAXIMUM POWER USAGE AT 10 VDC | 40.1W |
In the Box:
- GPSMAP 8610
- Power cable
- NMEA 2000® drop cable
- NMEA 2000 T-connector
- Bail mount with knobs
- Flush mount kit
- Sun cover
- Trim piece snap covers
- Documentation
