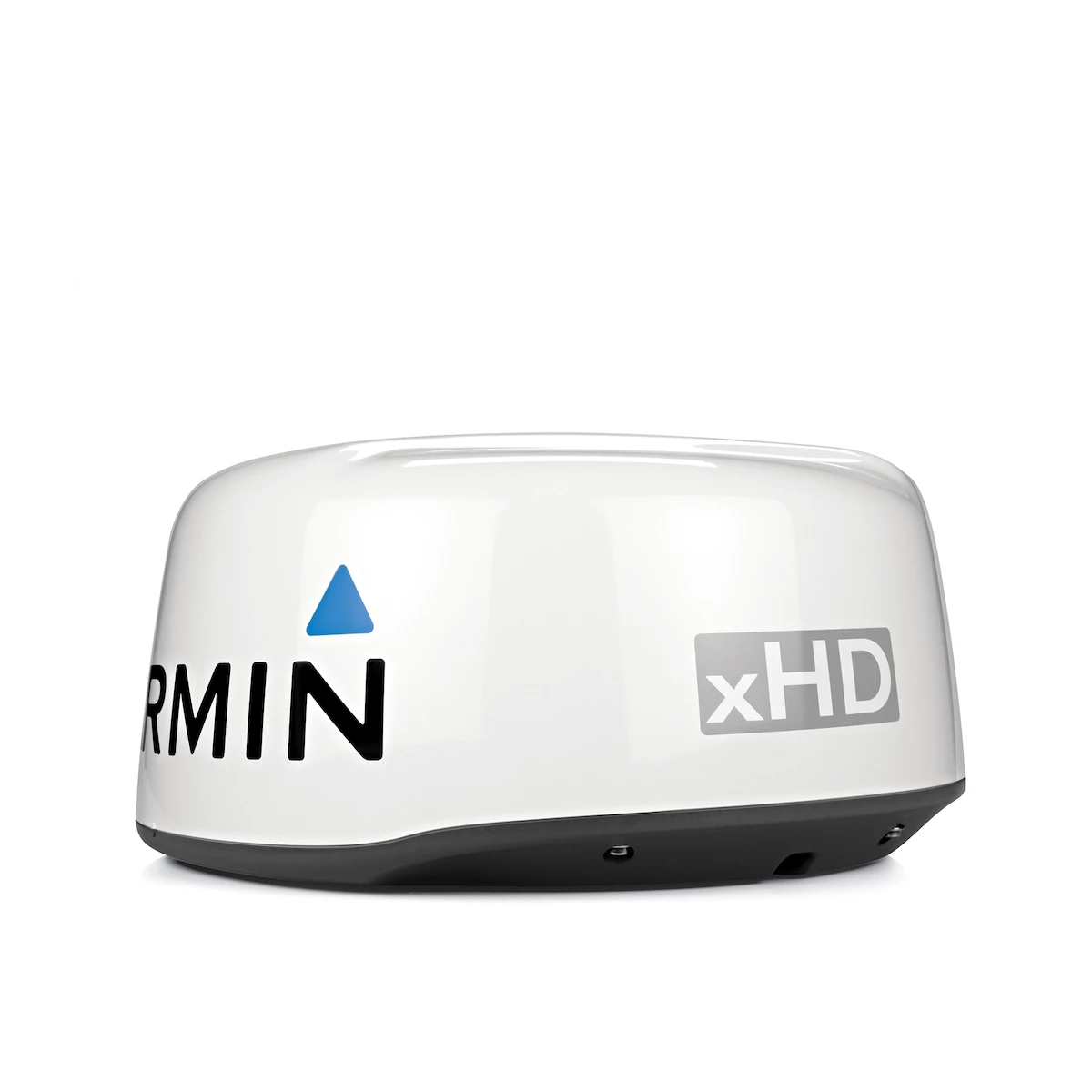

Garmin GMR 18 xHD Radome

COMPACT, HIGH-DEFINITION RADAR DOME

• 4 kW high-definition 18” dome radar
• Step up to xHD performance in a radome
• Dynamic new shape for improved look and antenna performance
• No complex user settings, easy to install and start using
• New Dynamic Auto Gain and Dynamic Sea Filter continually adjust to your surroundings to provide optimal performance in varying conditions

Garmin’s next-generation, 4 kW high-definition GMR 18 xHD dome radar pairs ease of use with advanced open-array features. Its intuitive operation makes modes and settings simple to understand so you can enjoy great performance without a lot of technical know-how.

The GMR 18 xHD delivers higher resolution than our previous generation 18” dome radars. New Dynamic Auto Gain and Dynamic Sea Filter continually adjust to your surroundings, providing optimal performance in varying conditions. Choose from multiple levels of aggressiveness or use manual gain adjustment. Dual range operation allows fully independent split-screen display of far and close radar views in full 8-bit color (select chartplotters); range of 48 nm. “No Transmit Zone” protects areas behind the radar from being radiated while providing full forward-looking radar capability. This makes installation more flexible by providing more suitable installation options on your boat.

xHD performance in a dome

High resolution (1440 display spokes vs. 720 on HD domes, draws detail down to ¼ of a degree vs. ½) to provide improved target separation and finer shoreline detail. 8-bit true color helps differentiate large targets from small ones and aids target separation.

Dual Range Operation

Simultaneously view both short and long ranges. You can keep a close eye on your immediate surroundings while also knowing what’s happening farther out. It’s like having 2 radars for the price of one.

Radar Overlay

Overlays radar returns over the top of your navigation charts to provide the best of both GPS and radar. You’ll have greater confidence in the accuracy of your charts when the radar paints the same markers and shorelines. It also helps you discern which radar returns are known charted objects and which are boats or other collision threats.

Dynamic Auto Gain and Sea Filter

Automatically adjusts to your surroundings for optimal performance in all conditions. Dynamic Auto Gain maximizes your ability to see distant targets while limiting excess clutter on the screen. Dynamic Sea Filter reduces the returns caused by nearby waves in heavy seas. You can choose from multiple levels of aggressiveness or use manual gain adjustment.

Mini-Automatic Radar Plotting Aid (MARPA)

Identify and track targets that might pose a collision threat. Targets are manually selected, but then the radar automatically tracks their location, speed, and direction over time. MARPA tells you the closest point of approach and time to that point if you continue on your current route so you can make adjustments for safety. It also alerts you when targets become dangerous or violate a safe proximity of your boat.
