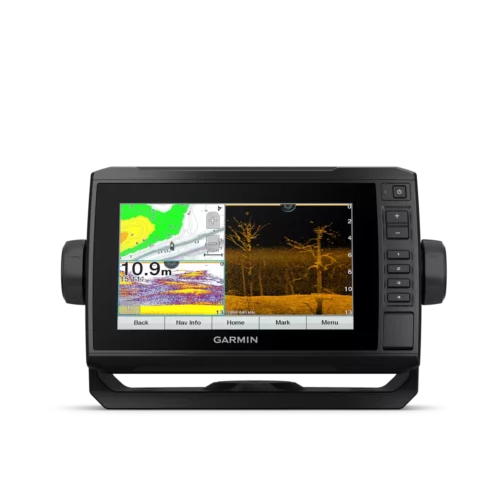

Garmin ECHOMAP UHD 75cv
This item has been discontinued and is replaced by the Garmin ECHOMAP 75cv UHD2 (010-02596-50)
JOIN THE CLUB. FIND MORE FISH.
The sunlight-readable 7” touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.
- Bright, sunlight-readable 7 ” combo
- Includes transducer for Garmin that provides the highest resolution ClearVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar (in transducer models)
- Preloaded maps of Canada LakeVü g3 maps with integrated Navionics® data cover more than 13,500 lakes with up to 1’ contours
- Built-in Garmin Quickdraw™ Contours mapping software instantly creates personalized fishing maps on-screen with 1’ contours as you fish
- Use built-in Wi-Fi® to pair with the free ActiveCaptain™ app for access to OneChart™, smart notifications, Garmin Quickdraw™ Community data and more
- Share waypoints and routes with other ECHOMAP™ or STRIKER™ units
Sonar Support
This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.
Transducer Bundle
This transducer bundle comes with a GT24 transducer for Ultra High-Definition ClearVü scanning sonar, which shows you a crystal-clear image below your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.
Optional Charts and Maps
Experience unparalleled coverage and detail with support for optional BlueChart® g3 Vision coastal charts featuring integrated Garmin and Navionics® content.
Quickdraw Contours to Create Your Own Maps
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.
Network Capable
If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, you can share information — such as sonar, user data and charts — among them (7” and 9” models only).
NMEA 2000 and NMEA 0183 Networks
Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen.
ActiveCaptain APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications1, software updates, Garmin Quickdraw™ Community data and more.
FORCE™ TROLLING MOTOR COMPATIBILITY
Take control of the most powerful and efficient trolling motor available, route it to waypoints, follow tracks and more from the screen of your chartplotter.
| Weight | 6.61 lbs |
|---|---|
| Dimensions | 13.25 × 8.25 × 10 in |
| Brand | Garmin |
Product Specifications
General |
|
| PHYSICAL DIMENSIONS | 9.8″ x 5.5″ x 2.0″ (25 x 13.9 x 5.1 cm) |
|---|---|
| TOUCHSCREEN | ✔ |
| KEYED ASSIST BUTTONS | ✔ |
| DISPLAY SIZE | 6.1″ x 3.4″; 7.0″ diagonal (15.5 x 8.6 cm; 17.8 cm diagonal) |
| DISPLAY RESOLUTION | 800 x 480 pixels |
| DISPLAY TYPE | WVGA, NP |
| WEIGHT | 1.7 lbs (0.77 kg) |
| WATER RATING | IPX7 |
| MOUNTING OPTIONS | Bail or flush |
Maps & Memory |
|
| CARD SLOTS | 1 microSD card; 32 GB maximum size |
| WAYPOINTS | 5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| ROUTES | 100 |
Sensors |
|
| HAS BUILT-IN RECEIVER | ✔ |
| BUILT-IN RECEIVER HZ | 5 Hz |
| NMEA 2000® COMPATIBLE | ✔ |
| NMEA 0183 COMPATIBLE | ✔ |
| GPS | ✔ |
| SUPPORTS WAAS | ✔ |
Built-in Maps |
|
| LAKEVÜ (INLAND) | ✔ |
| TIDE TABLES | ✔ |
Optional Map Support |
|
| BLUECHART® G3 | ✔ |
| BLUECHART® G3 VISION® | ✔ |
| LAKEVÜ G3 | ✔ |
| LAKEVÜ G3 ULTRA | ✔ |
| TOPO | ✔ |
| STANDARD MAPPING® | ✔ |
| GARMIN QUICKDRAW™ CONTOURS | ✔ |
Chartplotter Features |
|
| SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) | ✔ |
| SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) | ✔ |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | ✔ |
| ACTIVECAPTAIN COMPATIBLE | yes |
| WIRELESS REMOTE COMPATIBLE | ✔ |
| SAILING FEATURES | ✔ |
Sonar Features & Specifications |
|
| DISPLAYS SONAR | ✔ |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | ✔ |
| CLEARVÜ | yes with CHIRP (built-in) |
| PANOPTIX™ ALL-SEEING SONAR | ✔ |
| LIVESCOPE | ✔ |
Connections |
|
| NMEA 2000® PORTS | 1 |
| NMEA 0183 INPUT (RX) PORTS | 1 |
| NMEA 0183 INPUT (TX) PORTS | 1 |
| GARMIN MARINE NETWORK™ PORTS | 1 Panoptix™ port |
| 12-PIN TRANSDUCER PORTS | 1 |
Electrical Features |
|
| POWER INPUT | 9 to 18 Vdc |
| TYPICAL CURRENT DRAW AT 12 VDC | 0.8 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 1.25 A |
| MAXIMUM POWER USAGE AT 10 VDC | 15W |
Package Includes
In the Box:
- ECHOMAP UHD 75cv pre-loaded with LakeVü g3 for Canada mapping: Covering Alberta, British Columbia, Ontario, Saskatchewan, Quebec and the Yukon Territory. Coverage includes the Great Lakes, the St. Lawrence Seaway and the Lake of the Woods. Hudson Bay is not included.
- GT24UHD-TM transducer
- Power/data cable
- Tilt/swivel mount with quick release cradle
- Flush mount
- Protective cover
- Hardware
- Documentation
