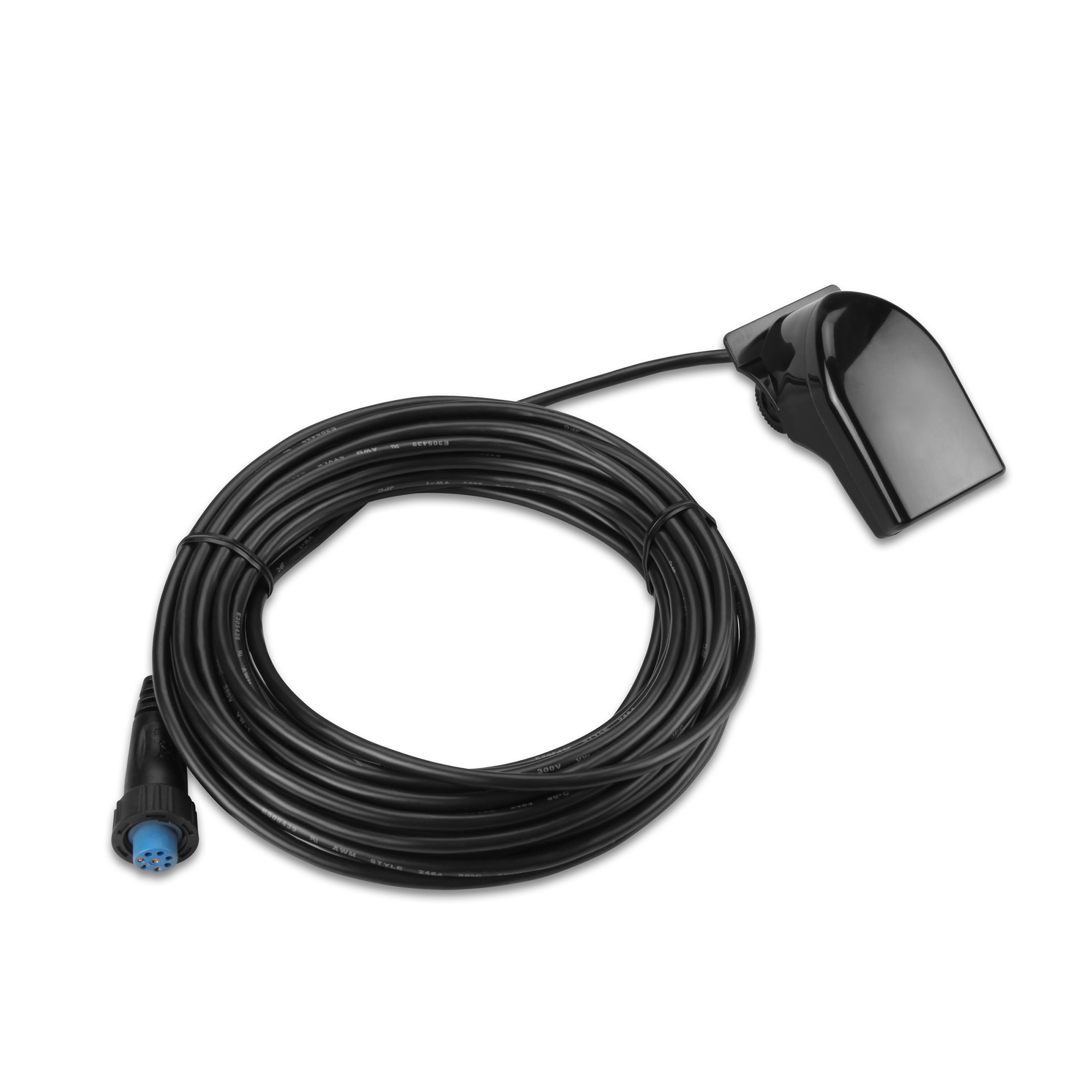

Garmin Dual Beam Transducer (8-pin)
MPN: 010-10249-40
$109.99
This dual beam transducer replaces the one included with your echo™ series fishfinder.
Out of Stock (On Order)
This dual beam transducer replaces the one included with your echo™ series fishfinder.
A 500 W 8-pin transducer, it has an operating frequency of 77/200 kHz; a beamwidth of 45/15 degrees; and mounts on a 0 to 70 degree transom.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
| Weight | 0.81 lbs |
|---|---|
| Dimensions | 6 × 4 × 2 in |
| Brand | Garmin |
Product Specifications
| FREQUENCY | 77/200 kHz |
|---|---|
| POWER | 500 W |
| BEAMWIDTH | 45°/15° |
| MAXIMUM DEPTH | 1,900 ft. |
| DEPTH/SPEED/TEMPERATURE | Depth and Temperature |
| NUMBER OF PINS | 8-pin |
| CABLE LENGTH | 30 ft. |
| SUPPORTED DEADRISE/TRANSOM ANGLES | 0°-70° degree transom |
